Toyota RAV4 Wiper Motor Guide for 2001-2012 Models
Everything a RAV4 owner needs to know before replacing a failing front wiper motor.
- For 2009-2012 RAV4s, check if the wiper linkage recall (NHTSA #15V577) was performed, as it can cause total wiper failure.
- Symptoms like wipers only working on high speed or not parking correctly are strong indicators of a failing motor.
- This is a DIY-friendly repair; just remember to mark your wiper positions and test the new motor's park position before full assembly.
- While budget brands are available, a mid-tier aftermarket motor offers a better balance of price and reliability for this essential safety part.
Is Your RAV4 Wiper Motor Failing?
A failing wiper motor rarely quits without warning. For RAV4 owners, the signs are usually noticeable and shouldn't be ignored. If you experience any of these issues, it's time to inspect the wiper system.
🎬 Learn how to quickly swap out your front wiper blades.Common Failure Symptoms
- Slow or Erratic Wipers: The wipers move much slower than usual, even on the high setting, or they seem to speed up and slow down randomly.
- Only One Speed Works: Often, the motor will only operate on the fastest setting, while the slower, intermittent settings stop working.
- Wipers Won't 'Park' Correctly: After you turn them off, the wipers stop in the middle of the windshield instead of returning to their resting position at the base. One 2012 RAV4 owner specifically reported this problem as the park position gradually crept higher up the windshield.
- No Movement at All: You turn the wipers on and nothing happens. You might hear a faint humming or buzzing sound from the motor area, which means it's getting power but can't move.
- Grinding or Squealing Noises: Any unusual noises when the wipers are activated point to internal wear or damage within the motor.
Known Issues: 2009-2012 RAV4 Wiper Linkage Recall
Important Recall Information for 2009-2012 RAV4 Owners
Toyota issued a major safety recall (NHTSA #15V577) for approximately 421,000 RAV4s from the 2009-2012 model years. The issue was that water could drip onto the wiper linkage, causing corrosion. This could make the linkage arm separate from the motor, causing the wipers to fail completely. The dealer remedy involved replacing the water channel and the wiper linkage components. While this recall didn't replace the motor itself, it addressed the critical connection to it. If you own a RAV4 from this period, it is crucial to verify if this recall service was performed.
Choosing the Right Aftermarket Wiper Motor
When replacing your wiper motor, you don't have to buy the expensive OEM part from a dealer. Quality aftermarket parts can provide the same performance for a fraction of the cost. Here’s a look at the available brands.
Brand Tiers for Your RAV4:
- Premium Aftermarket (e.g., Cardone New): Brands like Cardone are well-established in the aftermarket. They often offer newly manufactured parts, not just remanufactured ones, that are engineered to meet or exceed original standards. They sometimes redesign parts to fix the original flaws. While generally reliable, quality can sometimes be inconsistent, as with any mass-produced part.

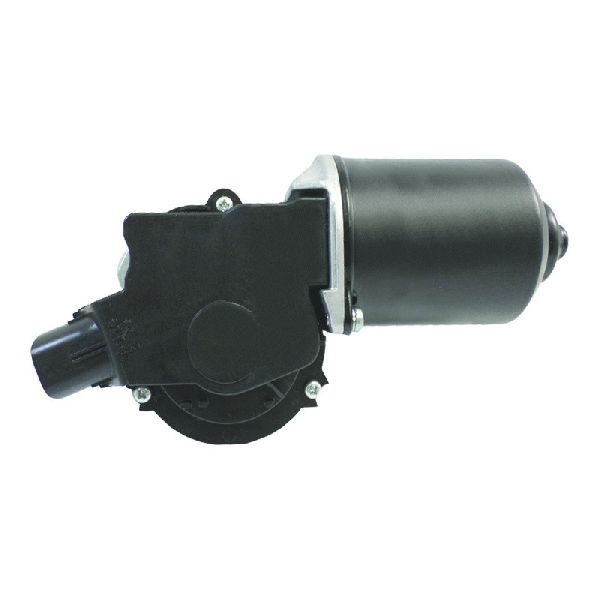

- Standard/Value (e.g., WAI Global, Replacement): These brands offer a cost-effective solution. WAI Global is a known producer of automotive electrical parts. However, some mechanics and DIYers have reported issues with fitment or longevity with value-tier brands, including incorrect 'park' positions. A 'Replacement' branded part is typically a direct copy of the original, designed to fit and function correctly at the lowest price point. For a critical safety part like a wiper motor, be sure to check warranty and return policies when choosing a value option.
Pro Tip: Regardless of the brand you choose, test the motor before you fully install it. Connect the new motor to the wiring harness, turn the key on, and cycle the wipers on and then off. This ensures the motor stops in its correct 'park' position before you connect it to the wiper linkage.
Cost of Replacing a 2001-2012 RAV4 Wiper Motor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Wiper Motor | $79 - $373 |
| New OEM Wiper Motor | $175 - $285 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement (Aftermarket) | $179 - $573 |
Cost estimates are based on a combination of provided price ranges and online research. Prices will vary based on your location, vehicle, and chosen parts supplier.
Frequently Asked Questions
Is replacing the wiper motor a good DIY job?

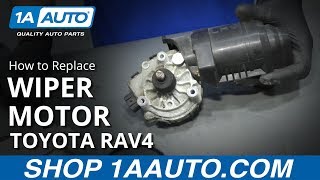

Yes, for most home mechanics with a basic toolset, this is a manageable job that takes about 1-2 hours. 🎬 Watch this step-by-step guide to replacing your wiper motor. The process involves removing the wiper arms 🎬 See how to safely remove the wiper arms first. and the plastic cowl panel below the windshield to access the motor. The most important step is ensuring the new motor is in the 'park' position before attaching the linkage.
My 2010 RAV4's wipers stopped. Is it the recall?
It could be related. The recall for 2009-2012 models was for the linkage failing due to corrosion, which would cause the wipers to stop working. If the linkage arm has popped off the motor, that is the likely cause. If the linkage is intact but the motor makes no noise or just hums, the motor itself has likely failed.
What's the difference between the wiper motor and the wiper linkage?
The wiper motor is the electrical component that creates the rotational force. The wiper linkage (or transmission) is a set of arms and pivots that connects to the motor and converts its rotation into the synchronized, back-and-forth sweep of the two wiper arms on your windshield. They are separate parts but work together.
Should I buy a cheap wiper motor?
While budget-friendly options are tempting, a wiper motor is a critical safety component. A cheap motor might fail prematurely or have an incorrect park position. A mid-tier aftermarket brand often provides a good balance of quality and value. Reading reviews for the specific part number you're considering is always a good idea.
Helpful Videos
Technical Specifications
OEM Part Numbers: 85110-42130 85110-0R011 85110-42150 85110-42151 85110-0R010
This is the front windshield wiper motor. It typically includes the motor and a gear for attaching to the wiper linkage. The electrical connector is a 5-pin blade type. The motor assembly is held in place by three bolts. Part numbers may vary between the 2001-2005 (XA20) and 2006-2012 (XA30) generations.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
