Ford Escape A/C O-Ring and Gasket Kit Guide for 2001-2013 Models
Leaking refrigerant is the most common reason for your Escape's A/C to stop blowing cold.
- A refrigerant leak from a failed O-ring is the most common cause of A/C failure in the 2001-2013 Escape.
- Always replace O-rings and the receiver/drier when the A/C system is opened for any repair.
- Motorcraft (OEM) seals are the safest choice for guaranteed fit; some aftermarket seals may not seal properly.
- Replacing A/C seals requires specialized equipment to evacuate and recharge the system, making it a job for a professional or advanced DIYer.
Is Your Escape's A/C Blowing Warm Air?
If your air conditioning suddenly isn't cold, the first and most common suspect is a refrigerant leak. The seals in the A/C system harden and crack over time, leading to these leaks. While a rock can puncture a condenser, the most frequent failure points are the O-rings at the connections for the A/C compressor and condenser.
Symptoms of a Failing A/C O-Ring or Gasket:
- Weak or No Cold Air: The most obvious symptom. The system can't build pressure without enough refrigerant.
- A/C Works Intermittently: The system might cool for a short while after a recharge, then stop working again as the refrigerant leaks out.
- Hissing Noise From Dash or Engine Bay: A hissing sound can sometimes be heard as the pressurized refrigerant escapes through a crack in a seal.
- Visible Green or Yellow Dye: Mechanics often inject a UV dye to find leaks. You may see this glowing residue around A/C line connections. 🎬 Watch: Three ways to find refrigerant leaks in your Escape.
Choosing the Right Aftermarket O-Ring Kit
When you open the A/C system for any repair, like replacing a compressor or condenser, you must replace the O-rings at any connection you disconnect. Reusing old seals is a guaranteed way to cause a leak. Here’s a breakdown of the available brands.
Brand Quality Tiers
- OEM (Motorcraft): This is the factory part. Motorcraft seals are recommended by Ford and are guaranteed to fit perfectly. Some mechanics report that aftermarket O-rings can be slightly different in size or thickness, failing to create a proper seal. If you want to do the job once and be sure of the fit, Motorcraft is the safest choice.
- Premium Aftermarket (Global Parts, Four Seasons): Brands like GPD (Global Parts) and Four Seasons offer complete kits that are a good value. They are designed to meet or exceed original specifications. However, owner feedback on Four Seasons is mixed; some find their parts to be a great alternative, while others have had issues with quality. For a simple part like an O-ring kit, the risk is lower than with a complex part like a compressor.
Warning: Fitment is Everything
Some Ford Escape owners have found that aftermarket O-rings, even when listed for the vehicle, do not provide as snug a fit as the original Motorcraft seals. This can cause the system to fail a vacuum test and lead to a slow leak after it's recharged. Test-fitting the O-ring on the component before installation is a wise step.
Known Issues for the 2001-2013 Ford Escape
While there are no recalls specifically for the A/C O-rings on these models, a notable Technical Service Bulletin (TSB) affects the 2013 model year.
- TSB 19-2287 (for 2013 Escape w/ 1.6L Engine): This bulletin addresses an issue where the A/C inlet line can break at the compressor. This is caused by pressure from nearby oil cooler lines. The fix involves replacing the line and installing a support clip. If you have a 2013 1.6L model with a leak at the compressor, this TSB is highly relevant.
Pro-Tip for A/C Repairs
Anytime you open the A/C system to the atmosphere, you must also replace the receiver/drier (or accumulator). This component contains a desiccant that absorbs moisture from the system. Once exposed to air, it becomes saturated and useless. Also, always lubricate new O-rings with the correct type of PAG oil before installation to ensure a proper seal and prevent tearing.
🎬 See how to properly replace O-rings and compressor gasket seals.Cost to Replace Ford Escape A/C O-Rings
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket O-Ring Kit | $6.88 - $48.42 |
| New OEM (Motorcraft) O-Ring Kit | $25 - $60 |
| Shop Labor (Evacuate, Replace Seals, Recharge) | $150 - $300 |
Frequently Asked Questions
Can I just top off my refrigerant instead of fixing the leak?
You can, but it's a temporary fix and environmentally irresponsible. The refrigerant will just leak out again. The system will continue to perform poorly and the leak will likely worsen over time.
Do I need special tools to replace A/C O-rings?
While replacing the O-ring itself is simple, the full job requires an A/C manifold gauge set to monitor pressures and a vacuum pump to remove all air and moisture before recharging. Handling refrigerant also requires EPA certification. For most DIY mechanics, this job is best left to a professional shop.
Why did my A/C stop working a week after a shop recharged it?
This is a classic sign of a small leak. The new charge of refrigerant worked until enough of it escaped to drop the system pressure too low for the compressor to operate. The source of the leak, likely a bad O-ring or a hole in the condenser, was never repaired.
🎬 Watch this walkthrough on replacing a leaking Ford Escape condenser.Should I replace all the O-rings at once?
If you are replacing a major component like the compressor, it is best practice to replace every O-ring that you disconnect. The kits are inexpensive, and it's cheap insurance against having to open the system again for another leak.
Helpful Videos
Technical Specifications
OEM Part Numbers: YF37424 6E5Z19B596A YF37294 YF3534

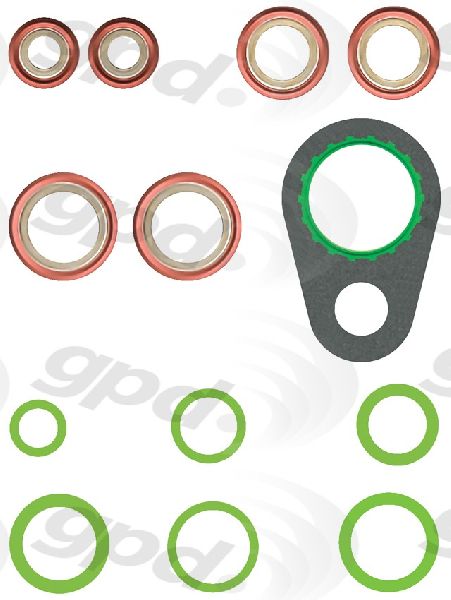

Kits contain various sizes of HNBR (Green) rubber O-rings and sometimes metal/rubber gaskets. O-rings are compatible with R134a refrigerant and PAG oil.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
