Ford Escape Suspension Strut and Coil Spring Assembly Guide (2001-2013)
Everything you need to know before replacing the struts on your 2001-2013 Ford Escape.
- Crucially inspect for strut tower rust on 2001-2007 models before purchasing parts; this is a major safety issue.
- Replacing the complete strut assembly is safer and more effective than replacing just the bare strut.
- Always replace struts in pairs (front or rear) to maintain vehicle stability.
- A wheel alignment is mandatory after replacing front struts to prevent tire damage and handling issues.
Is Your Ford Escape's Ride Not What It Used to Be?
If you're noticing your 2001-2013 Ford Escape is bouncing excessively over bumps, making clunking noises, or the steering feels loose, it might be time to look at your suspension. The complete strut and coil spring assembly is a common wear item, and replacing it can bring back the ride quality and safety you expect from your SUV. These parts typically last between 50,000 and 100,000 miles, depending on your driving conditions.
Known Issue: Strut Tower and Subframe Rust
First-generation Ford Escapes (2001-2007), especially those in regions where road salt is used, are known for severe rust problems in the rear shock tower area and the front subframe. In some cases, the shock tower can rust through completely, detaching from the vehicle's frame. Ford issued a recall for 2001-2004 models for a related issue where the lower control arm could separate from a rusted subframe. Before replacing your struts, it is critical to inspect the strut mounting points on the body for significant rust. If you find heavy corrosion, this is a serious safety issue that needs to be addressed by a professional body shop before new struts are installed. Repair panels are available for this common problem.

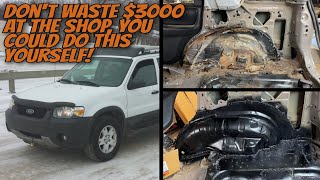

🎬 See this step-by-step guide on repairing rusted shock towersSymptoms of a Failing Strut Assembly
When your struts are worn, your Escape will give you several warning signs. Ignoring them can lead to poor handling and reduced safety. Look out for:
🎬 Watch: 5 symptoms of bad struts you should not ignore- Bouncy Ride: The vehicle continues to bounce up and down after hitting a bump.
- Unusual Noises: A clunking, knocking, or rattling sound when driving over bumps is a common sign.
- Nose-Diving or Squatting: The front end of the Escape dips down hard when you brake, or the rear end squats when you accelerate.
- Uneven Tire Wear: Look for "cupping," which appears as scalloped dips on the tread of your tires.
- Leaking Fluid: Visible oil or fluid leaking from the strut body indicates the internal seals have failed.
Choosing the Right Aftermarket Strut Assembly
Replacing the entire strut and coil spring assembly (often called a "quick strut" or "loaded strut") is highly recommended. It's safer and easier than disassembling the old strut to reuse the spring. You get a new strut, spring, mount, and boot all in one piece, which restores the original ride height and performance.
Here’s a breakdown of available aftermarket brands:
- Premium Tier (KYB, Monroe): These brands are well-regarded in the aftermarket. KYB is a major OEM supplier and is often praised for providing a ride quality similar to or slightly firmer than the original parts. Monroe is another trusted name, known for its OESpectrum and Quick-Strut lines that focus on restoring original ride characteristics, though some users find them softer than KYB.
- Standard/Economy Tier (FCS, Unity, PRT): These brands offer a more budget-friendly option. They are a practical choice for older, higher-mileage vehicles where a complete restoration to factory performance isn't the main goal. While they get the job done, some professional mechanics and users report a difference in ride quality and longevity compared to premium brands.
- OEM Supplier (Mando): Mando is a large original equipment manufacturer for many car brands. While less common in the Ford aftermarket, their parts are generally built to OEM specifications and can be a solid choice if available for your vehicle.
Pro Tip: Replace in Pairs
Always replace struts in pairs (both front struts or both rear struts) to ensure even handling and stability. 🎬 Watch: How to perform a rear shock replacement procedure After replacement, it is essential to get a professional wheel alignment to prevent uneven tire wear and ensure proper handling.
Cost of Replacing Ford Escape Strut Assemblies
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Assembly (Single) | $102.55 - $238.79 |
| Shop Labor (Per Pair) | $200 - $500 |
| Wheel Alignment | $80 - $150 |
| Total Job (DIY Parts Only, Pair) | $205 - $478 |
| Total Job (Shop Installed, Pair) | $405 - $978 + Alignment |
Frequently Asked Questions
What's the difference between a bare strut and a complete assembly?
A bare strut is just the shock-absorbing tube. A complete assembly includes the bare strut, coil spring, top mount, bearing plate, and dust boot. Buying a complete assembly is safer because you don't need to use a dangerous spring compressor tool, and it ensures all related components are new.
Do I need an alignment after replacing my struts?
Yes. Replacing the front struts will always change the suspension geometry. A wheel alignment is required to correct the camber and toe settings, prevent rapid tire wear, and ensure the vehicle drives straight.
Can I replace just one strut?
It is strongly recommended to replace struts in pairs (both front or both rear). Replacing only one can cause an imbalance in handling, making the vehicle unpredictable and potentially unsafe, especially in emergency maneuvers.
How can I check for the strut tower rust issue?
You can inspect the rear wheel wells. Look at the top of the wheel arch from inside the well. You will see the area where the top of the shock/strut assembly mounts to the body. Look for bubbling paint, flaking metal, and holes. You can also check from inside the cargo area by removing the side trim panels to see the top of the strut towers. If you see significant rust, have it inspected by a professional immediately.
Helpful Videos
Technical Specifications
OEM Part Numbers: YL8Z18124DA 7L8Z18124R 8L8Z18124R 8L8Z18124L AL8Z18124A BL8Z18124A
This guide covers the front and rear complete strut assemblies for the 2001-2013 Ford Escape platform, which includes the Mazda Tribute (2001-2011) and Mercury Mariner (2005-2011). The 2013 Ford Escape was a new generation and uses different parts; this guide applies to the previous platform which was also sold in 2012.
