Acura MDX A/C Receiver Drier and Desiccant Guide (2001-2014)
If your MDX's air conditioning is blowing warm, this small but critical part could be the reason why.
- Must be replaced any time the A/C system is opened for repairs, like a compressor replacement.
- For 2007-2014 models, the drier is integrated with the condenser and sold as one assembly.
- Replacement is not a DIY job; it requires special equipment to handle refrigerant.
- The primary symptom of failure is poor or intermittent cooling from the A/C vents.
Understanding Your MDX's A/C Drier
When your Acura MDX's air conditioning stops blowing cold, many drivers suspect a refrigerant leak. However, the A/C receiver drier is a common failure point that is often overlooked. This component is essential for protecting your entire A/C system. It is a service item that should be replaced whenever you replace a major component like the compressor or condenser to prevent future problems and validate warranties.
Is Your A/C Receiver Drier Failing?
A bad receiver drier often shows symptoms that can be mistaken for other A/C problems. Look out for these common signs:
- Poor or No Cooling: The most obvious symptom is warm or barely cool air coming from the vents, even when the A/C is on full blast.
- Intermittent Cooling: The A/C might blow cold for a few minutes and then switch to warm air before becoming cold again.
- Musty Smell: If the desiccant material is saturated, it can't absorb moisture, leading to mold or mildew growth in the system that causes a foul odor.
- Visible Leaks: While rare for the drier itself to leak, oily residue around A/C line connections near the drier can indicate a problem.
Generation Differences: A Critical Ordering Note
The A/C receiver drier for the Acura MDX is different depending on the model year. Ordering the wrong part is a common mistake.

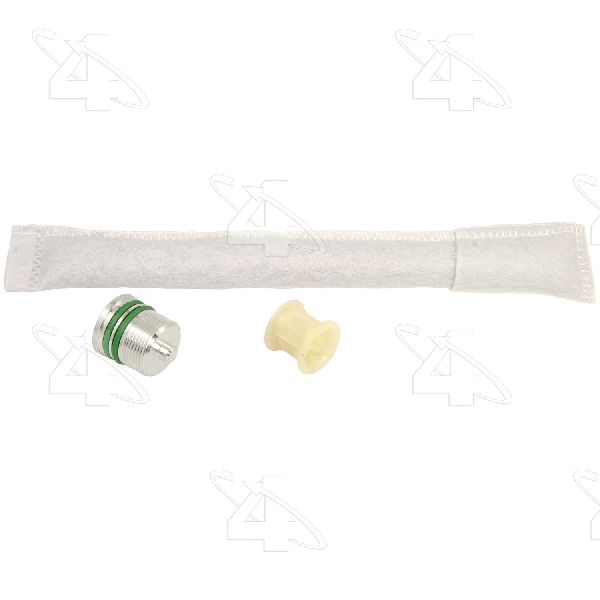

- 2001-2006 (First Generation): On these models, the receiver drier is typically integrated into the A/C condenser, but the desiccant element (the bag inside) can sometimes be purchased and replaced separately. Many aftermarket parts are sold as a complete condenser and drier assembly.
- 2007-2014 (Second Generation): For these years, the part is almost always sold as a complete A/C condenser and receiver drier assembly. The desiccant bag is housed in a tube on the side of the condenser and is not typically serviced on its own; the entire condenser unit is replaced.
Choosing the Right Aftermarket Drier
For a service part like a receiver drier, aftermarket options from reputable brands offer a good balance of quality and value. Since the part must be replaced any time the system is opened, using a new aftermarket unit is standard practice in many repair shops.
- Four Seasons: A well-known aftermarket brand that produces a wide range of A/C components. Their desiccant bag kits and drier assemblies are designed to meet OEM specifications and often include the necessary O-rings for installation.
- Global Parts Distributors (GPD): Another major supplier of aftermarket A/C parts. GPD offers direct-fit receiver drier kits and assemblies that are durability tested.
Pro Tip: Quality is less about the brand and more about the part being new and sealed. The desiccant inside absorbs moisture from the air. A drier that has been left open to the atmosphere for even a few hours can become saturated and useless.
A/C Receiver Drier Replacement Cost for Acura MDX
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $13 - $50 |
| New OEM Part | $142 - $347 |
| Shop Labor & System Recharge | $227 - $376 |
| Total Estimated Replacement | $245 - $723 |
Note: Costs are estimates and can vary based on your location and specific vehicle model year. The total cost is higher for 2007-2014 models due to the integrated condenser/drier design.
Frequently Asked Questions
Why do I have to replace the drier when replacing my A/C compressor?
When a compressor fails, it often sends tiny metal particles and debris throughout the A/C system. The receiver/drier traps this debris. If you install a new compressor without changing the drier, that trapped debris can break free and destroy the new compressor. For this reason, most compressor warranties are void if the drier is not replaced at the same time.
Can I replace just the desiccant bag instead of the whole assembly?
For 2001-2006 models, kits are available to replace only the desiccant bag. For 2007-2014 models, the common repair is to replace the entire condenser/drier assembly, as servicing the bag alone is more difficult and often not recommended.
Is replacing the A/C receiver drier a DIY job?
No, this is not recommended for DIY mechanics unless you have the proper equipment. The job requires recovering refrigerant from the A/C system before starting and then vacuuming and recharging the system with a precise amount of refrigerant and oil afterward. Failure to do this correctly can result in poor performance or damage to the A/C system.
Are there any recalls for the Acura MDX A/C drier?
There are no specific recalls for the A/C receiver drier on 2001-2014 models. However, a recall was issued for 2014-2015 MDX models concerning an A/C compressor clutch bolt that could break. This issue could cause a failure that would require the A/C system to be opened, necessitating a drier replacement during the repair.
Technical Specifications
OEM Part Numbers: 80100-S3V-305 80100-S3V-306 80100-S3V-A11 80110-STX-A01
For 2001-2006 models, the part may be a standalone desiccant bag or an integrated condenser/drier assembly. For 2007-2014 models, it is an integrated condenser/drier assembly.
