Acura MDX (2001-2015) Transmission Output Shaft Speed Sensor Guide
If your MDX is shifting harshly or the 'D' light is flashing, the output speed sensor could be the culprit.
- A faulty output speed sensor is a common cause of harsh shifting and a flashing 'D' light on the 2001-2015 MDX.
- For 2001-2005 models, be aware that shifting problems can also indicate major internal transmission failure, not just a bad sensor.
- Replacement is a DIY-friendly job, requiring basic tools and access from underneath the vehicle.
- Use a quality aftermarket brand like NGK/NTK or Standard Ignition for a reliable repair without the OEM price tag.
Understanding Transmission Speed Sensor Failure in the Acura MDX
The 2001-2015 Acura MDX relies on two key sensors for proper transmission function: the input and output speed sensors. The output shaft speed sensor, specifically, tells the vehicle's computer how fast you are going, which is essential for smooth gear changes. When this sensor fails, it can cause symptoms that many owners mistake for a major transmission failure, leading to expensive and unnecessary repair quotes.
First vs. Second Generation MDX: Known Issues
It's important to know that early first-generation MDX models (2001-2005) are known for significant transmission problems, often leading to complete failure. While a faulty speed sensor can cause shifting issues, owners of these earlier models should be aware that a sensor replacement might not solve deeper, mechanical transmission problems. In some cases on these early models, a failing internal transmission bearing can damage the speed sensor, indicating a much larger problem that requires a transmission rebuild. Second-generation models (2007-2013) and the early third-gen (2014-2015) have more reliable transmissions, but are still prone to sensor failures that cause drivability issues.
Common Symptoms of a Failing Output Speed Sensor
- Harsh or Erratic Shifting: The most common symptom. The transmission may slam into gear, hesitate, or refuse to shift.
- Flashing "D" Gear Indicator Light: This is a clear sign the transmission computer has detected a fault.
- Inaccurate or Dead Speedometer: The speedometer needle may jump around, read incorrectly, or not move at all.
- Check Engine Light: A bad sensor will often trigger a Check Engine Light with codes like P0720, P0722, or P0723.
- Cruise Control Not Working: The cruise control system relies on accurate speed data from this sensor to function.
Choosing the Right Aftermarket Sensor: OEM vs. Aftermarket
When replacing this sensor, you have options. While an OEM (Original Equipment Manufacturer) part from Acura is always a safe bet, quality aftermarket brands can offer similar performance for less money. For a critical sensor like this, it is wise to stick with reputable brands.
- NGK (NTK): NGK, which markets sensors under the NTK brand, is a well-respected OE supplier for many automakers. Their sensors are known for high quality and reliability, making them a top-tier aftermarket choice.
- Standard Ignition (Standard Motor Products): Standard is a long-standing aftermarket brand that produces reliable, direct-fit replacement parts. They are a solid choice for owners looking for a balance of quality and value.
Pro Tip: Your MDX has both an input and an output speed sensor. They look similar but are not interchangeable. 🎬 Watch: How to replace the input speed sensor on your MDX The output sensor is typically located on the driver's side of the transmission. Always confirm the diagnostic trouble code to ensure you are replacing the correct sensor.
Cost to Replace an Acura MDX Output Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (NGK, Standard) | $65 - $98 |
| New OEM (Acura) | $120 - $175 |
| Shop Labor | $81 - $119 |
| Total Professional Replacement (Aftermarket Part) | $146 - $217 |
*Cost estimates are based on national averages and may vary by location and vehicle model year.
Frequently Asked Questions (FAQ)
Can I replace the MDX output speed sensor myself?
Yes, this is a feasible DIY job for many owners. The sensor is located on the outside of the transmission and is typically held in by a single 10mm bolt. Access usually involves removing a lower splash shield. The main challenge is working in a tight space. 🎬 See this step-by-step guide to replacing the output speed sensor Ensure the area is clean before removing the old sensor to prevent dirt from entering the transmission.
Was there a recall for the Acura MDX speed sensor?
No, there have been no specific recalls from the NHTSA for the transmission speed sensors on the 2001-2015 Acura MDX. However, there have been numerous recalls and TSBs for other transmission-related issues, especially on early models.
What's the difference between the input and output speed sensor?
The input sensor measures the speed of the transmission's input shaft (how fast power is coming from the engine), while the output sensor measures the speed of the output shaft (how fast power is going to the wheels). They are located in different spots on the transmission and are not interchangeable. Diagnostic codes will specify which sensor has failed (e.g., P0717 for input, P0720 for output).
Will a new sensor fix my MDX's transmission problems?
If the diagnostic codes point to a failed output speed sensor, then replacement will likely fix the erratic shifting, speedometer issues, and flashing 'D' light. However, on first-generation models (2001-2005), these symptoms can also be early signs of total transmission failure. If the sensor tip is physically damaged upon removal, it could indicate a severe internal transmission problem.
Helpful Videos
Technical Specifications

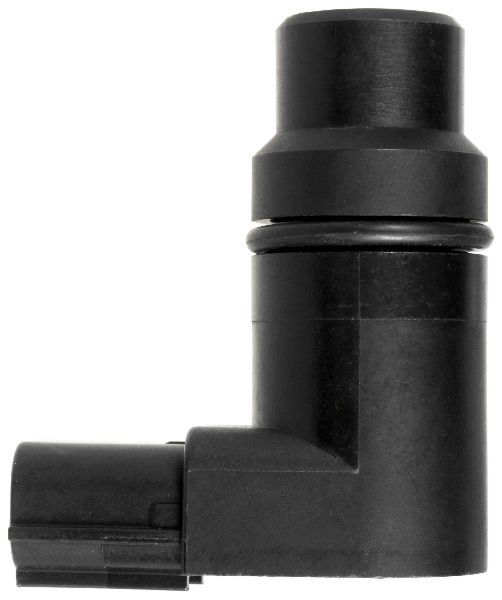

OEM Part Numbers: 28810-PCJ-014 28820-PCJ-014 28810-P7W-004 28810-R90-013
The sensor is a magnetic pickup that reads the rotation of a reluctor wheel on the transmission's output shaft. It is typically held in place by a single 10mm bolt and sealed with an O-ring.
