Dodge Grand Caravan (2001-2020) Engine Crankshaft Position Sensor Guide
Experiencing stalling or a no-start condition in your Grand Caravan? Your crankshaft position sensor might be the culprit.
- A failing crankshaft sensor is a common cause of no-start, stalling, and rough running issues in the Grand Caravan.
- Do not ignore symptoms; a complete failure can leave you stranded and stalling is a major safety hazard.
- For 2009-2010 models, be aware of a TSB (18-020-10) for the P0339 code, which may require a shim.
- Choose a quality aftermarket brand like Delphi, Hitachi, NGK, or Standard Motor Products for reliability; avoid the cheapest options.
Is Your Grand Caravan Stalling? It Could Be the Crankshaft Sensor
If your Dodge Grand Caravan has been stalling, having trouble starting, or the check engine light is on, a faulty crankshaft position sensor is a likely suspect. This sensor is vital for engine operation, and when it fails, it can leave you stranded. This guide will walk you through the symptoms, how to choose the right aftermarket replacement, and what to expect for replacement costs.
Symptoms of a Failing Crankshaft Position Sensor
A bad crankshaft sensor can cause a range of problems. You might notice one or more of these issues:
- Check Engine Light: This is often the first sign of a problem. A common trouble code associated with a failing crankshaft sensor is P0335 (Crankshaft Position Sensor "A" Circuit Malfunction).
- Engine Won't Start: If the computer doesn't get a signal from the sensor, it won't know when to fire the spark plugs or inject fuel, preventing the engine from starting. The engine may crank but not turn over.
- Intermittent Stalling: The engine may stall unexpectedly while driving, which can be dangerous. This can happen as the sensor heats up and the signal becomes erratic.
- Rough Idle and Misfires: An incorrect signal can throw off the engine's timing, leading to a rough idle, engine vibrations, and misfires.
- Poor Acceleration and Reduced Fuel Economy: With incorrect timing and fuel delivery, your van will lose power and burn more gas than usual.
Known Issues for 2001-2020 Dodge Grand Caravan
While there are no widespread recalls specifically for the crankshaft position sensor itself on most Grand Caravan models, some related issues have been noted.
Choosing the Right Aftermarket Sensor: OEM vs. Aftermarket
For a part this critical, quality matters. While an OEM Mopar sensor is an option, many aftermarket brands offer reliable alternatives at a lower cost. Forum discussions and mechanic recommendations often suggest that for electronic sensors like this, sticking to well-known, reputable brands is key to avoiding premature failure. Some very cheap, unbranded sensors can fail quickly, sometimes within minutes or days of installation.
Aftermarket Brand Tiers:
- Top-Tier (Often OEM Suppliers): Brands like Delphi, Hitachi, and NGK/NTK are often original equipment manufacturers for many car brands. They are known for their quality control and engineering, making them a solid choice that often meets or exceeds OEM specifications.
- Reputable Aftermarket: Brands like Standard Motor Products (SMP) and Dorman offer a good balance of quality and value. They are widely available and are a common choice for professional repair shops.
- Value-Oriented: Brands like Walker Products and others offer a more budget-friendly option. While they can be a good choice for a vehicle with high mileage, be aware that the long-term durability might not match that of the higher-tiered brands.
Estimated Replacement Costs
The cost to replace the crankshaft position sensor can vary depending on your vehicle's year and engine, and whether you do it yourself or have a shop perform the work.
| Part / Service | Estimated Cost |
|---|---|
| New OEM (Mopar) Part | $50 - $95 |
| New Aftermarket Part | $23.84 - $59.03 |
| Shop Labor | $68 - $140 |
| Total (Shop Repair) | $109 - $152+ |
Frequently Asked Questions (FAQ)
Where is the crankshaft position sensor located on a Dodge Grand Caravan?

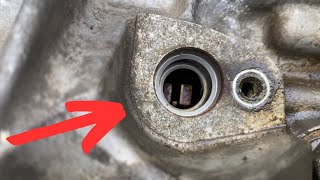

The location varies slightly by engine and year. On many 3.3L and 3.8L engines, it's on the back of the engine block where it meets the transmission, often partially hidden by the exhaust crossover pipe. For the 3.6L Pentastar engine (found in 2011-2020 models), it is also located on the engine block near the transmission bellhousing, accessible from underneath the vehicle.
🎬 See exactly where the sensor is located on 3.6L engines.Can I replace the crankshaft sensor myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill. 🎬 Watch this step-by-step guide to replacing the sensor yourself. It typically involves raising the vehicle for access, disconnecting the electrical connector (which has a red locking tab), and removing a single 10mm bolt. The tight space can make it tricky. After replacement, some vehicles may require a "relearn" procedure using a scan tool for the engine to run properly.
Is it safe to drive with a bad crankshaft position sensor?
It is not recommended. A failing sensor can cause the engine to stall at any time, which is a serious safety risk, especially in traffic or at high speeds. If the sensor fails completely, the vehicle will not start, leaving you stranded. Address the issue as soon as possible.
What is the difference between a crankshaft and camshaft position sensor?
They are similar sensors but monitor different rotating parts. The crankshaft sensor tracks the position of the crankshaft (which is connected to the pistons), while the camshaft sensor tracks the camshaft (which controls the engine's valves). The computer uses signals from both to get a complete picture of the engine's timing. Sometimes, a problem with one can be mistaken for the other.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5149167AE 05149167AF 5149167AD
The crankshaft position sensor for the Dodge Grand Caravan is a three-pin Hall-effect sensor. It is mounted on the engine block with a single 10mm bolt and sealed with an O-ring. The electrical connector features a red slide-lock tab.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
