A Guide to the Engine Cooling Fan Module for the 2002-2003 Jeep Liberty
If your Liberty is overheating at stoplights or the fan won't shut off, this part is the likely culprit.
- A bad module will either cause overheating at idle or a fan that won't turn off, draining the battery.
- The module is located behind the driver's side headlight and is simple to replace with a 10mm wrench.
- The diagnostic trouble code P1491 specifically points to a problem with this part's circuit.
- Quality aftermarket brands like Gates or Standard Ignition are reliable and cost-effective solutions for this common failure.
Is Your Jeep Liberty Overheating or Draining its Battery?
A common issue for the 2002-2003 Jeep Liberty (KJ generation) is a faulty engine cooling fan module. This part is a known weak point, but the good news is that it's easy to diagnose and replace. When this module fails, it typically causes one of two distinct problems: either the fan never turns on, causing the engine to overheat when you're stopped or moving slowly, or the fan runs continuously, even after you've turned the Jeep off, leading to a dead battery.
🎬 See how to fix a radiator fan that stays on.Symptoms of a Bad Cooling Fan Module
Look out for these clear warning signs. A failing module often won't give you much warning before it goes.
- Engine Overheating at Idle: If your temperature gauge climbs when you're in traffic but cools down once you start moving at higher speeds, it's a classic sign the fan isn't working.
- Fan Stays On: You park your Jeep, turn the key off, and the radiator fan keeps running. This will drain your battery overnight.
- A/C Performance Issues: The A/C might not blow as cold, especially when you're not moving. The cooling fan also helps cool the A/C condenser, so when the fan fails, both systems can suffer.
- Check Engine Light: A failure in the fan control circuit can trigger a Check Engine Light. The most common code associated with this issue is P1491. 🎬 Watch: Diagnosing the P1491 code and fan relay circuit.
Quick Diagnostic Trick
Turn on your air conditioning. This should command the cooling fan to turn on. If the fan starts running with the A/C on, it confirms the fan motor itself is working, and the problem is very likely the module or the signal it receives. If the fan does not run, the module, wiring, or fan motor could be the issue.
Choosing the Right Aftermarket Module
For a vehicle of this age, using a quality aftermarket part is a smart and common choice. The original factory modules are known to fail, so you aren't losing much by choosing a good aftermarket alternative. The key is to select a brand with a reputation for reliable electronics.
- Good Tier (Recommended): Brands like Gates and Standard Ignition (SMP) are well-regarded in the aftermarket. They specialize in producing replacement parts that meet or exceed original specifications. Gates, for example, notes that they often engineer improvements into parts with known high failure rates. These are reliable, plug-and-play choices.
- Standard Tier: Brands like Rostra Powertrain also produce a wide range of automotive electronics. While not as commonly discussed in forums for this specific part, they are an established aftermarket manufacturer.
Given the low cost and ease of replacement, a module from Gates or Standard Ignition offers the best balance of price, reliability, and performance for a 2002-2003 Liberty.
Cost of Replacing the Engine Cooling Fan Module
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Gates, Standard) | $72 - $98 |
| Shop Labor | $50 - $100 |
| Total Professional Repair | $122 - $198 |
Note: This is a very DIY-friendly repair. The module is held on by just two bolts and is easy to access, potentially saving you all labor costs.
🎬 Watch this step-by-step guide to diagnosing and replacing the fan.Frequently Asked Questions
Where is the cooling fan module located on a 2002-2003 Liberty?
The module is located in the engine bay, behind the driver's-side headlight. It is a small, finned aluminum box bolted to the vehicle's frame with two 10mm bolts. It is not in the main fuse box under the hood like on later model years.
Is this the same as the cooling fan relay?
Yes, for this vehicle, the terms "module" and "relay" are used interchangeably to describe the same part. It's a solid-state electronic relay, which is why it's often called a module.
Was there a recall for the cooling fan module on the 2002-2003 Liberty?
No, searches of the NHTSA database did not find any specific recalls for the engine cooling fan module on the 2002-2003 Jeep Liberty. Recalls found were for different parts or much newer vehicles.
Can I replace this part myself?
Yes, this is considered a very easy DIY job. Basic hand tools (a 10mm socket or wrench) are all that's required. The process involves disconnecting the battery, unplugging the electrical connector, removing two bolts, and swapping the old module for the new one. The entire job can often be done in under 30 minutes.
Helpful Videos

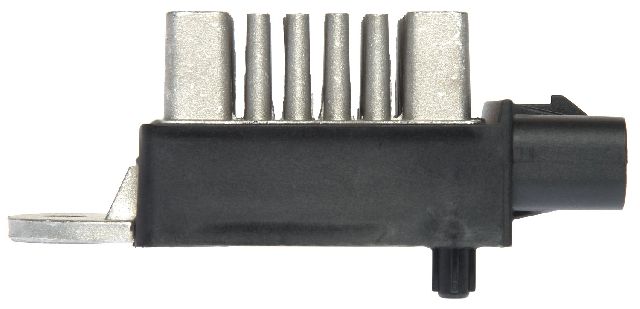

Technical Specifications
OEM Part Numbers: 56041891AA
Solid-state electronic relay module with integrated heat sink. Controls electric radiator fan speed based on PCM inputs.
