A/C Receiver Drier Replacement Guide for the 2002-2003 Lexus ES300
Keep your ES300's air conditioning running cold and protect your A/C system from moisture damage.
- Replacement is mandatory whenever the A/C system is opened to protect new components and validate warranties.
- If your A/C light is flashing, check the A/C magnetic clutch relay first, as per TSB EL009-05, before attempting more expensive repairs.
- Replacement is a job for a professional shop with refrigerant recovery and recharging equipment.
- For best results, use an OEM Denso part or a quality aftermarket brand like Four Seasons.
Is Your ES300 A/C Blowing Warm?
If the air conditioning in your 2002-2003 Lexus ES300 isn't cooling properly, you might have a problem with a component in the A/C system. The receiver drier is a critical maintenance part that protects the entire system. It's not a part that fails on its own often, but it must be replaced any time the A/C system is opened for another repair, like replacing the compressor or a leaking hose. The material inside, called a desiccant, soaks up moisture from the air as soon as it's exposed, making an old drier useless for protecting a newly repaired system.
Symptoms of a Failing A/C Receiver Drier
- Poor A/C Performance: The most common symptom is air from the vents that isn't as cold as it should be. A clogged drier can restrict refrigerant flow.
- Musty or Moldy Smell: If the drier fails to remove moisture, mold can grow in the A/C system, causing a bad odor from the vents.
- Foggy Windows: A moist A/C system can't defog your windows effectively.
- Rattling Noises: Internal damage to the drier can cause rattling sounds when the A/C is on.
- Visible Leaks: In rare cases, you might see oily residue or refrigerant leaking from the drier or its connections.
Flashing A/C Light? Check This First!
For the 2002-2004 ES300, a common issue is a flashing A/C light, which means the A/C will not turn on. Before suspecting a major component, check the A/C magnetic clutch relay. Lexus issued a Technical Service Bulletin (TSB EL009-05) for this exact problem. The original relay (part number 90987-02022) is known to fail and should be replaced with the updated part (90987-02028). This is an easy and inexpensive part to replace yourself.
Choosing the Right Aftermarket Receiver Drier
When it's time to replace your receiver drier, you have a few quality levels to choose from. Since this part is vital for the longevity of your entire A/C system, choosing a quality part is important.
- OEM (Denso): The original A/C system in your Lexus was made by Denso. Choosing a Denso-branded replacement is the safest way to ensure original-equipment quality and fit.
- Quality Aftermarket (Four Seasons): Brands like Four Seasons are well-known in the A/C repair world. They generally provide reliable, professional-grade parts that offer a good balance of performance and price. Many shops and owners use them with good results.
- Economy Aftermarket (Global Parts): Economy brands offer the lowest price. While they meet the basic fit and function requirements, their long-term durability and the quality of the desiccant material may not match higher-tier brands.
Pro Tip: Always replace the receiver drier when you replace the A/C compressor. Most warranties for new compressors require it. A failed compressor can send metal debris through the system, which will get trapped in the drier. Not replacing it will cause the debris to clog the new system and lead to another failure.
Estimated Replacement Costs
The part itself is inexpensive. The cost comes from the labor, which requires special equipment to handle the refrigerant safely.
| Part | Estimated Cost |
|---|---|
| New Aftermarket Part | $21.26 - $35.96 |
| New OEM Part (Denso) | $139 - $144 |
| Shop Labor | $180 - $264 |
| Total Professional Replacement | $319 - $408 |
Frequently Asked Questions (FAQ)
Do I have to replace the receiver drier?
Yes, it is mandatory to replace the receiver drier any time the A/C system is opened for repairs (like a compressor or hose replacement). The desiccant inside gets saturated with moisture from the air within minutes, making the old drier useless. Failing to replace it can void the warranty on new parts and lead to the quick failure of the entire system.
Can I replace the A/C receiver drier myself?
This is not a recommended DIY job. While unbolting the part is simple, the process requires specialized, expensive equipment to recover the old refrigerant, pull a deep vacuum on the system to remove all air and moisture, and recharge it with the precise amount of refrigerant and oil. This must be done by a certified professional.

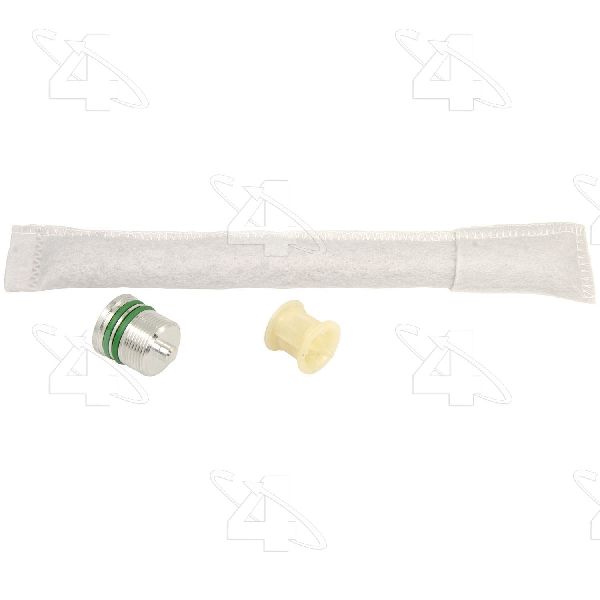

What is a desiccant bag?
The desiccant is the material inside the receiver drier that absorbs moisture. Think of it like the silica gel packets you find in new shoes or electronics. In some modern cars, the desiccant bag can be replaced separately, but for the 2002-2003 ES300, the entire receiver drier canister is replaced as a single unit.
Where is the receiver drier located on the 2002-2003 ES300?
The receiver drier is part of the A/C condenser assembly. It is a metal cylinder attached to the side of the condenser, which is located at the front of the car, in front of the radiator.
Technical Specifications
OEM Part Numbers: 88460-06070 8846006070 88460-06140
This part is typically sold as an integrated component with the A/C condenser. The drier itself is a non-serviceable canister containing desiccant. Replacement requires system evacuation and recharge.
