Guide to Serpentine Belts for the 2002-2003 Mazda Protege5
Understand the common issues and replacement needs for the drive belts on your Protege5.
- The Protege5 uses two separate drive belts, not a single serpentine belt; it's best to replace both at the same time.
- Squealing is the most common failure symptom and is usually caused by incorrect manual belt tension, not a faulty part.
- Quality aftermarket brands like Gates, Continental, and Dayco are reliable and cost-effective alternatives to OEM parts.
- While replacing the belts, inspect all pulleys for smooth, quiet operation to prevent future failures.
Signs of a Failing Serpentine Belt
A worn or failing belt on your Protege5 will give you several warning signs. The most common symptom is a loud squealing or chirping noise from the engine bay, especially on cold starts or when turning on accessories like the A/C. This noise is often caused by the belt slipping on the pulleys due to wear or improper tension. You might also notice visible cracks, fraying, or glazing on the belt's surface. In more serious cases, you could experience dimming headlights, a battery warning light, difficulty steering, or a rise in engine temperature.
Don't Ignore a Snapped Belt
If a belt breaks completely, you will immediately lose power to the accessories it runs. A snapped alternator belt will stop the battery from charging and cause the water pump to fail, leading to rapid engine overheating. A snapped A/C and power steering belt will make the steering wheel very difficult to turn. Do not drive the vehicle if a belt has broken.
🎬 Watch a technician diagnose a Protege with missing drive belts.Choosing the Right Aftermarket Belt
For the Protege5, high-quality aftermarket belts offer performance that is comparable to OEM (Original Equipment Manufacturer) parts at a better price. The key is to choose a reputable brand. Gates, Continental, and Dayco are all well-regarded manufacturers.
- Top Tier (Gates, Continental): Gates is a very popular choice and is known to be an OEM supplier for many car brands. Continental (which now includes the former Goodyear Gatorback line) is also considered a premium brand with a strong reputation. Many owners have had good, long-lasting results with these brands.
- Solid Value (Dayco): Dayco is a widely available brand that offers reliable performance and is often a good balance of cost and quality. While some mechanics have preferences, Dayco belts are used by millions and meet OEM durability standards.
Since your Protege5 has two drive belts, it is highly recommended to replace both at the same time. They have been exposed to the same wear and tear, and replacing them together saves you from doing the job twice.
Known Issues for the Mazda Protege5
Searches for official recalls and Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) did not show any specific issues for the serpentine belts on the 2002-2003 Protege5. However, owner forums frequently discuss belt squeal. This is often attributed to the belt system's design and, most commonly, incorrect belt tension. Unlike modern cars with automatic tensioners, the Protege5 requires manual tensioning. Overtightening the belt can damage the bearings in the alternator or other accessories, while under-tightening will cause slipping and squealing.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Belts (Set of 2) | $20 - $75 |
| New OEM Belts (Set of 2) | $40 - $75 |
| Shop Labor | $100 - $150 |
| Total Professional Replacement | $120 - $225 |
Frequently Asked Questions
Why do my new belts still squeal?
If new belts are squealing, the cause is almost always incorrect tension. The Protege5 has manual tensioners that are adjusted by moving the alternator and power steering pump. 🎬 See how to properly install and tension a new alternator belt. The belts must be tight enough not to slip but loose enough not to cause damage. A common rule of thumb is that you should only be able to twist the belt about 90 degrees (a quarter turn) at its longest point.
Should I replace the pulleys or tensioners with the belts?
The Protege5 does not have automatic spring-loaded tensioners. However, while the belts are off, it is a perfect time to inspect the idler pulleys and the pulleys on each accessory (alternator, power steering pump, etc.). Spin each one by hand. They should spin smoothly and silently. If you feel any roughness, wobble, or hear grinding noises, the pulley or the entire component may need to be replaced.
How often should the serpentine belts be replaced?
Most serpentine belts have a recommended service life of around 60,000 to 75,000 miles, but this can vary. It's best to inspect them regularly for cracks, fraying, or glazing, especially after 50,000 miles of use.
Is this a difficult DIY job?
For a DIYer with some experience, replacing the belts is manageable. It involves loosening the alternator and power steering pump bolts to release tension, which can be hard to reach. Setting the correct manual tension is the most critical part 🎬 Follow this step-by-step guide to replacing both belts yourself. of the job.
Helpful Videos
Technical Specifications
OEM Part Numbers: FS05-15-909 FS11-15-908

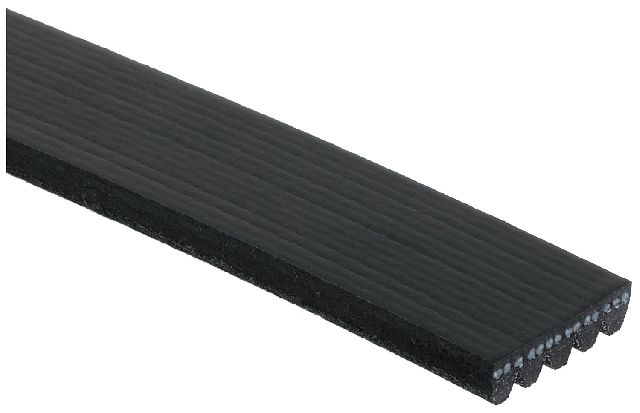

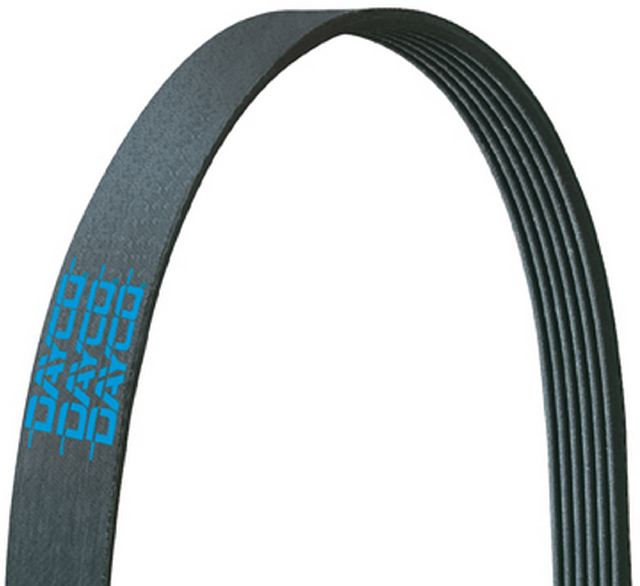

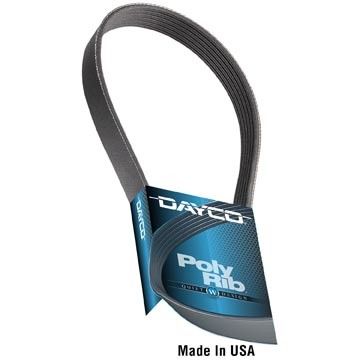

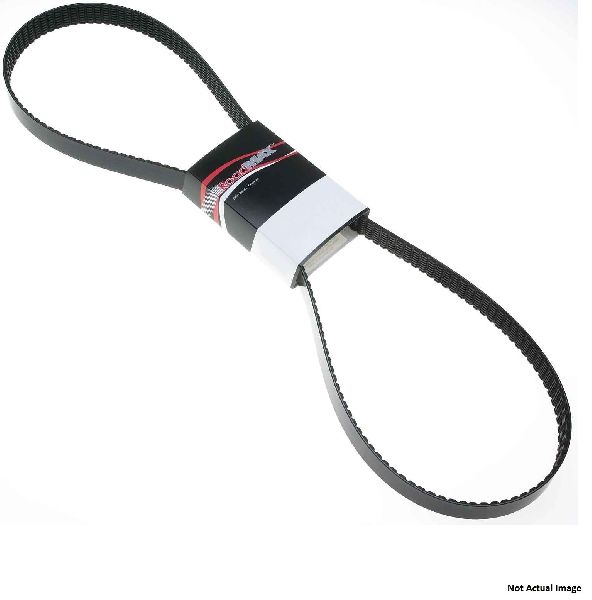

The 2.0L engine in the 2002-2003 Protege5 uses a two-belt accessory drive system with manual tensioners. One belt drives the Alternator and Water Pump, and the other drives the Power Steering and A/C Compressor.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
