A Guide to Replacing Your 2002-2004 Isuzu Axiom Disc Brake Calipers
Keeping your Axiom's brakes working correctly is critical; here's what you need to know about choosing the right replacement calipers.
- Axiom calipers are prone to failure from seized slide pins and pistons, especially in rust-prone areas.
- There are no specific recalls for Axiom calipers, but general underbody corrosion is a known vehicle issue.
- Always replace calipers in pairs (both fronts or both rears) to ensure safe, balanced braking.
- Choosing a caliper with a protective rust-prevention coating (like those from Dynamic Friction, Powerstop, or Raybestos) is a wise investment.
Is Your Axiom's Brake Caliper Failing?
A brake caliper is a hard-working part, but it doesn't last forever. On a vehicle like the Isuzu Axiom, which has been on the road for over two decades, caliper failure is common. The main culprits are often seized pistons or stuck slide pins, usually caused by corrosion from moisture and road salt. If you notice any of the following symptoms, it's time to inspect your brake calipers.
Key Symptoms of a Bad Caliper:
- Vehicle Pulling to One Side: When you brake, a stuck caliper can cause the vehicle to pull towards the opposite side. If the caliper is seized and not releasing, it will pull toward the affected side while driving.
- Uneven Brake Pad Wear: Take a look at your brake pads. If the inner and outer pads are wearing at drastically different rates, it often points to a caliper that isn't sliding correctly.
- Spongy or Soft Brake Pedal: A leaking caliper can allow air into the brake lines, resulting in a brake pedal that feels soft or goes further to the floor than usual.
- Brake Fluid Leaks: Puddles of fluid near your wheels are a serious sign. Brake fluid is typically clear or slightly yellowish and has a slick feel.
- Grinding or Squealing Noises: While often a sign of worn pads, persistent noise can also come from a caliper that isn't releasing properly, causing the pads to drag on the rotor.
- Burning Smell: A strong, acrid smell from the wheel area after driving can indicate a seized caliper is causing the brakes to overheat.
No Recalls, But Watch for Corrosion
There have been no specific recalls issued by the NHTSA for brake calipers on the 2002-2004 Isuzu Axiom. However, Isuzu did issue recalls for significant underbody corrosion on Axioms sold or registered in rust-belt states. This same corrosive environment is the number one enemy of your brake calipers, causing slide pins to seize and pistons to stick.
Choosing the Right Aftermarket Caliper
You won't find new OEM calipers for your Axiom at a dealership anymore. The good news is that the aftermarket offers a wide range of quality options. These parts are often remanufactured, meaning an original caliper core has been cleaned, inspected, and rebuilt with new seals, boots, and hardware. Many are also available as brand-new units.
Aftermarket Brand Tiers for Your Axiom
Not all brands are created equal. Here’s a breakdown of what to expect from the brands available for your vehicle.
- Premium & Coated Options (Best Choice): Brands like Powerstop, Dynamic Friction, and Raybestos (Element3 New) offer calipers with protective coatings. Powerstop calipers are often powder-coated red for a performance look, while Dynamic Friction and Raybestos use coatings to prevent rust. This is a smart investment, especially if you live where roads are salted in winter.
- Standard OE-Quality Options (Good Choice): Centric and Raybestos (Remanufactured) are well-respected brands that provide reliable, remanufactured calipers that meet or exceed original specifications. They offer a great balance of quality and price for a daily-driven Axiom.
- Economy Options (Budget Choice): Brands like Cardone and BBB Industries are often the most affordable. While they can be a good value, forum discussions show mixed reviews on long-term quality control for some budget brands. They can be a viable option if budget is the primary concern.
Pro Tip: Loaded vs. Unloaded Calipers

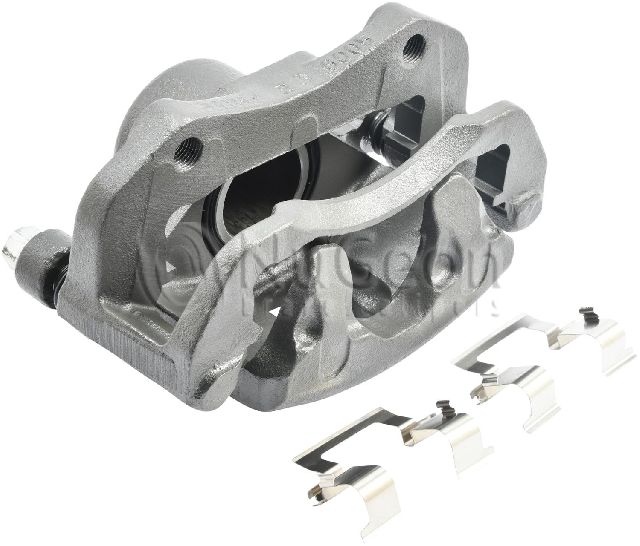

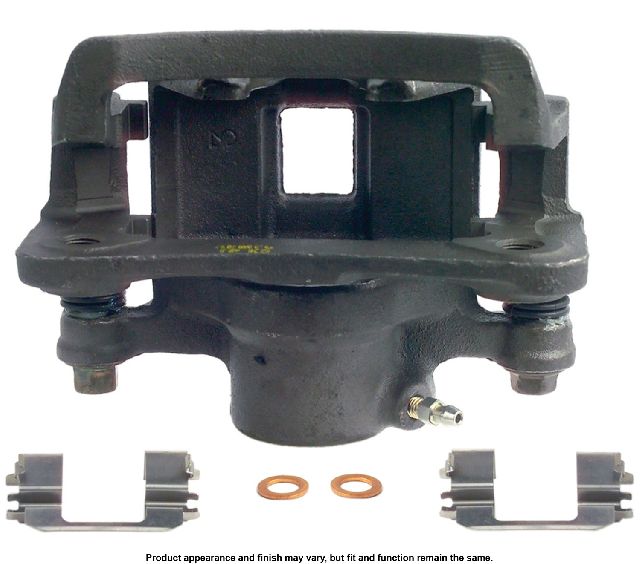

You will see options for "Loaded" and "Unloaded" (or Semi-Loaded) calipers. A loaded caliper comes complete with new brake pads and all necessary hardware, making the job faster. An unloaded caliper is just the caliper body itself, sometimes with hardware but without pads. If you have a preferred brand of brake pads, an unloaded caliper is the way to go.
Estimated Replacement Costs
The cost can vary based on your location and the parts you choose. The Isuzu Axiom shares its caliper design with the Isuzu Rodeo and Honda Passport, which helps keep parts available and affordable.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Caliper (per wheel) | $56 - $145 |
| Shop Labor (per wheel) | $125 - $275 |
| Total Professional Installation (per wheel) | $181 - $420 |
Frequently Asked Questions
Should I replace brake calipers in pairs?
Yes, it is highly recommended. Replacing both front or both rear calipers at the same time ensures balanced braking performance and even wear. If one caliper has failed due to age or corrosion, the other side is likely not far behind.
What is a "core charge"?
Most remanufactured calipers have a core charge. This is a deposit you pay when you buy the part. You get this deposit back when you return your old, worn-out caliper to the seller. This ensures a steady supply of old parts for the remanufacturing process.
Do new calipers come with the mounting bracket?
It depends. Some calipers are sold with the mounting bracket attached, while others are not. The product description will specify. If your old bracket's slide pins are seized, it's best to buy a new caliper that includes the bracket to save yourself a major headache.
What's the difference between phenolic and steel pistons?
Phenolic (a type of plastic composite) pistons are lighter and don't transfer heat as much as steel pistons, which can help keep brake fluid cooler. Steel pistons are stronger and more durable. Both types work well for the Axiom; the original design used a specific type, but either material is acceptable in a quality aftermarket replacement.
Technical Specifications
The Isuzu Axiom uses single or dual-piston floating calipers. Both front and rear are disc brakes. Aftermarket parts are available with either phenolic or steel pistons. The front and rear calipers are different and not interchangeable.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
