Universal Joint Replacement Guide for the 2002-2006 Chevrolet Avalanche 1500
Address clunks and vibrations by understanding how to choose the right universal joints for your truck.
- A clunk when shifting or a vibration at highway speed are the most common signs of a failing U-joint on your Avalanche.
- Do not ignore symptoms; a complete failure can cause the driveshaft to detach, leading to severe damage and a loss of vehicle control.
- For durability, choose premium brands like Spicer, SKF, or Moog; Spicer is often considered the gold standard.
- Replacing factory U-joints requires melting out plastic retainers with a torch and using a press, making it a challenging DIY job without the right tools.
Symptoms of a Failing Universal Joint
A bad U-joint on your Avalanche will give you clear warning signs. Ignoring them can lead to a driveshaft failure, which can cause significant damage or a loss of control. Be aware of these common symptoms:
- Clunking or Ringing Noise: A distinct "clunk" when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint with excessive play.
- Vibration: A vibration that you can feel through the floor or seats, especially at highway speeds (above 60 mph), often points to a failing U-joint. This vibration may be more noticeable during acceleration.
- Squeaking or Chirping: A cyclical squeaking noise that changes with your speed can indicate a U-joint that has lost its internal lubrication and is running dry. 🎬 Listen to the distinct sound of a failing GM U-joint.
Critical Failure Warning
If a U-joint fails completely, the driveshaft can detach from the vehicle. This is extremely dangerous, as it can dig into the pavement and potentially cause the truck to flip, or it can damage the transmission, transfer case, and exhaust. At the first sign of severe vibration or loud banging, it is unsafe to continue driving.
Choosing the Right Aftermarket U-Joint
The original U-joints on many GM trucks from this era were made with nylon injection-molded retainers, which means they were not designed to be serviced, only replaced. Aftermarket parts offer a choice between sealed (non-greaseable) and greaseable joints. Greaseable joints have a zerk fitting that allows you to add fresh grease, which can flush out contaminants and extend the part's life with regular maintenance. Non-greaseable joints are sealed for life, which many owners prefer for a fit-and-forget installation, similar to the original part.
Aftermarket Brand Tiers for Your Avalanche
Not all aftermarket parts are created equal. For a critical part like a U-joint, choosing a quality brand is important for long-term reliability.
- Premium & Heavy-Duty (Spicer, SKF, Moog, Yukon Gear): Brands like Dana Spicer are often the original equipment manufacturer (OEM) for driveline components and are widely considered the highest quality replacement. Their "Life Series" joints are a top-tier choice. Moog and SKF are also well-respected, often offering "problem solver" designs with features like improved seals or greaseable fittings for heavy use. Yukon Gear specializes in high-strength drivetrain components suitable for modified or hard-working trucks.
- OEM-Equivalent (ACDelco Professional): ACDelco is GM's official parts brand. Their Professional line is designed to meet or exceed original factory specifications and is a reliable choice for a stock replacement.
- Standard / Value (GMB, ACDelco Advantage): Brands like GMB provide a functional, budget-friendly replacement that meets basic requirements. They are a suitable option for a daily driver under normal use, but may not have the ultimate durability of the premium brands.
Pro Tip: Replace in Pairs or Sets
If one U-joint has failed, the others are likely the same age and have experienced the same amount of wear. It is highly recommended to replace all the U-joints on the same driveshaft at the same time. This saves you from having to do the job again in the near future.
Common Ordering Mistakes
Before ordering, confirm your vehicle's specifications. The 2002-2006 Avalanche 1500 was available in 2WD and 4WD configurations. 4WD models have a front driveshaft with additional U-joints. Also, be aware of the specific U-joint size and cap style required for your driveshaft, as there can be variations. Always verify the part fitment for your specific truck.
Cost of Replacing Universal Joints
| Item | Estimated Cost |
|---|---|
| Aftermarket U-Joint Part | $18.90 - $147.36 |
| Shop Labor | $110 - $161 per joint |
| Total Professional Replacement | $199 - $250+ per joint |
Frequently Asked Questions
How many U-joints does my 2002-2006 Avalanche 1500 have?
A 2WD model typically has two U-joints on the rear driveshaft. A 4WD model has the same two on the rear driveshaft plus two more on the front driveshaft, for a total of four.

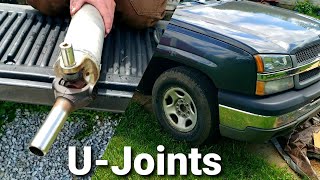

🎬 See a full walkthrough for replacing both front and rear joints.Should I get greaseable or non-greaseable U-joints?
This is a matter of preference. Non-greaseable (sealed) joints are what the factory installed and require no maintenance, and many high-quality options like Spicer are sealed. Greaseable joints can last longer if—and only if—they are regularly greased as part of your maintenance schedule. For trucks that see heavy use, towing, or off-road conditions, greaseable joints can be a good choice.
Can I replace a U-joint myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical experience. However, it requires specific tools. The factory U-joints are held in with injected plastic that must be melted out with a torch. 🎬 Watch this guide on removing those stubborn plastic-injected joints. Pressing the old joints out and new ones in without damaging the driveshaft yoke requires a heavy-duty vise, a ball joint press, or a dedicated U-joint press tool. If you are not comfortable with this, it is best to have a professional do the work.
Are there any recalls for Avalanche U-joints?
No, there have been no specific recalls issued by the NHTSA for universal joints on the 2002-2006 Chevrolet Avalanche 1500. However, a Technical Service Bulletin (TSB) exists for a squeak or noise from the U-joint area, with the suggested fix being the application of a specific lubricant to the outside of the U-joint caps.
Helpful Videos
Technical Specifications
The 2002-2006 Avalanche 1500 uses U-joints with outside clips (snap rings). Common cap diameters are 1.062" or 1.125". It is critical to confirm whether your truck is 2WD or 4WD and measure your existing U-joints or verify by part number before ordering to ensure a correct fit.
