A Mechanic's Guide to the 2002-2006 Chevrolet Trailblazer EXT Engine Head Bolts
Failing head bolts on your 4.2L engine can lead to serious trouble; here is what you need to know before you buy.
- Head bolts on the 4.2L engine are Torque-to-Yield (TTY) and MUST be replaced; they cannot be reused.
- These bolts are famous for breaking during removal, which can significantly increase repair time and cost.
- Symptoms like overheating, white exhaust smoke, or milky oil are critical and mean the vehicle should not be driven.
- This is not a DIY-friendly job; due to its complexity and the high risk of breaking bolts, professional repair is strongly recommended.
Is Your Trailblazer EXT Overheating or Smoking?
When engine cylinder head bolts begin to fail, they lose their clamping force. This allows the head gasket to leak, causing major problems. The symptoms are often severe and should not be ignored. An overheating engine is a primary sign, as coolant leaks into the cylinders or out of the engine. You may also see excessive white smoke coming from the exhaust pipe, which is a sign that coolant is being burned inside the engine. Another critical symptom is finding milky, light-brown sludge under your oil cap or on the dipstick; this means coolant has mixed with your engine oil, which can destroy the engine.
A Notorious Problem: Broken Bolts During Removal

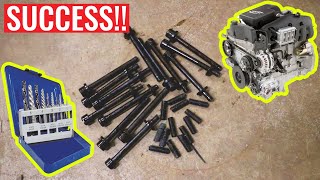

The 4.2L Atlas engine in your Trailblazer is well-known for one major issue: the head bolts often break off inside the engine block during removal. Mechanics report that even when following the proper procedure, it is common for several of the 14 main bolts to snap. This turns a difficult job into a much longer and more expensive one, as the broken bolt shafts must be carefully drilled out and extracted from the block. 🎬 See this guide on removing broken bolts from the block. This is the single biggest risk when tackling a head gasket job on this engine.

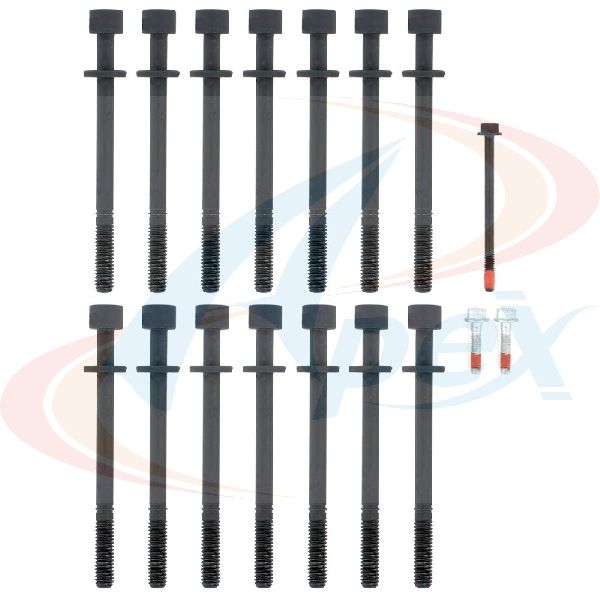

Choosing the Right Aftermarket Head Bolt Set
Because the original bolts are Torque-to-Yield (TTY), they are designed to stretch when installed and cannot be reused. You must buy a new set. When choosing an aftermarket brand, quality and reputation matter more than price.
- Premium Brands (Fel-Pro, Victor Reinz): These are well-known brands that are often original equipment suppliers to automakers. They are generally considered reliable choices. However, be aware that some technicians have reported issues with the placement of rivets on some aftermarket head gaskets (including Fel-Pro) for this specific engine, which can prevent the cylinder head from seating correctly. Always compare the new gasket and bolts to the old ones before installation.
- Economy Brands (Apex): These brands offer a lower price point. While they may be suitable for a budget repair, some forums have reported issues with lower-grade head bolts from economy brands failing or losing torque over time in other applications. For a critical, labor-intensive job like this, investing in a premium brand is often worth the extra cost for peace of mind.
Pro Tip: Always buy a matching head gasket set from the same brand as your head bolts if possible. And no matter which brand you choose, clean the bolt holes in the engine block thoroughly with a thread chaser and compressed air before installing the new bolts. Debris or fluid in the holes can cause incorrect torque readings and lead to failure.
Cost to Replace Trailblazer EXT Head Bolts
Replacing the head bolts is part of a larger head gasket replacement job. Due to the high labor time and risk of broken bolts, this is an expensive repair.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Head Bolt Set | $51 - $147 |
| New Aftermarket Head Gasket Set | $100 - $250 |
| Shop Labor | $1,200 - $2,500+ |
| Total Estimated Cost | $1,350 - $2,900+ |
Costs are estimates and can vary based on your location, the shop's labor rate, and whether any bolts break during removal, which would add significant labor time.
Frequently Asked Questions
Can I reuse my old head bolts?
No. The bolts in the 4.2L engine are Torque-to-Yield (TTY). This means they are permanently stretched during the tightening process to achieve a specific clamping force. Once they have been used, they are compromised and will not torque correctly a second time, which will lead to head gasket failure. You must always install a new set.
Do I have to replace the head gasket at the same time?
Yes, absolutely. The head bolts are removed to replace the head gasket. The two jobs are part of the same process. It would make no sense to remove the cylinder head and not replace the gasket and bolts at the same time.
What does Torque-to-Yield (TTY) mean?
TTY, or torque-plus-angle, is a method for tightening bolts. Instead of just tightening to a specific torque value, the bolt is tightened to a lower initial torque, and then turned an additional specific number of degrees (e.g., 155 degrees). This process stretches the bolt into its 'elastic' or 'yield' zone, creating a very precise and strong clamping force that is more accurate than torque alone.
Are there any recalls for the head bolts on my Trailblazer EXT?
No. There have been no safety recalls issued by the NHTSA for engine cylinder head bolts or head gaskets on the 2002-2006 Chevrolet Trailblazer.
What is the torque sequence for the Trailblazer 4.2L head bolts?
The torque procedure is complex and must be followed exactly. It involves multiple steps of torque and angle specifications that differ for the main bolts and the smaller bolts at the front of the head. Always refer to the specific instructions included with your new bolt set or a professional service manual, as sequences can vary slightly. Generally, it involves tightening from the center of the head outward in a spiral pattern.
🎬 Watch: A visual guide to the 4.2L head bolt torque sequence.Helpful Videos
Technical Specifications
OEM Part Numbers: 11519306
Torque-to-Yield (TTY) bolt set for 4.2L LL8 inline-6 engine. Set includes multiple bolt lengths and requires a specific multi-step torque-plus-angle tightening procedure.
