Engine Timing Set Guide for the 2002-2006 Chevrolet Trailblazer EXT
Address engine rattles and timing codes in your Trailblazer's 4.2L engine before they lead to major damage.
- This is a very difficult repair not recommended for DIY; labor costs will be high.
- Always replace the complete timing set (chain, guides, tensioner, sprockets) from a quality brand like Melling or Cloyes.
- A rattling noise from the engine combined with codes P0014/P0017 is a strong indicator of a failing timing set.
- Because the 4.2L is an interference engine, you must stop driving immediately to avoid catastrophic engine failure.
Is Your Trailblazer's Timing Chain Failing?
The 4.2L Atlas engine in the 2002-2006 Trailblazer EXT is generally robust, but its timing components can wear out over time, especially at higher mileage (over 100,000 miles). Ignoring the warning signs can lead to catastrophic engine failure. Because this is an interference engine, a broken timing chain can allow the pistons to strike the valves, resulting in a repair that costs more than the vehicle is worth.
Common Symptoms of a Bad Timing Set

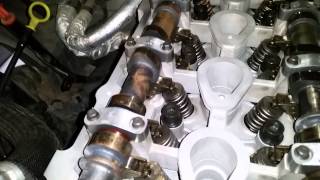

- Rattling Noise: The most common sign is a distinct rattling or scraping sound coming from the front of the engine. This noise is most noticeable at idle and may sound like a can of marbles. 🎬 Listen: What a failing Trailblazer timing chain sounds like It's caused by the loose chain hitting the plastic timing guides.
- Check Engine Light: You will likely see a check engine light with codes such as P0014 or P0017. These codes relate to the camshaft and crankshaft positions being out of sync. While a faulty VVT solenoid can also cause these codes, a persistent rattle combined with these codes strongly points to a stretched timing chain.
- Poor Performance: A stretched chain can cause the engine timing to be slightly off, leading to a rough idle, engine misfires, hesitation when accelerating, and reduced power.
- Metal or Plastic in Oil: During an oil change, you might find small pieces of plastic from the broken guides or metal shavings from the chain in the oil pan or filter.
This is Not a DIY Job for Most People
Replacing the timing set on the 4.2L engine is a very complex and labor-intensive job. On four-wheel-drive models, the front axle runs through the oil pan, which must be removed to access the timing cover. This requires removing front suspension and drivetrain components. Due to the complexity and the need for special tools, this repair is best left to an experienced professional.

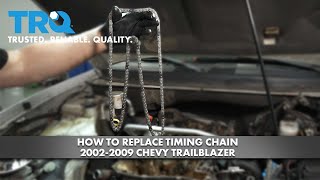

🎬 See the full step-by-step timing chain replacement processChoosing the Right Aftermarket Timing Set
Because labor is the biggest expense in this repair, it is critical to use a high-quality, complete timing set. You do not want to pay for this job twice. Avoid the cheapest options and choose a reputable brand. All components—chain, guides, tensioner, and sprockets—should be replaced at the same time.
Brand Quality Tiers
- Premium (Recommended): Brands like Melling and Cloyes are well-respected in the industry for timing components. They engineer their parts to meet or exceed OEM specifications and are trusted by professional mechanics. Investing in a complete kit from one of these brands is your best bet for a long-lasting repair.

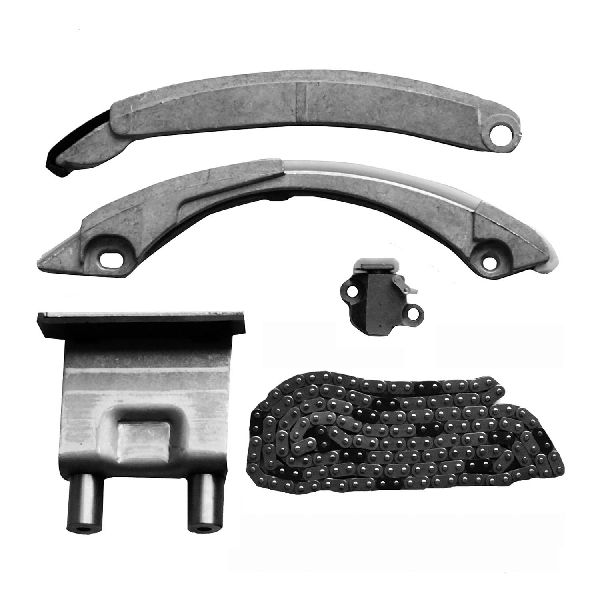

- Standard: INA is another quality brand, often serving as an original equipment supplier to various car manufacturers. Their components are a solid choice for this repair.
- Economy: Brands like Skyward are budget-oriented. While tempting, the lower price may come at the cost of material quality and longevity. Given the extreme difficulty of this job, saving a small amount on an economy kit is a significant risk.
Pro Tip: While you're replacing the timing set, it is highly recommended to also replace the water pump and the front crankshaft seal. The water pump must be removed to access the timing components anyway, so replacing it now saves you from a future repair with similar labor costs.
Estimated Replacement Costs
The total cost is heavily weighted toward labor. Expect a professional shop to charge for 10-16 hours of work.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $150 - $360 |
| Shop Labor | $1,300 - $2,200 |
| Total Estimated Cost | $1,450 - $2,560 |
Costs are estimates and will vary based on your location and the specific shop's labor rates.
Frequently Asked Questions
My mechanic said the P0014 code could just be the VVT solenoid. What's the difference?
The VVT (Variable Valve Timing) solenoid is a very common failure point on the 4.2L engine and can cause codes P0014 and P0017. It gets clogged with oil sludge and is much easier and cheaper to replace. If you have these codes but do NOT hear a persistent engine rattle, it's wise to replace the VVT solenoid first. 🎬 Watch: Simple solutions for P0014 and P0017 codes If you hear a distinct rattle, the timing chain set is the likely culprit.
Is the 2002-2006 Trailblazer 4.2L an interference engine?
Yes, it is an interference engine. This means that if the timing chain breaks, the pistons can hit the valves, causing catastrophic and expensive engine damage. This is why you must stop driving the vehicle if you suspect a major timing chain issue.
Should I replace the whole timing kit or just the part that failed?
Always replace the entire kit. The chain, guides, and tensioner all wear together. If one part has failed, the others are likely near the end of their service life. Since 90% of the job's cost is labor, it makes no financial sense to risk having to do it all over again because a different component failed a few months later.
Do the timing sprockets need to be replaced too?
Yes. It is highly recommended to use a kit that includes new sprockets for the crankshaft and camshaft(s). Worn teeth on old sprockets will cause a new chain to wear out prematurely. The one exception is the VVT sprocket (phaser), which is often sold separately and is very expensive. Inspect it carefully for wear and replace if necessary.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12628004 12575159 12568766 12569327 12598504 12571725

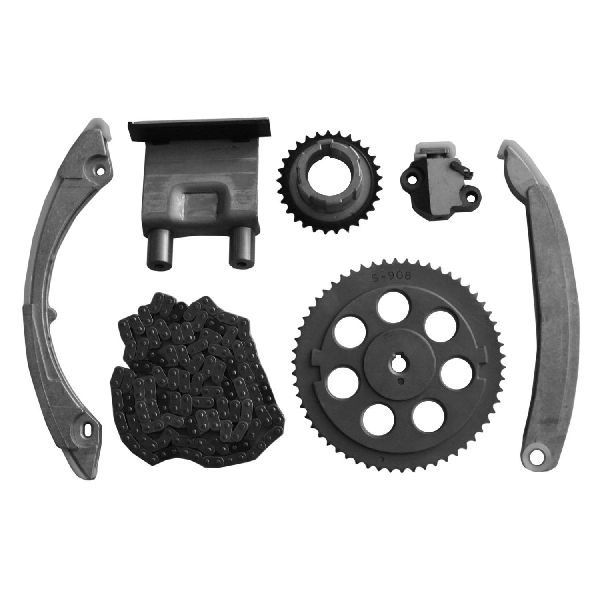

This guide applies to the 4.2L LL8 inline 6-cylinder engine found in all 2002-2006 Chevrolet Trailblazer EXT models. Kits should include the primary chain, tensioner, and at least three guides. Premium kits will also include the crankshaft and camshaft sprockets.
