Front Wiper Motor Guide for 2002-2006 Chevrolet Trailblazer EXT
Having trouble with your Trailblazer's wipers? Here’s what you need to know before buying a new front wiper motor.
- Wiper problems are very common on these trucks, usually due to a faulty electronic pulse board, not the motor itself.
- A recall was issued for 2002-2003 models for water intrusion into the wiper module, which causes most failures.
- Symptoms like wipers not turning off or only working on high speed almost always mean you need a new motor assembly.
- When replacing, ensure the new motor's crank arm is clocked to the same position as the old one to ensure proper wiper function.
Is it the Wiper Motor or Something Else?
On the 2002-2006 Trailblazer EXT, many wiper problems are not caused by the motor itself, but by the attached electronic control module, also known as the pulse board. This module is often the first part to fail. Symptoms like wipers that won't turn off, operate on only one speed, or stop in the middle of the windshield often point directly to a bad pulse board. Unfortunately, this module is typically sold as part of the complete motor assembly in the aftermarket, so you will likely be replacing both parts at the same time.
A Known Problem: Water Intrusion & Recall
General Motors issued a recall (NHTSA ID: 04V046000) for 2002-2003 Trailblazer models because water could get into the wiper module. This caused corrosion and short circuits, leading to a wide range of wiper malfunctions. The recall fix involved adding a patch over a vent hole and inspecting the components for corrosion. Even on later models not covered by the recall, this water intrusion issue can still occur, making it a primary cause of failure for the original factory motor.
Choosing the Right Aftermarket Wiper Motor
When your original wiper motor fails, you have a few options. While an OEM part from a GM dealership is available, new aftermarket motors offer a more affordable solution that often meets or exceeds original quality, especially considering the known issues with the factory part.
Aftermarket Brand Tiers
- New Aftermarket (e.g., Cardone New, Autopart Premium): These are brand-new units. Brands like Cardone are well-known in the aftermarket space. Buying new avoids the potential for wear and tear found in remanufactured parts. Some reviews for new Cardone motors are positive, but occasional defects out of the box can occur.
- Remanufactured (e.g., Cardone Reman): These are original units that have been rebuilt and tested. They can be a cost-effective option and are environmentally friendly. However, quality can sometimes be inconsistent compared to a new part.
Pro Tip: Before installing your new motor, take a picture of the position of the crank arm on the old motor. You must ensure the crank arm on the new motor is in the same position to ensure your wipers park correctly and have the proper sweep.
Typical Replacement Costs
The cost to replace a wiper motor can vary based on whether you do it yourself or use a professional mechanic.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Motor | $110 - $185 |
| Shop Labor | $106 - $156 |
| Total Professional Replacement | $216 - $341 |
Frequently Asked Questions
My wipers won't turn off. Do I need a new motor?
This is the most common symptom of a failed wiper pulse board on the Trailblazer. Since the pulse board is part of the aftermarket motor assembly, replacing the entire motor is the standard repair. As a temporary fix, you can pull the 25-amp wiper fuse located in the fuse box under the rear driver's-side seat 🎬 Watch: How to stop wipers that won't turn off to stop the wipers from running constantly.
Can I replace just the pulse board? 🎬 See this walkthrough on replacing only the pulse board
While some manufacturers like Cardone do produce pulse boards separately, they are not always readily available for this specific model. For a DIY repair, it is often simpler and more reliable to replace the entire motor assembly, which comes with a new board already installed and tested.
Is replacing the wiper motor a difficult job?
For a DIYer with basic tools, this is a manageable job that takes about 1-2 hours. The process involves removing the wiper arms (which may require a puller tool), taking off the plastic cowl panel at the base of the windshield, and then unbolting the motor assembly. The main challenge is often removing the wiper arms, which can be seized onto their posts.
My wipers are jerky or stutter on the intermittent setting. What's wrong?

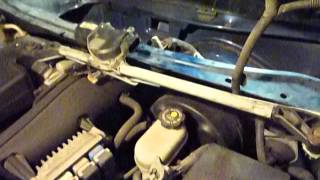

This is another symptom pointing to a problem with the wiper motor's internal electronics. It indicates the pulse board is failing to regulate the motor's movement correctly on the delay settings. 🎬 Watch: How to fix jerky or stuttering intermittent wipers Replacing the motor assembly should resolve this issue.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19354908 15171306 15094704 19355989
Fits front windshield. Includes motor and electronic pulse board/module. Does not include wiper transmission/linkage.
