2002-2006 Dodge Ram 1500 Power Steering Pressure Switch Guide
If your Ram 1500 is stalling or idling rough when you turn the wheel, this switch is the likely culprit.
- A bad power steering pressure switch is a primary cause of stalling and rough idle during low-speed turns on the 2002-2006 Ram 1500.
- The most common diagnostic trouble code associated with this failure is P0551.
- This is a simple, low-cost DIY repair that can be completed in under 30 minutes with basic hand tools.
- When replacing, expect a small amount of fluid loss and be sure to check the fluid level afterward.
Is a Bad Power Steering Pressure Switch a Problem on the 2002-2006 Ram 1500?
A failing power steering pressure switch is a common issue on this generation of Dodge Ram. The main job of this switch is to tell the engine to idle up slightly when you're turning the wheel, preventing a stall. When it fails, you'll notice engine problems that seem related to steering. The most common sign is the engine idle dropping, running rough, or even stalling completely when you turn the steering wheel, like when pulling into a parking spot. You may also see a fluid leak directly from the switch's plastic connector. This is a different system than the Electric Power Steering (EPS) on newer Rams, so issues like total steering loss are not a symptom for this part on your truck.
Symptoms of a Failing Power Steering Pressure Switch
- Engine Stalls During Turns: The most frequent complaint is the engine dying or nearly dying when turning the wheel at low speeds.
- Rough or Erratic Idle: The engine idle may become unstable, dropping low or surging up and down, when the steering wheel is turned.
- Check Engine Light: A bad switch will often trigger the Check Engine Light. The most common trouble code associated with this failure is P0551 (Power Steering Pressure Switch Performance). 🎬 Watch a quick overview of the sensor and its location.
- Fluid Leaks: The switch itself can develop leaks. You might notice power steering fluid weeping from the sensor body or its electrical connector.
Choosing the Right Aftermarket Switch
For a simple but critical sensor like this, quality matters. While you don't necessarily need to buy an OEM part from the dealer, opting for a reputable aftermarket brand over the cheapest option can prevent future headaches. The brands are presented in tiers based on general market reputation.
Aftermarket Brand Tiers
| Tier | Brands | General Quality & Notes |
|---|---|---|
| Tier 1: Reputable Aftermarket | Standard Ignition (SMP), Rostra Powertrain | Standard Ignition (SMP) is a well-known brand that has been around for a long time and is generally considered to produce quality replacement parts that meet or exceed OE standards. Rostra is also an established name in powertrain components. These brands are a solid choice for reliability. |
| Tier 2: Standard Replacement | True Tech, Replacement | These brands offer a balance of value and function. They are designed to be direct-fit replacements and are a cost-effective solution for a straightforward repair like this. While they may not have the long-standing reputation of Tier 1 brands, they are a viable option for most owners. |
Pro Tip: When you replace the switch, a small amount of power steering fluid will leak out. Have a rag or drain pan ready. After installation, check your power steering fluid level and top it off with the correct fluid type as specified in your owner's manual.
Cost of Replacing a Power Steering Pressure Switch on a 2002-2006 Dodge Ram 1500
| Part Type | Price Range |
|---|---|
| New Aftermarket | $32.68 - $71.85 |
| New OEM (Mopar) | $80 - $120 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Can I drive my Ram 1500 with a bad power steering switch?
Yes, but it's not recommended for long. The truck will still steer normally, but the engine may stall unexpectedly during low-speed turns, which can be a safety hazard in parking lots or traffic.
Is replacing the power steering pressure switch a DIY job?

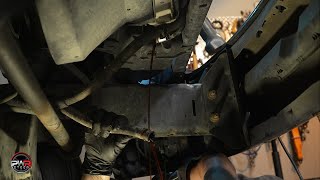

Yes, this is a great DIY job for beginners. It typically takes less than 30 minutes. The switch is located on the power steering pump or one of the high-pressure lines, 🎬 See how to access the pump and lines on your Ram. is easy to access from under the truck, and only requires a single electrical connector and one wrench to replace.

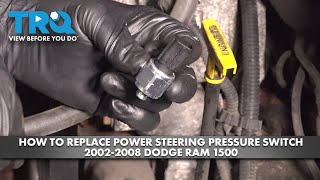

🎬 Follow this step-by-step guide to replace the switch yourself.Will a new switch fix my P0551 code?
In most cases, yes. The P0551 code is specifically for the power steering pressure switch circuit. If replacing the switch doesn't clear the code after a reset, you may have a wiring or connector issue to investigate.
Do I need to drain the power steering fluid to replace the switch?
No, you do not need to drain the entire system. Only a small amount of fluid will leak out when you unscrew the old switch. Simply top off the reservoir after you are finished.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56049470AC 56041335AB
Connector: 2-Pin Blade Type
