A Guide to the Disc Brake Hardware Kit for the 2002-2006 Ford E-150
Don't let worn-out clips and pins ruin your brake job; here's what you need to know for your E-150 van.
- Always replace the brake hardware kit when changing pads and rotors on your E-150.
- Seized caliper slide pins are a very common failure on this van; a new hardware kit includes new pins and prevents this issue.
- Symptoms like pulling, a burning smell, and rapid inner pad wear often point directly to failed brake hardware.
- Quality aftermarket brands like Carlson, Centric, Dorman, and Dynamic Friction are reliable and cost-effective choices for this part.
Is Your E-150's Brake Hardware Failing?
On a heavy-duty vehicle like the Ford E-150, the brake system is under constant stress. While brake pads and rotors get most of the attention, the hardware that holds them is just as important. Over time, the metal clips lose tension from heat cycles, and the caliper slide pins corrode and seize. This is a very common issue on the 2002-2006 E-150. A seized slide pin means the caliper cannot move freely, causing one brake pad to stay in constant contact with the rotor.
Symptoms of bad or missing brake hardware include:
- Brake Noise: Squealing, rattling, or clicking sounds when you apply or release the brakes.
- Uneven Brake Pad Wear: Often, the inner pad will be worn to the metal while the outer pad has plenty of life left.
- Vehicle Pulling: The van may pull to one side while driving or braking, caused by a dragging brake.
- Burning Smell: A seized caliper can cause the brake to overheat, producing a distinct burning odor from one of the wheels.
- Sluggish Performance: Your van may feel slow or like the parking brake is partially on.
A Common Point of Failure
The most frequent brake problem on these vans is a sticking caliper, often caused by corroded slide pins. Since new hardware kits include new pins and boots, replacing the kit during every brake job is cheap insurance against this common and dangerous failure.
Choosing the Right Aftermarket Hardware Kit
For a 2002-2006 E-150, you don't need to buy expensive OEM hardware. Quality aftermarket kits from reputable brands provide the necessary fit and corrosion resistance. Reusing old, rusted, and heat-fatigued hardware is a mistake that can lead to noise and premature brake wear. Given the low cost of these kits, they should be considered a mandatory replacement part for any brake service.
The available brands are all established names in the aftermarket and offer reliable quality for this part:
- Carlson: Specializes in brake hardware and is known for providing good quality, complete kits at an affordable price.
- Centric: A highly regarded brand for all types of brake components, their hardware kits are a dependable choice.
- Dorman: A massive aftermarket manufacturer known for providing OE-equivalent parts.
- Dynamic Friction: A legitimate brand that offers competitively priced brake components that are considered average to good quality for daily use.
Pro Tip: When installing the new hardware, clean the caliper bracket thoroughly with a wire brush to remove all rust and debris where the clips sit. Apply a thin layer of high-temperature brake grease to the slide pins and the points where the pads slide on the clips. This ensures smooth, quiet operation.
Cost of a New Disc Brake Hardware Kit (2002-2006 Ford E-150)
| Part Type | Price Range |
|---|---|
| New Aftermarket Hardware Kit | $10.19 - $39.68 |
| Shop Labor for Brake Job | $150 - $300 |
Note: The hardware kit is replaced during a brake pad and rotor replacement. The labor cost reflects the total for the brake job.
Frequently Asked Questions
Is it really necessary to replace the brake hardware?
Yes. For the E-150, it is highly recommended. The old clips have been weakened by heat and can cause noise, while old slide pins are a primary cause of seized calipers on these vans. For a small cost, a new kit prevents many common brake problems.
What's included in a typical disc brake hardware kit?

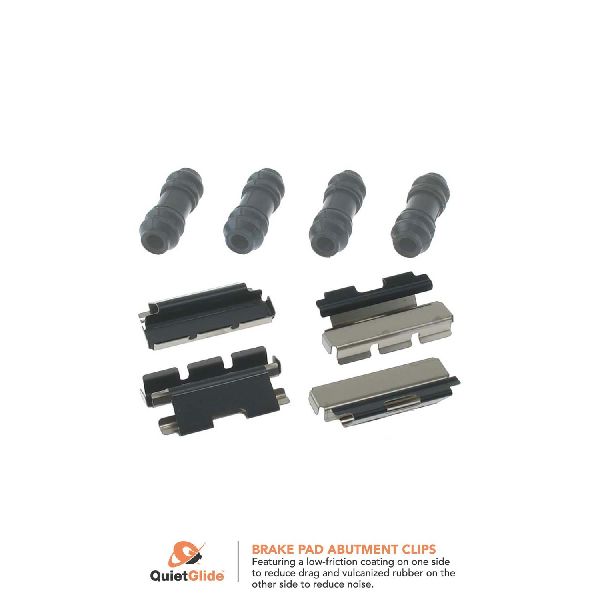

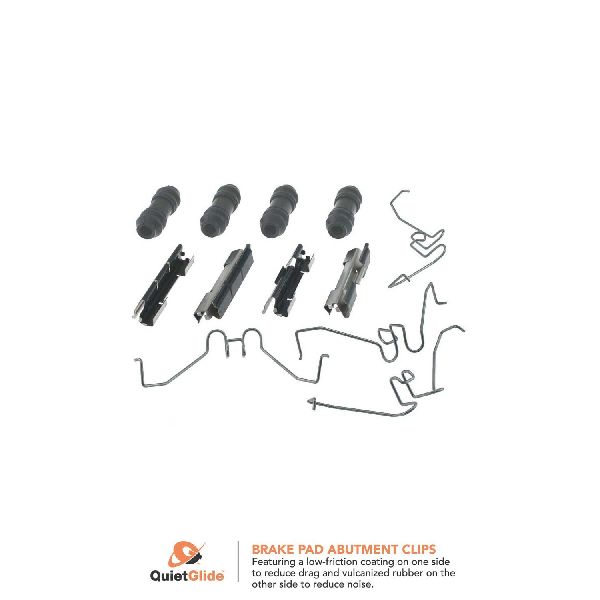

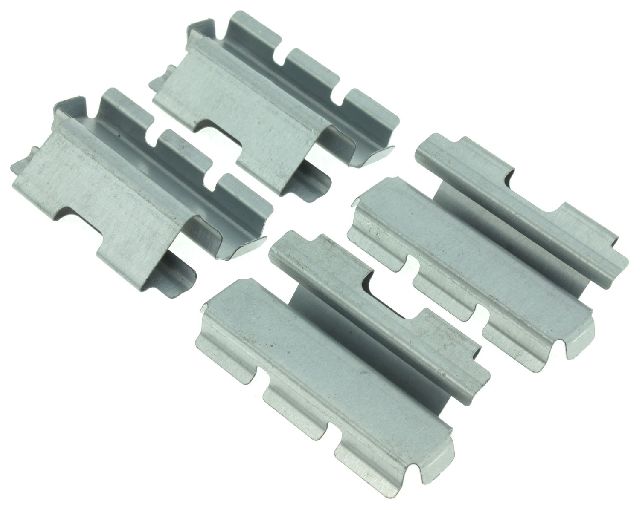

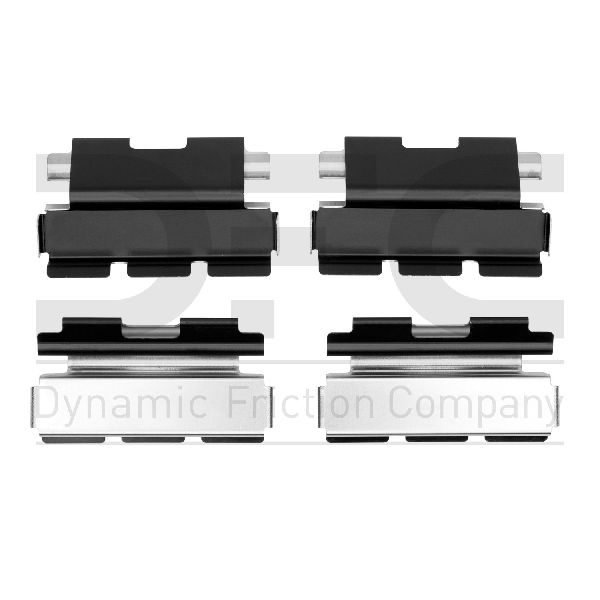

A kit usually contains anti-rattle clips for the brake pads, caliper slide pins, and rubber boots to protect the pins from dirt and moisture. Some kits may also include new caliper bolts.
Are front and rear hardware kits the same?

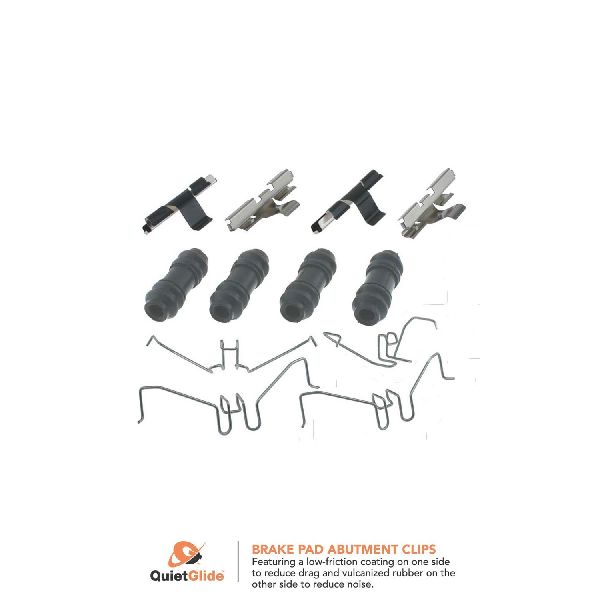

No, front and rear brake systems are different and require specific hardware kits. Ensure you purchase the correct kit for the axle you are working on.
Are there any recalls for the 2002-2006 E-150 brakes?
No, searches of the NHTSA database and other sources did not find any specific recalls or technical service bulletins (TSBs) related to the disc brake hardware, calipers, or pads for the 2002-2006 Ford E-150.
Technical Specifications
Kit typically includes anti-rattle clips, caliper guide pins, and guide pin boots. Kits are specific to front or rear brakes.
