A Guide to the Brake Master Cylinder for the 2002-2006 Ford Explorer
If your brake pedal feels spongy or sinks to the floor, your master cylinder might be the problem.
- A spongy or sinking brake pedal is the most common sign of a failing master cylinder on your Explorer.
- The failure is usually an internal leak into the brake booster, so you won't see fluid on the ground.
- You must bench bleed the new master cylinder before installation to ensure a firm pedal.
- If the master cylinder has leaked into the brake booster, the booster must also be replaced.
Is Your Explorer's Brake Pedal Trying to Tell You Something?
The brake master cylinder is a part that often fails quietly at first. The most common problem on this generation of Ford Explorer is not a visible fluid leak on your garage floor. Instead, the seals inside the master cylinder wear out, causing an internal leak. This allows brake fluid to seep into the brake booster, which is the large black canister the master cylinder is bolted to. This is a serious issue that leads to a loss of braking performance.
Top 3 Signs of a Failing Master Cylinder:
- Spongy or Mushy Brake Pedal: This is the number one symptom. The pedal feels soft when you press it, instead of firm. You might have to push the pedal much further down than usual to start stopping.
- Sinking Brake Pedal: When you're stopped at a light with your foot on the brake, does the pedal slowly sink towards the floor? This is a classic sign of an internal leak in the master cylinder.
- Brake Warning Light: As fluid leaks into the booster, the level in the brake fluid reservoir drops. This will trigger the red 'BRAKE' warning light on your dashboard.
Safety First: Leaking Fluid and the Brake Booster
If the master cylinder leaks into the brake booster, the booster must also be replaced. The brake fluid will ruin the rubber diaphragm inside the booster, causing your power brakes to fail. Replacing the master cylinder without replacing a contaminated booster will lead to more brake problems down the road.

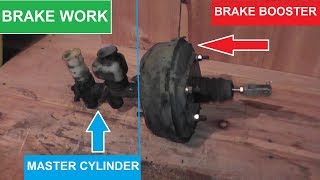

🎬 See how to replace both the master cylinder and booster together.Choosing the Right Aftermarket Master Cylinder
You don't have to buy the expensive OEM part from a Ford dealer. Aftermarket brands offer good quality replacements that can save you money. Here’s a breakdown of the brands available for your 2002-2006 Explorer.
Brand Quality Tiers
- OEM (Motorcraft): This is the original part your Explorer came with. It's the benchmark for quality and fit, but it's also the most expensive option.

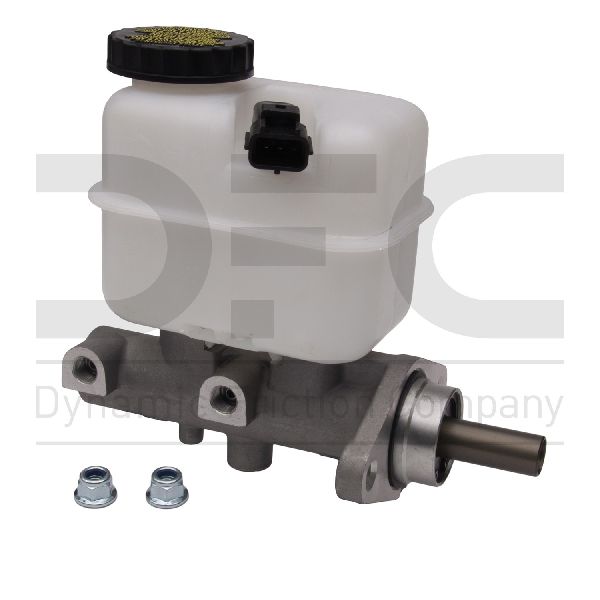

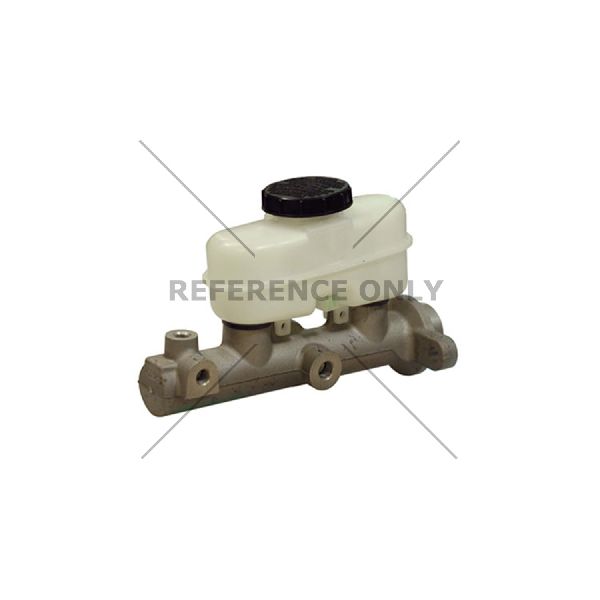

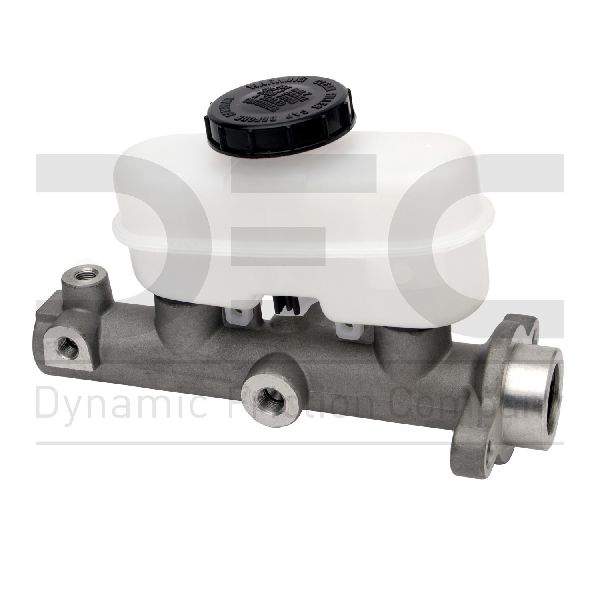

- Premium Aftermarket (Centric, Dynamic Friction): Brands like Centric have a strong reputation in the brake industry for making quality parts that meet or exceed OEM standards. They are a reliable choice for a long-lasting repair.
- Standard Aftermarket (Dorman): Dorman is a huge name in aftermarket parts and is known for re-engineering components to fix original design flaws. Their new master cylinders are a popular, solid choice that balances quality and price.
- Economy (Replacement): These are often re-branded or generic parts that offer the lowest price. While functional, they may not have the same long-term durability or precise fit as higher-tier brands. They can be a good option for a budget-focused repair.
Pro Tip: Bench Bleed Your New Part!
No matter which brand you choose, the new master cylinder must be "bench bled" before it's installed. This means removing all the air from the cylinder on a workbench before putting it in the truck. Skipping this step will leave air in the system and result in a spongy pedal, no matter how many times you bleed the brakes later. Most new master cylinders come with a simple kit and instructions for this.
🎬 Watch an easy guide on how to bench bleed your part.How Much Does a New Master Cylinder Cost?
The total cost depends on whether you do the job yourself or take it to a shop. The part itself is affordable, but labor can add a significant amount to the final bill.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $81.10 - $172.44 |
| New OEM (Motorcraft) Part | $230 - $375 |
| Shop Labor | $195 - $290 |
| Total Professional Installation | $425 - $665 |
Frequently Asked Questions
Are there any recalls for the 2002-2006 Explorer master cylinder?
There are no specific, widespread recalls for the brake master cylinder on the 2002-2006 Ford Explorer. However, Ford has issued recalls for other trucks and SUVs from the same era for master cylinders leaking fluid into the brake booster. This indicates it is a known failure pattern for Ford vehicles of this period.
Can I replace the master cylinder myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical experience. You will need basic hand tools, a flare nut wrench for the brake lines, and a master cylinder bleeding kit. The most critical parts of the job are bench bleeding the new cylinder and properly bleeding the entire brake system afterward to remove all air.
What kind of brake fluid does my Explorer need?
The 2002-2006 Ford Explorer typically uses DOT 3 brake fluid. Always check the cap of the master cylinder reservoir or your owner's manual to be sure. Using the wrong type of fluid can damage the brake system.
My pedal is spongy, but I don't see any leaks. Could it still be the master cylinder?
Yes. The most common failure on these trucks is an internal leak, where fluid passes by the seals inside the cylinder or leaks out the back into the brake booster. You won't see a puddle on the ground from this type of failure. A sinking pedal and a dropping fluid level in the reservoir are the key clues.

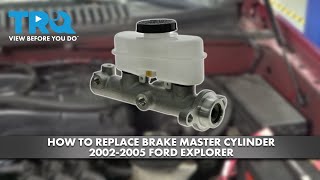

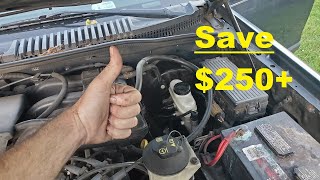

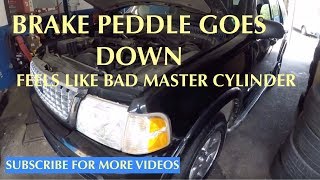

Helpful Videos
Technical Specifications
OEM Part Numbers: F87Z2140AA F87Z2140AC F87Z2140CA
Bore Diameter: 1.0625 in. (27mm). Material: Aluminum. Reservoir and sensor are typically included.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
