Guide to the Exhaust Manifold Gasket on a 2002-2006 Ford Explorer
Hearing a ticking noise from your engine bay? It could be a sign of a failing exhaust manifold gasket.
- A ticking noise when the engine is cold is the most common symptom of a failing exhaust manifold gasket.
- The root cause is often a broken exhaust manifold stud or a warped manifold, not just a bad gasket.
- Always inspect for broken studs before starting the repair; their extraction can significantly increase repair time and cost.
- Using new manifold studs/bolts and applying anti-seize is highly recommended for a durable repair.
Is Your Explorer's Exhaust Manifold Gasket Failing?
A bad exhaust manifold gasket is a common issue that can lead to noticeable problems. The constant heating and cooling cycles of the engine can cause the original gaskets to fail or, more commonly, cause the exhaust manifold itself to warp or the mounting studs to break. This allows hot exhaust gases to escape, creating a variety of symptoms.
Primary Symptoms of Failure
- Loud Ticking or Tapping Noise: This is the most common sign. You'll hear a rhythmic ticking noise coming from the engine bay, especially when the engine is cold. The sound often gets quieter or disappears as the engine warms up and the metal parts expand, temporarily sealing the leak.
- Exhaust Smell in Cabin: Smelling exhaust fumes inside the vehicle is a serious symptom. This indicates a leak large enough for dangerous gases like carbon monoxide to enter the passenger area, posing a health risk.
- Decreased Performance and Fuel Economy: An exhaust leak before the oxygen sensor can trick the sensor into thinking the engine is running lean. This causes the computer to add more fuel than necessary, hurting your gas mileage. Significant leaks can also lead to a loss of power and acceleration.
- Check Engine Light: A leak can sometimes trigger the Check Engine Light. You might see codes related to the oxygen sensors or a lean running condition (like P0171 or P0174), as the leak disrupts the sensor's ability to get an accurate reading.
The Real Problem: Broken Studs and Warped Manifolds

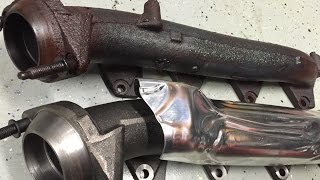

More often than not, the gasket itself isn't the root cause of the failure. On these Ford Explorers, especially those with the 4.6L V8 🎬 Watch: Step-by-step passenger side exhaust manifold replacement walkthrough, the original exhaust manifold studs are prone to rust and breaking. When a stud breaks, it can no longer provide the clamping force needed to keep the manifold sealed against the cylinder head, causing a leak. Likewise, the intense heat cycles can cause the cast iron manifold to warp over time, creating an uneven surface the gasket can no longer seal. Before replacing the gasket, it is critical to inspect the manifold for flatness with a straight edge and check for any broken studs. Attempting to install a new gasket without addressing a broken stud or warped manifold will result in the new gasket failing quickly.
Choosing the Right Aftermarket Gasket Set
When shopping for a new aftermarket exhaust manifold gasket set, you'll find options at different price points. For a part this critical, where the labor is intensive, it's wise to choose a quality part to avoid doing the job twice.
- Premium Brands (Cometic, Victor Reinz): Victor Reinz is a well-respected brand that is an original equipment manufacturer (OEM) for many car companies. Their gaskets are known for quality and proper fit. Cometic is a high-performance brand, often offering Multi-Layer Steel (MLS) gaskets that provide superior durability and sealing, making them an excellent upgrade, especially if your manifold surfaces are not perfectly flat.

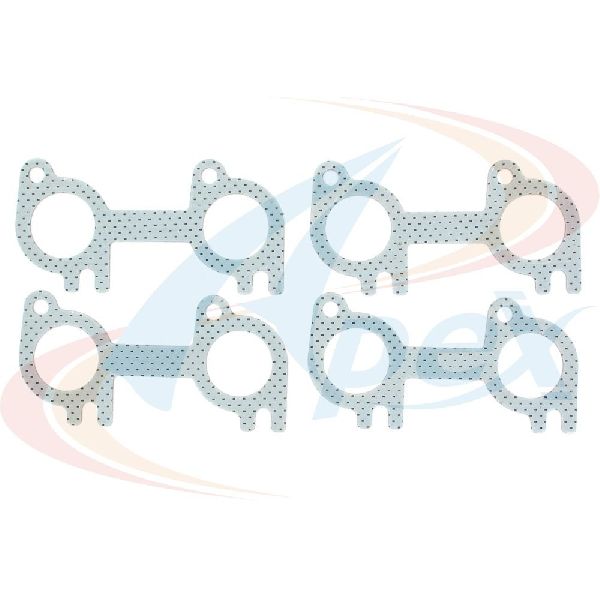

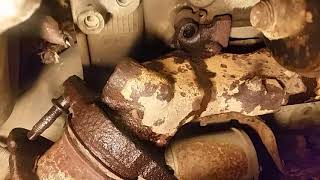

- Standard Aftermarket Brands (Apex): Brands like Apex offer a more budget-friendly solution. While they meet basic requirements, they may use less robust materials compared to premium options. They can be a viable choice for a quick repair, but for long-term reliability, a premium brand is often recommended given the difficult nature of the replacement. 🎬 Watch: A mechanic's guide to tackling this difficult manifold job
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $9.70 - $60.09 |
| Shop Labor for Gasket Replacement | $85 - $125 |
| Shop Labor for Manifold & Gasket Replacement | $212 - $311 |
Note: Labor costs can increase significantly if exhaust manifold studs are broken and need to be extracted. This is a common occurrence and can add several hours to the repair time.

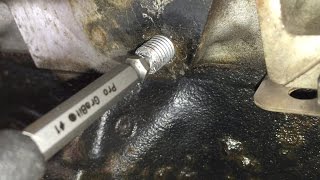

🎬 See how to extract broken manifold studs on Ford enginesFrequently Asked Questions (FAQ)
Do I need to replace the exhaust manifold bolts or studs?
It is highly recommended. The original studs and bolts are exposed to extreme heat and corrosion, causing them to become weak and brittle. They often break during removal. Replacing them with new, high-quality hardware ensures proper torque and a long-lasting seal. Always apply anti-seize compound to the new threads to make future repairs easier.
Should I use sealant on the new gasket?
Generally, no. Modern exhaust manifold gaskets, especially Multi-Layer Steel (MLS) types, are designed to be installed dry. The gasket's construction provides the seal. Adding sealant can cause the gasket to slip or burn away, leading to a premature leak. Always follow the specific instructions included with your new gasket set.
My leak is only on one side. Should I replace both gaskets?
While not strictly necessary, it is good practice. The gaskets on both sides of the engine have been exposed to the same age and heat cycles. If one side has failed, the other side may not be far behind. Replacing both at the same time can save you from having to do the same job again in the near future.
Were there any recalls for this issue?
There were no specific recalls or widespread Technical Service Bulletins (TSBs) for exhaust manifold gasket failures on the 2002-2006 Ford Explorer. While later model Explorers were investigated for exhaust fume intrusion, these investigations did not pertain to the 2002-2006 generation and were often related to other issues. Failures on this generation are typically due to age, corrosion, and the thermal stress of normal operation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5L2Z-9448-A F77Z-9448-AA YL2Z-9448-AA
Fits 2002-2006 Ford Explorer models with either the 4.0L SOHC V6 or 4.6L 2V V8 engine. Gaskets are engine-specific. Materials include composite and multi-layer steel (MLS).
