Choosing the Right Disc Brake Pads for a 2002-2006 Freightliner Sprinter 3500
Ensure your heavy-duty Sprinter stops safely and reliably by selecting the correct brake pads for the job.
- It is critical to visually identify your caliper manufacturer (e.g., Bosch, ATE, Wabco) before ordering, as parts are not interchangeable.
- For best performance and safety, always replace the brake rotors at the same time as the pads on a T1N Sprinter.
- For reliability on a heavy vehicle, choose OEM-equivalent brands like ATE, Pagid, or Bosch, or a dedicated heavy-duty kit from Powerstop or EBC.
- Be aware of the recalls for the brake warning light and potential brake fluid contamination for this vehicle generation.
Symptoms of Worn Brake Pads
Worn brake pads compromise your stopping power. Ignoring the signs can be dangerous. Look out for these common symptoms:
- Brake Warning Light: Your Sprinter is equipped with brake pad wear sensors. When the pads wear down to a certain point, a light will appear on your dashboard. This is the most direct indicator.
- Screeching or Squealing: A high-pitched squeal when you apply the brakes often means the pads are near the end of their life. This sound can be caused by the wear indicator tab or other factors.
- Grinding Noises: A loud, metallic grinding sound means the pads are completely worn away, and the metal backing plate is grinding against the rotor. This is a critical safety issue that causes severe damage to the rotors. Stop driving immediately.
- Increased Stopping Distance: If you notice it takes longer to stop your van than it used to, your brake pads may be worn out and unable to create enough friction.
- Spongy or Soft Brake Pedal: While T1N Sprinters are known for having a slightly soft pedal feel on the first press, a pedal that feels significantly spongier than usual or sinks to the floor could indicate a problem with the pads or the hydraulic system.
Vehicle-Specific Issues, Recalls, and TSBs
There are two official recalls from the National Highway Traffic Safety Administration (NHTSA) for the 2002-2006 Sprinter's brake system, though neither is for the pads themselves:
- Instrument Cluster Warning Light (2003-2006 models): A recall was issued because the brake warning light may fail to illuminate during the vehicle's startup check. This could prevent the driver from being alerted to low brake fluid. The fix involves a software update from a dealer.
- Brake Fluid Contamination (Some 2006 models): A recall was issued for potential water contamination in the brake fluid from the factory. This can lower the fluid's boiling point and increase stopping distance. The fix was a complete brake fluid flush by a dealer.
Choosing the Right Aftermarket Brake Pads
Not all brake pads are created equal, especially for a heavy-duty van. The original pads were designed to wear down along with the rotors. For this reason, many experts recommend replacing rotors and pads together. When choosing a new set, it's important to match the part to your van's specific calipers, as both Bosch and ATE/Wabco systems were used. You must visually check your calipers before ordering.
Brand Quality Tiers
Tier 1: OEM-Equivalent & Premium European
These brands are often the original suppliers to Mercedes-Benz and offer the most predictable performance and fit. They are the top choice for owners who want to maintain factory performance and reliability.
- ATE: A renowned German brand and an OEM supplier. ATE pads provide excellent performance and are designed to work as a system with the factory rotors.
- Pagid: Another OEM supplier known for high-quality friction materials that deliver consistent stopping power.
- Bosch: As a supplier of the original calipers, Bosch also offers high-quality replacement pads that are engineered to factory specifications.
Tier 2: Heavy-Duty & Performance Aftermarket
These brands are for owners who frequently carry heavy loads, tow, or operate in mountainous terrain. They offer enhanced stopping power and fade resistance, sometimes at the cost of more dust or noise.
- EBC Brakes: EBC offers pads like their 'Yellowstuff' or 'Orange Extra Duty' compounds that provide a significant upgrade in bite and high-temperature performance, ideal for demanding use.

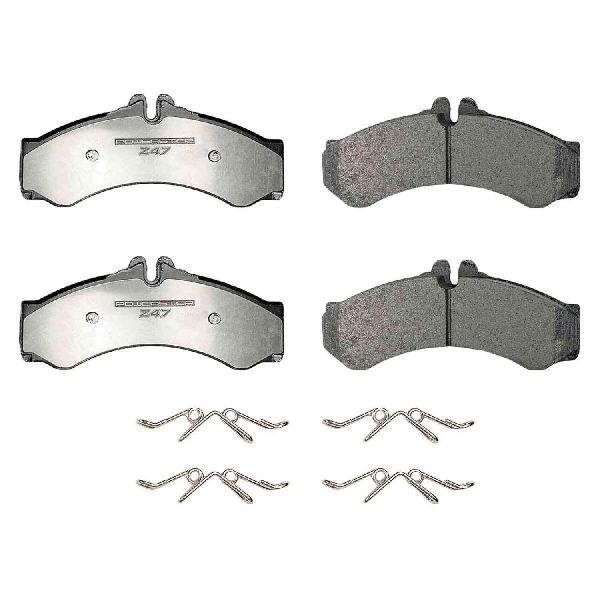

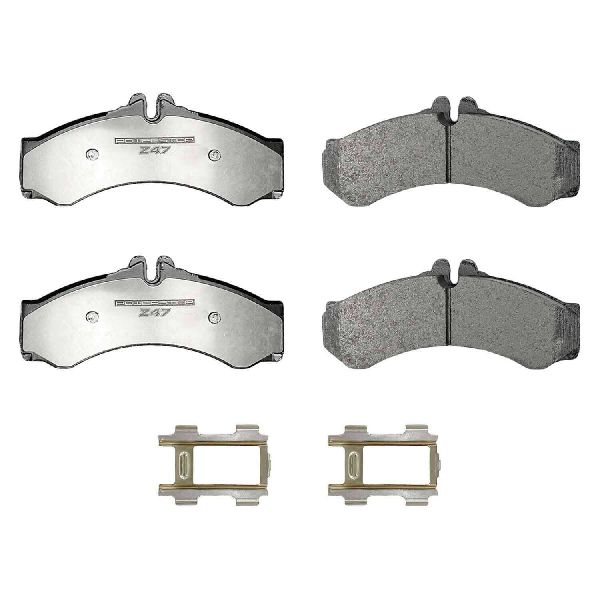

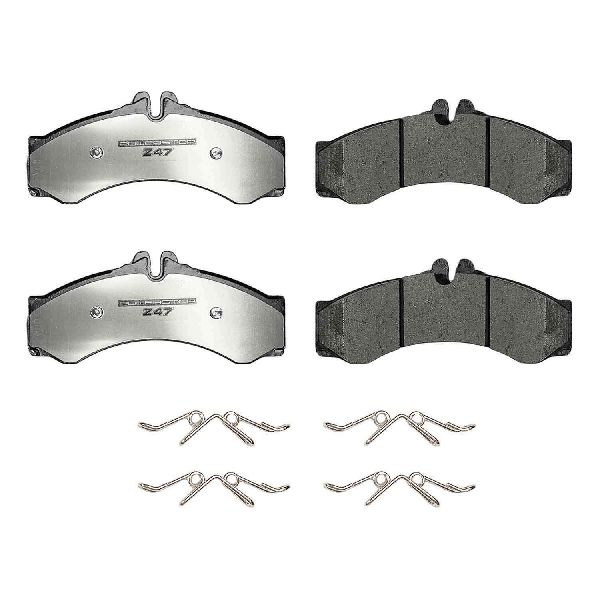

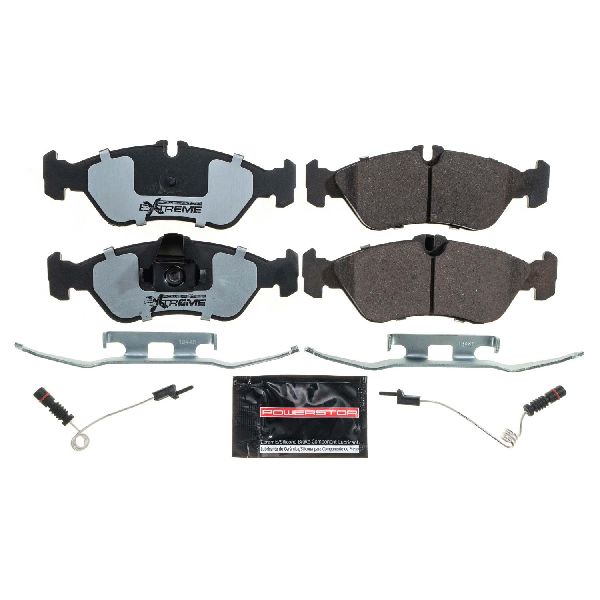

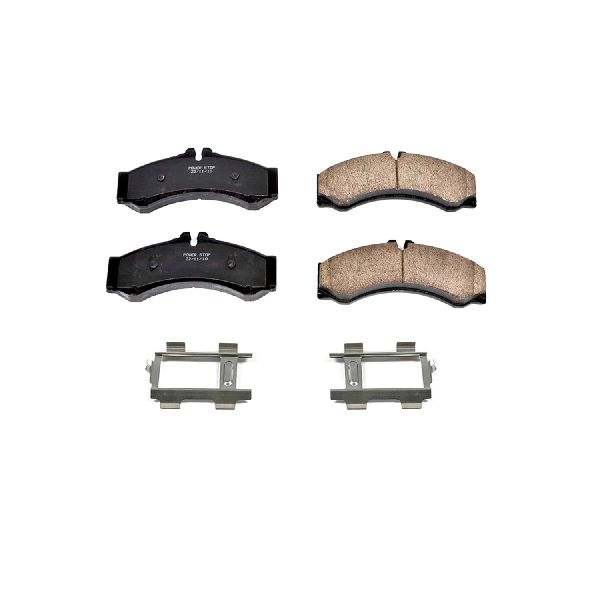

- Powerstop: Their Z36 Truck & Tow kit is a popular choice, featuring carbon-fiber ceramic pads designed for better heat dissipation and stopping power under load.
- Performance Friction: Known for their carbon-metallic friction material, these pads offer severe-duty performance with excellent fade resistance.
Tier 3: Quality Standard Aftermarket
These brands provide a reliable, cost-effective solution for daily driving and standard loads. They are a good step up from generic parts-store brands.
- Centric: Offers a wide range of pads, including their Posi Quiet and C-TEK lines, providing a good balance of performance and value.
- Wagner Brakes: A long-standing name in the aftermarket, Wagner's OEX and SD lines are designed for trucks and SUVs and can be a suitable choice for the Sprinter.

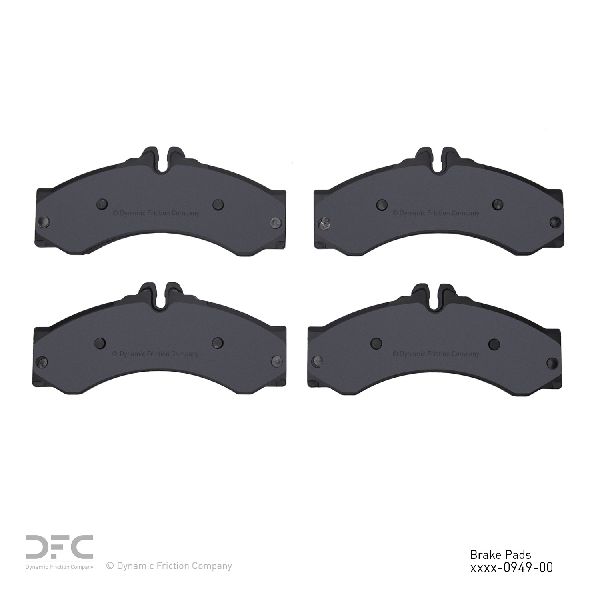

- Dynamic Friction: This brand offers quality pads that meet or exceed OEM standards and are a solid choice for a standard replacement.
Estimated Costs for Brake Pad Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Disc Brake Pad Set | $27 - $125 |
| New OEM Disc Brake Pad Set | $100 - $180 |
| Shop Labor (Pads Only) | $150 - $250 |
| Total (Pads & Labor) | $177 - $375 |
Note: Costs are estimates and will vary based on location, brand, and the specific services performed. It is highly recommended to replace rotors at the same time, which will add to the total cost.
Frequently Asked Questions
Do I have to replace my rotors with my brake pads?
It is highly recommended for the T1N Sprinter. The original brake system was designed for the pads and soft rotors to wear down together. If you install new pads on worn, grooved, or below-minimum-thickness rotors, you will experience reduced performance, noise, and accelerated pad wear. Most experienced Sprinter owners and mechanics replace them as a set.
What are brake pad wear sensors?
Your Sprinter has electronic wear sensors on some of the brake pads. When the pad material wears down to a specific level, the sensor makes contact with the rotor, completing a circuit and illuminating a warning light on your dashboard. When buying new pads, ensure they either come with new sensors or are compatible with them.
What's the difference between ceramic and semi-metallic pads for my Sprinter?
Semi-metallic pads, like the OEM ones, are aggressive and offer great stopping power, especially when cold. They tend to create more dust and can be noisier. Ceramic pads are known for being quiet, low-dust, and long-lasting. For a heavy Sprinter 3500, you should choose a high-quality, heavy-duty ceramic pad (like Powerstop Z36) or a premium semi-metallic pad (like ATE or Pagid) to ensure you have enough stopping power for heavy loads.
Why does my brake pedal feel soft or mushy?
T1N Sprinters are known for a specific brake pedal 'quirk'. It is common for the pedal to feel soft or sink slightly on the first application after the van has been sitting. Subsequent presses feel firm and normal. As long as the pedal becomes firm on a second pump and holds pressure, this is generally considered normal for the vehicle and not a sign of bad pads. However, if the pedal consistently feels spongy or goes to the floor, you should have the system inspected immediately.
Technical Specifications
OEM Part Numbers: 0044202420
Vehicle is equipped with electronic brake pad wear sensors. Caliper manufacturer varies between Bosch, ATE, and Wabco; visual inspection is required before ordering parts. The same pad shape is often used for the front axle and the rear axle on 3500 dually models.
