A Guide to Replacing Brake Pads on Your 2002-2006 GMC Envoy XL
Stop the noise and improve your braking by choosing the right aftermarket disc brake pads for your Envoy XL.
- For most Envoy XL owners, a quality ceramic pad from a brand like Akebono or Bosch offers the best mix of quiet, clean, and reliable performance for daily driving.
- If you tow or carry heavy loads, consider a semi-metallic pad from a brand like Powerstop or Raybestos for better heat management.
- It is strongly recommended to replace the brake rotors at the same time as the pads to ensure proper performance and safety.
- Symptoms like a high-pitched squeal are a warning, but a grinding noise means you should stop driving and have the brakes serviced immediately.
Symptoms of Worn Brake Pads on an Envoy XL
Your GMC Envoy XL will usually tell you when it's time for new brake pads. The most common sign is a high-pitched squealing noise when you apply the brakes. This sound comes from a small metal tab called a wear indicator that contacts the brake rotor when the pad material is low. If you let it go too long, this squeal can turn into a harsh grinding noise, which often means the pads are completely worn and you are causing damage to the brake rotors.
A grinding sound indicates a serious problem. It means metal is grinding against metal, which severely reduces stopping power and can lead to more expensive repairs. If you hear grinding, you should have your brakes inspected immediately.
Choosing the Right Aftermarket Brake Pads
For a vehicle like the 2002-2006 Envoy XL, aftermarket brake pads often provide better value and performance than original equipment (OEM) parts. You have two main material choices:
- Ceramic Pads: These are a great choice for daily driving. They are known for being very quiet and producing very little brake dust, which helps keep your wheels clean. They offer smooth, consistent stopping power for commuting and family hauling. Brands like Akebono, Bosch, and ACDelco Professional series offer quality ceramic options.
- Semi-Metallic Pads: If you use your Envoy XL for towing or live in a hilly area, semi-metallic pads might be a better fit. They are excellent at managing heat and provide strong braking performance under heavy loads. However, they can be noisier and produce more dust than ceramic pads. Brands like Powerstop, Raybestos, and Wagner are well-regarded in this category.
Pro Tip: Replace Rotors with Pads
While not always required, it is highly recommended to replace your brake rotors at the same time as your pads, especially on a heavier vehicle like the Envoy XL. New, flat rotors ensure your new pads wear evenly and provide the best possible braking performance. If your old rotors have grooves or a noticeable lip on the edge, they should be replaced.
Aftermarket Brand Quality Tiers
With so many brands available, it can be hard to choose. Here’s a general breakdown to help you decide:
- Premium (Akebono, Brembo, Performance Friction): These brands are known for excellent engineering, quiet operation, and low dust (especially Akebono). They are often considered an upgrade over original parts.

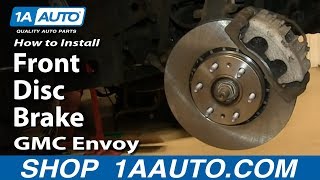

- Daily Driver / Heavy Duty (Powerstop, Raybestos, Wagner, Bosch, ACDelco Gold/Professional): This is the sweet spot for most Envoy XL owners. These brands offer a great balance of performance, durability, and price. Powerstop is particularly popular for truck and SUV kits that often include new rotors. 🎬 Watch this complete walkthrough for replacing your brake kit.
- Economy (Pronto, Dynamic Friction, Total Stopping Solutions, some store brands): These pads will get the job done at the lowest cost, but they may not last as long, be as quiet, or perform as well as higher-tier options. They are a budget-conscious choice for light-duty use.
Known Issues, Recalls, and Service Bulletins
While there are no specific recalls for the brake pads themselves on the 2002-2006 GMC Envoy XL, there are some related items to be aware of. Several Technical Service Bulletins (TSBs) have been issued for brake-related noises and ABS system issues on this platform. For example, some owners report a dragging or hot-feeling brake on one wheel, which can be caused by a sticking caliper piston or a failing brake hose, not just the pads. Other TSBs mention applying specific grease to brake pad abutments to resolve squealing noises. 🎬 See how to diagnose and fix common brake squeaks. If you experience an ABS warning light, it could be related to a known issue with the electronic brake control module (EBCM) ground.
Cost of Replacing Disc Brake Pads on a 2002-2006 GMC Envoy XL
| Part / Service | Estimated Cost |
|---|---|
| Aftermarket Brake Pad Set (per axle) | $32 - $250 |
| Shop Labor (per axle) | $100 - $233 |
| Total Professional Replacement (per axle) | $132 - $483 |
| Pads & Rotors DIY (per axle) | $90 - $450 |
Frequently Asked Questions (FAQ)
Do I have to replace my rotors when I replace my brake pads?
It is highly recommended. New pads on worn or grooved rotors can lead to noise, vibration, and reduced pad life. For a heavy SUV like the Envoy XL, starting with fresh, flat rotors is the best practice for safety and performance.
What's the difference between ceramic and semi-metallic pads?
Ceramic pads are quieter, produce less dust, and are great for daily driving. Semi-metallic pads are better for heavy-duty use like towing because they handle heat better, but they can be noisier and create more dust.
How often should I replace the brake pads on my Envoy XL?
Brake pad life varies greatly depending on your driving habits, but a general range is 30,000 to 70,000 miles. If you do a lot of city driving or towing, you will be on the lower end of that range. Regular inspection is the best way to know for sure.
Can I replace the brake pads on my Envoy XL myself?
Yes, replacing brake pads and rotors is a common DIY job for those with basic mechanical skills and the right tools. You will need a jack, jack stands, a lug wrench, a C-clamp or brake piston tool, and a basic socket set. Always prioritize safety by using jack stands and following a reliable guide.
🎬 Follow this step-by-step guide to replace your rear brakes.Helpful Videos
Technical Specifications
The 2002-2006 GMC Envoy XL uses a dual-piston front caliper and a single-piston rear caliper. Brake pad replacement requires compressing these pistons back into the caliper to make room for the new, thicker pads.
