GMC Envoy XL (2002-2006) Engine Camshaft Position Sensor Guide
Everything an owner needs to know about replacing a failing camshaft position sensor in their Envoy XL.
- A failing camshaft sensor will almost always trigger a Check Engine Light with code P0340.
- Symptoms include hard starting, rough idle, stalling, and poor acceleration.
- Replacement on the 4.2L engine is very easy, requiring only basic tools and access from the top of the engine.
- For an OEM-quality repair, choose brands like Delphi or Hitachi; they are often the original suppliers.
Is Your Envoy XL Running Rough? It Could Be the Camshaft Sensor.
A failing camshaft position sensor on the 2002-2006 GMC Envoy XL is a common issue that can cause noticeable engine problems. Because this sensor is vital for engine timing, a bad signal can make your truck hard to start, run poorly, or even stall. Fortunately, this is a part that is easy to access and replace on the 4.2L inline-6 engine, making it a straightforward DIY job for many owners.
Check Engine Light is a Key Symptom
The most common sign of a problem is an illuminated Check Engine Light. A code scanner will often show a P0340 or related code, which points directly to a fault in the 🎬 See how to diagnose and fix the P0340 code camshaft position sensor circuit. Ignoring this can lead to more serious running issues and leave you stranded.
🎬 Watch: 7 common symptoms of a failing camshaft sensorChoosing the Right Aftermarket Sensor
When replacing the camshaft position sensor, you don't have to go to the dealer. Many aftermarket brands offer quality replacements. They can be grouped into different quality tiers.
- Premium Aftermarket (OEM-Equivalent): Brands like Delphi and Hitachi are often the original equipment manufacturers for General Motors. Choosing one of these is like getting the dealer part without the dealer price. They are engineered to the original specifications for fit and performance.
- Quality Aftermarket: Brands such as Standard Ignition (SMP), NGK/NTK, and Walker Products have a solid reputation for producing reliable sensors that meet or exceed OEM standards. Dorman can be a good option, especially if they have re-engineered the part to fix a known flaw, but their quality can sometimes be inconsistent.
- Economy Brands: This category includes brands like URO Parts, Skyward, and other less-known names. While the low price is tempting, these sensors may have a shorter lifespan or less consistent performance. They are best considered for a temporary fix or if on a very tight budget.
Pro Tip: Consider the OEM Part Number
The original GM and ACDelco part number for this sensor is often 213-1557 or 12584079. Cross-referencing this number when shopping can help ensure you are buying an exact match for your Envoy XL.
Installation: An Easy DIY Fix

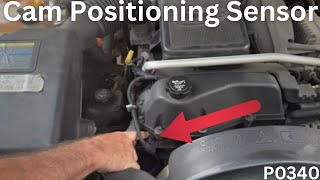

For the 4.2L engine in the 2002-2006 Envoy XL, the camshaft position sensor is located on the front, left side of the engine, near the oil fill cap. It is held in by a single 10mm bolt. The replacement process is simple: disconnect the battery, unplug the electrical connector, remove the bolt, and swap the old sensor for the new one. A little clean motor oil on the new sensor's O-ring will help it slide in easily.
🎬 Watch this step-by-step GMC Envoy sensor replacement walkthroughFrequently Asked Questions
Can a bad camshaft sensor cause my Envoy XL to not start?
Yes. If the engine computer doesn't receive a signal from the sensor, it won't know when to fire the spark plugs or injectors, which can result in a crank-no-start condition.
What is the difference between the camshaft and crankshaft sensor?
They work together. The camshaft sensor tracks the position of the top part of the engine (camshaft and valves), while the crankshaft sensor tracks the bottom part (crankshaft and pistons). The computer compares both signals to ensure the engine is perfectly timed.
Are there any recalls for the camshaft position sensor on the Envoy XL?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls for the camshaft position sensor on the 2002-2006 GMC Envoy XL. There are some Technical Service Bulletins (TSBs) related to wiring harnesses that can chafe and cause sensor circuit codes, but not for the sensor itself.
Do I need to do a "relearn" procedure after installing a new sensor?
For this specific vehicle and sensor, a relearn procedure is generally not required. The engine computer will typically recognize the new sensor signal after the battery has been reconnected and the engine has been started.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12584079 213-1557
The sensor for the 2002-2006 GMC Envoy XL is a three-pin magnetic sensor that mounts to the front of the cylinder head.
