Engine Water Pump Replacement Guide for the 2002-2006 Honda Civic
Keep your Civic's D17 engine from overheating by understanding when and how to replace your water pump.
- Always replace the water pump at the same time as the timing belt on a 2002-2006 Civic.
- A coolant leak from the weep hole is a clear sign the water pump is about to fail.
- Use only Honda Type 2 (blue) coolant to protect the new pump and cooling system.
- Choosing a complete timing belt kit from a brand like Gates, Dayco, or Aisin is a reliable and cost-effective repair strategy.
Symptoms of a Failing Water Pump
A bad water pump usually gives you a few warning signs before it fails completely. Ignoring these can lead to serious engine damage from overheating. Be aware of these common symptoms:
- Coolant Leaks: This is the most common sign. You might see puddles of green or blue fluid 🎬 Watch this video to see how to trace a major leak. under the front-center of your car. A slow leak may leave a colored residue on the engine. The leak often comes from a special "weep hole" designed to show when the internal seals are failing.
- Engine Overheating: If the pump can't circulate coolant, the engine's temperature will rise quickly. Your temperature gauge on the dashboard will spike into the red, or a warning light may come on. If you see this, pull over and shut off the engine as soon as it is safe to do so to prevent major damage.
- Whining or Grinding Noise: A high-pitched whining sound from the engine area that changes with engine speed can point to a bad water pump. This is often caused by a loose pulley or failing bearings inside the pump.
- Steam from Engine Bay: If the engine is overheating badly, the coolant can boil. This will create steam that comes from under the hood. This is a critical situation indicating a severe cooling system failure. 🎬 See a breakdown of common symptoms and how to diagnose them.
The Timing Belt Connection
On the 2002-2006 Honda Civic with the 1.7L D17 engine, the water pump is driven by the timing belt. Because of this, it is highly recommended to replace the water pump whenever you replace the timing belt. The labor to access both parts is nearly identical, so replacing them together saves you a significant amount of money and prevents a future failure. A leaking water pump can saturate the timing belt with coolant, causing it to slip or break, which will lead to severe engine damage.

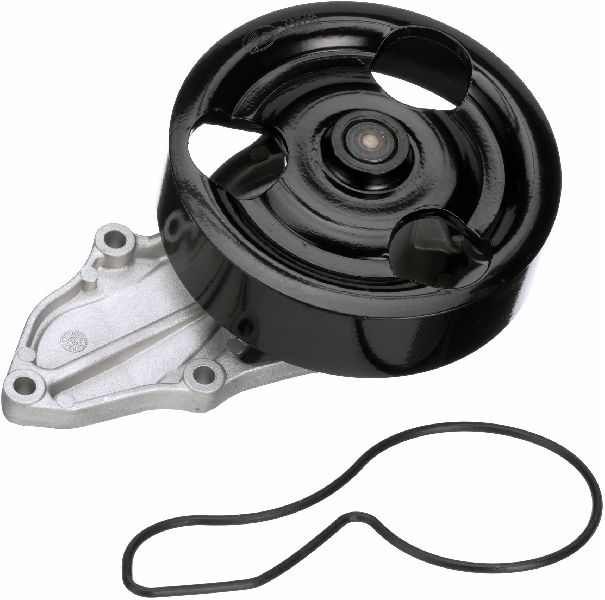

Choosing the Right Aftermarket Water Pump
When replacing the water pump, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. While OEM parts are a guaranteed fit, high-quality aftermarket parts can offer similar performance at a better price. For a critical part like the water pump on this Civic, it's best to avoid the cheapest options and choose a reputable brand.
Pro Tip: Many reputable brands like Gates and Dayco offer complete timing belt kits that include a new water pump, timing belt, and tensioner. Buying a complete kit is often the most cost-effective and reliable way to perform this repair, ensuring all related components are new.

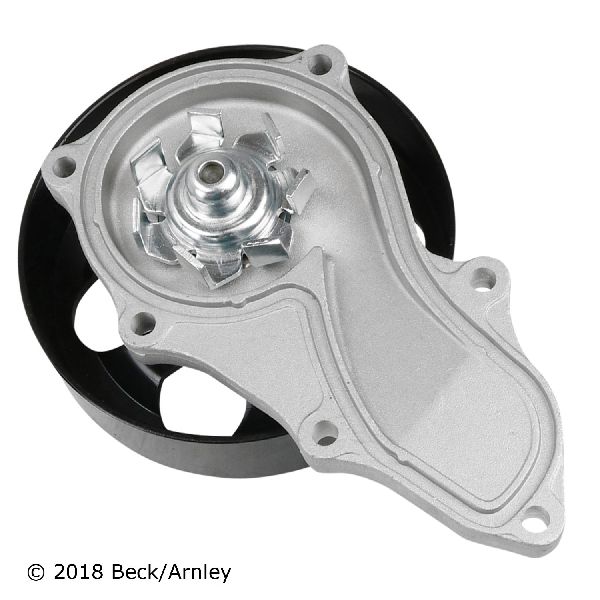

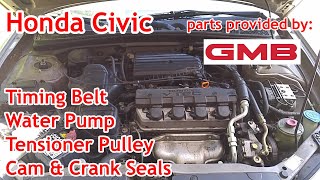

🎬 Watch a full walkthrough of the timing belt and pump replacement.- Premium Brands (Gates, Dayco, Beck Arnley): Gates and Dayco are well-known manufacturers of belts and cooling system components, and are often OEM suppliers for many car brands. Their kits are a popular and reliable choice for this job. Beck Arnley is known for sourcing parts from various manufacturers, sometimes even re-boxing the original OEM part.

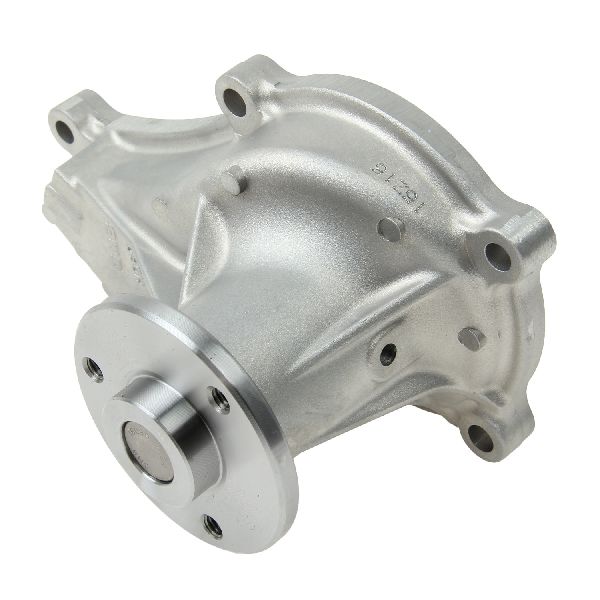

- OEM-Equivalent Brands (GMB, Graf): GMB is a large manufacturer that produces water pumps for many carmakers. Aisin is another highly-regarded brand, often cited by Honda owners as being the OEM supplier and a top choice for reliability. While not on the provided list, Aisin kits are a benchmark for quality.
- Standard/Budget Brands (US Motor Works): These brands provide a more affordable option. While they can be a good value, for a labor-intensive job like this one, investing in a premium or OEM-equivalent brand is recommended for long-term peace of mind.
Replacement Costs
The cost to replace the water pump is mostly labor due to its location behind the timing belt covers. Since the timing belt service and water pump replacement are done together, the costs reflect the combined job.
| Item | Estimated Cost |
|---|---|
| Aftermarket Timing Belt Kit with Water Pump | $100 - $250 |
| Shop Labor | $400 - $900 |
| Total Estimated Cost (Aftermarket Parts) | $500 - $1150 |
| Total Estimated Cost (Dealer/OEM Parts) | $950 - $1530 |
Frequently Asked Questions (FAQ)
Do I really have to replace the water pump with the timing belt?
Yes. The water pump is located behind the timing belt. The labor to get to it is the most expensive part of the job. If the water pump fails after you've replaced the timing belt, you will have to pay for the same labor all over again. It is standard practice for all mechanics to replace them together.
What kind of coolant should I use in my 2002-2006 Civic?
You should use Honda Genuine Antifreeze/Coolant Type 2. This is a blue-colored coolant specifically formulated for Honda aluminum engines. Using the wrong type of coolant can lead to corrosion and premature failure of cooling system components, including the new water pump.
Are there any recalls or TSBs for the water pump on this Civic?
There are no specific recalls for the water pump itself on the 2002-2005 models. However, Honda did issue a Technical Service Bulletin (TSB 08-038) for some 2006 Civic models regarding a water pump pulley flange that could crack, potentially causing the drive belt to break. Another TSB notes that early models (2001-2003) may require an updated, longer timing belt tensioner bolt when the tensioner is replaced.
Can a bad water pump cause a Check Engine Light?
A failing water pump itself usually won't trigger a specific code. However, if the pump fails and the engine overheats, the coolant temperature sensor can trigger a code like P0217, which indicates an engine overheat condition.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19200-PLM-A01
Drive Type: Timing Belt Housing Material: Aluminum Impeller Material: Steel
