A Guide to the Transmission Filter Kit for the 2002-2006 Hummer H1
Keep your H1's heavy-duty transmission protected by choosing the correct filter kit for your specific model year.
- You MUST identify your transmission: 2002-2005 models use a GM 4L80-E, while the 2006 Alpha uses an Allison 1000. The filter kits are different.
- For 2006 Alpha owners, consider a performance aftermarket spin-on filter for better filtration and protection.
- Symptoms like whining or rough shifting are serious warnings that your filter needs to be changed to avoid transmission damage.
- Changing the transmission filter is a manageable DIY job for those with basic tools, but it can be messy.
The Most Important Check: Is Your H1 an Alpha?
Before buying a transmission filter kit for your 2002-2006 Hummer H1, you must know which transmission your vehicle has. This is the most common mistake owners make.

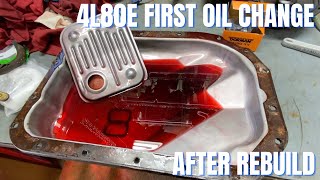

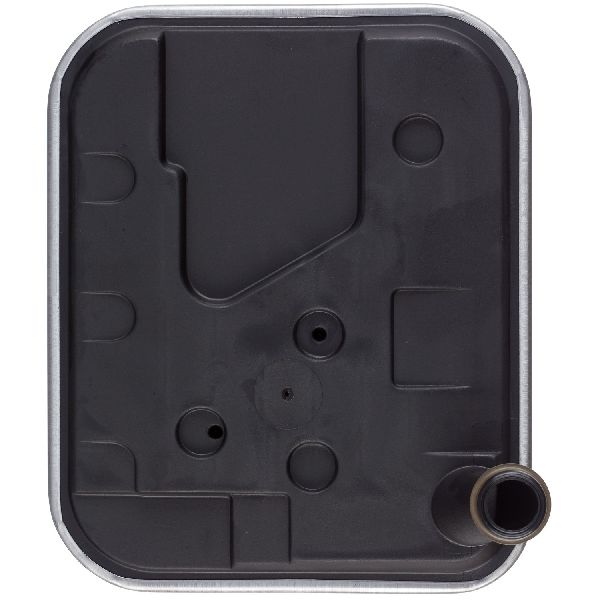

2002-2005 Hummer H1: These models are equipped with the GM 4L80-E 4-speed automatic transmission. 🎬 See this walkthrough for replacing a 4L80E transmission filter They use a single, flat filter located inside the transmission oil pan.

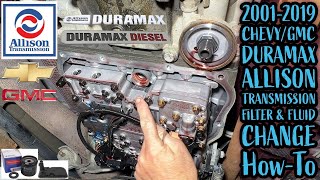

2006 Hummer H1 "Alpha": The Alpha model was a major upgrade, featuring the 6.6L Duramax engine and the Allison 1000 5-speed automatic transmission. This system uses two filters: a flat filter inside the pan (sump filter) and an external, spin-on filter that looks like an engine oil filter.

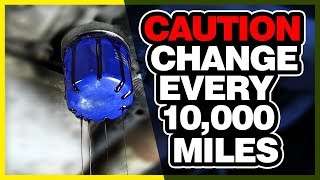

🎬 Watch: How to change the Allison 1000 external spin-on filterThese two systems use completely different filter kits. Always verify your H1's model year and transmission before purchasing a part.
Symptoms of a Clogged Transmission Filter
A dirty or clogged filter will struggle to let fluid pass through, starving the transmission. Watch for these warning signs:

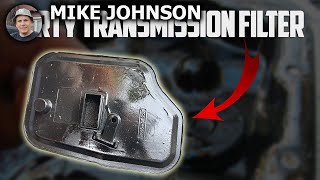

🎬 Watch: 6 symptoms of a clogged or bad transmission filter- Rough or Delayed Shifting: The vehicle may hesitate or jerk when shifting gears.
- Whining Noise: A whining or whistling sound coming from the transmission area can indicate the pump is straining to pull fluid through a clogged filter.
- Burnt Smell or Dark Fluid: If you check your transmission fluid and it's dark brown or smells burnt, it's overdue for a change and the filter is likely saturated with contaminants.
- Slipping Gears: The transmission may slip out of gear if it can't maintain proper fluid pressure.
Choosing the Right Aftermarket Filter Kit
For a heavy-duty vehicle like the H1, filter quality matters. While OEM is always a safe bet, reputable aftermarket brands offer a good balance of quality and value.
Brand Quality Tiers
- Premium Aftermarket (Wix): Wix is a well-respected brand in the filter industry and a popular choice among forum users. They are known for quality construction and reliable performance. For the 2006 Alpha, the Wix 57701 is a direct cross-reference to the Allison spin-on filter.
- Standard Aftermarket (ATP, Premium Guard): ATP is a widely available brand. They are often considered repackagers but are generally reliable for standard use. Some users appreciate their "third-hand" gaskets, which have smaller bolt holes to hold them in place during installation. Premium Guard is another available option in this tier.
- Performance Upgrade (2006 H1 Alpha Only): For the Allison 1000 transmission, brands like PPE offer upgraded "double-deep" spin-on filters. These are physically larger, contain more filter material (over twice the surface area), and can filter out smaller particles than the stock filter, offering superior protection.
| Brand Tier | Typical Price Range |
|---|---|
| Standard Aftermarket (ATP, Premium Guard) | $27 - $50 |
| Premium Aftermarket (Wix) | $45 - $70 |
| Performance Upgrade (Allison Spin-on) | $30 - $85 |
Pro Tip: When changing the filter, always clean the magnet found in the bottom of the transmission pan. This magnet collects metal shavings, and cleaning it gives you a good indication of your transmission's health.
Frequently Asked Questions
Do I need to change both filters on my 2006 H1 Alpha?
It is highly recommended. The external spin-on filter is easy to change and captures most of the fine particles. The internal sump filter is changed when you drop the pan for a full service. Most owners change the spin-on filter with every fluid change and the internal filter every other change, or as recommended by Allison.
Is it better to do a transmission flush or just a filter and fluid change?
A simple drain, filter change, and refill is the safest and most common DIY method. This replaces a large portion of the fluid. A full "flush" at a shop uses a machine to exchange nearly all the fluid but is debated. If your fluid has never been changed at high mileage, a powerful flush can sometimes dislodge debris and cause new problems. A standard filter and fluid change is the manufacturer-recommended procedure.
What kind of fluid should I use?
Always check your owner's manual. The 4L80-E transmission in 2002-2005 models typically uses a DEXRON-rated fluid. The Allison 1000 in the 2006 Alpha has specific fluid requirements; using an Allison-approved fluid is critical for performance and longevity.
Are there any recalls on the H1 transmission filter?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or widespread technical service bulletins (TSBs) for the transmission filters on 2002-2006 Hummer H1 models. Issues are typically related to normal maintenance schedules.

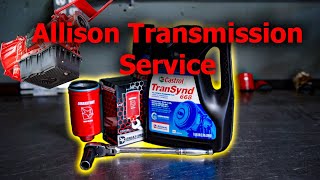

Helpful Videos
Technical Specifications
OEM Part Numbers: 29539579 (Allison Spin-on)
Transmission Type: GM 4L80-E (2002-2005) or Allison 1000 (2006 Alpha). Filter Type: Internal pan filter (4L80-E) or Internal pan filter + External spin-on filter (Allison 1000).
