A/C Compressor Guide for the 2002-2006 Mercedes-Benz ML500
Keep your ML500's cabin cool by understanding how to choose the right replacement A/C compressor.
- A failing A/C compressor will cause warm air, strange noises, or fluid leaks.
- Always replace the receiver/drier and expansion valve with the compressor to validate the warranty and ensure longevity.
- Choose high-quality aftermarket brands like Denso or Valeo, which are often the original equipment suppliers for Mercedes.
- A catastrophic failure can send metal debris through the system, requiring a full system flush and replacement of multiple parts.
Is Your ML500's A/C Blowing Warm Air?
If your 2002-2006 Mercedes-Benz ML500 is struggling to keep you cool, a failing A/C compressor is a likely suspect. This component is critical for a functioning A/C system, and when it fails, you'll be left with warm air and frustration. Understanding the signs of failure and how to choose a quality aftermarket replacement can save you time and money.
Common Symptoms of a Failing A/C Compressor
A bad A/C compressor can show several signs. Being aware of them can help you diagnose the problem before it gets worse.
- Warm Air from Vents: The most obvious symptom is a lack of cold air, even when the A/C is turned to its coldest setting. This happens when the compressor can no longer effectively pressurize the refrigerant.
- Loud Noises: Grinding, rattling, or squealing sounds from the engine bay when the A/C is on often point to a failing compressor. These noises can come from worn internal bearings or a damaged pulley.
- Visible Leaks: The compressor contains oil to lubricate its moving parts. If you see oily residue on the compressor body or underneath it, the internal seals may have failed, causing a leak of both oil and refrigerant.
- Compressor Clutch Issues: Although the ML500 uses a clutchless design, the pulley and bearing can still fail. In one severe case, the entire pulley broke off the compressor 🎬 Watch a video of a failed ML500 compressor pulley. while the vehicle was being driven.
Catastrophic Failure: "Black Death"
A severe internal failure of the compressor can send metal shavings throughout the entire A/C system. This is often called "black death." If this happens, you must replace not only the compressor but also the receiver/drier (accumulator) and expansion valve, and thoroughly flush the entire system 🎬 See how to access and replace A/C components on a W163. to remove the debris. Failure to do so will cause your new compressor to fail very quickly.
Choosing the Right Aftermarket A/C Compressor
When replacing the A/C compressor on your ML500, you have several options. While a new OEM part from a Mercedes-Benz dealer is the most expensive, high-quality aftermarket parts can offer excellent performance and value. Many aftermarket brands are the original equipment manufacturers for Mercedes-Benz.
Brand Tiers for Your ML500
Not all aftermarket brands are created equal. Here’s a breakdown of what to look for:
- Tier 1 (OEM Supplier Quality): Brands like Denso and Valeo are often the original suppliers to Mercedes-Benz. Choosing one of these brands for your ML500 is the closest you can get to the original part without the dealership price tag. They are engineered for reliability and efficiency. Mahle and Nissens are also considered high-quality European brands that manufacture to OE standards.
- Tier 2 (Reputable Aftermarket): Brands like Four Seasons and Bosch are well-known in the aftermarket. While generally reliable, some user reviews suggest a higher chance of out-of-the-box failure compared to Tier 1 brands. However, many have had good experiences with them.
- Tier 3 (Value Brands): Brands like Global Parts (GPD) and UAC are more budget-focused. While they can be a cost-effective solution, there are more reports of premature failures, such as leaking seals or clutch problems within a year.
Pro Tip: Always buy a kit. A/C compressor warranties almost always require you to replace the receiver/drier (also called an accumulator) and expansion valve at the same time. It's also essential to use the correct type and amount of PAG 46 oil.
Estimated Replacement Costs
The cost to replace the A/C compressor on your ML500 will vary based on the parts you choose and local labor rates. The job typically requires evacuating the old refrigerant, replacing the parts, and then recharging the system.
| Item | Estimated Cost |
|---|---|
| New Aftermarket A/C Compressor | $240 - $596 |
| A/C Service (Evacuate & Recharge) | $150 - $250 |
| Shop Labor (2-3 hours) | $300 - $450 |
| Total Estimated Cost | $690 - $1296 |
Frequently Asked Questions (FAQ)
Do I need special tools to replace the compressor myself?
Yes. You will need a set of A/C manifold gauges to safely evacuate and recharge the system, a vacuum pump, and specific tools like E-Torx sockets for the compressor bolts. Due to the need to handle refrigerant, this job is often best left to a professional unless you are experienced and properly equipped.
Are there any recalls on the 2002-2006 ML500 A/C system?
No, there are no specific recalls for the A/C compressor on the 2002-2006 ML500. There were recalls on other Mercedes models for improperly installed A/C drain hoses which could cause water to leak into the cabin, but this did not directly involve the compressor itself.
What type of refrigerant and oil does my ML500 use?
The 2002-2006 ML500 uses R134a refrigerant and PAG 46 compressor oil. It is critical to use only this type of oil, as using the wrong one can damage the new compressor.
Can I just replace the compressor clutch or bearing?
While it is sometimes possible to replace just the clutch bearing, it can be a difficult job. Given the age of the vehicle and the cost of labor, most mechanics recommend replacing the entire compressor assembly. Often, a complete new aftermarket compressor is cheaper than sourcing and installing just a clutch or bearing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 0012301111 0002306511 0002308111 0002308511 0002309011 0022305211
Compressor Type: Denso 7SEU16C or 7SEU17C. Refrigerant: R134a. Oil: PAG 46. Pulley: 6-groove serpentine.

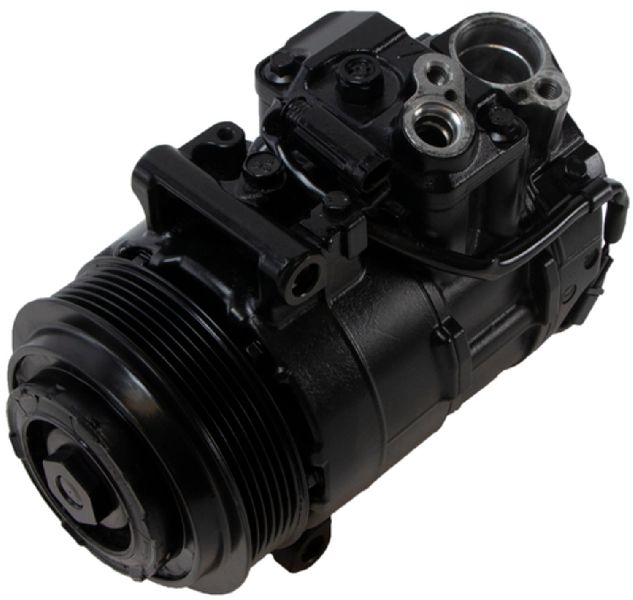

We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
