2002-2006 Nissan Sentra Automatic Transmission Speed Sensor Guide
Experiencing harsh shifts or a faulty speedometer? Your transmission speed sensor is a likely culprit.
- A bad speed sensor on a 2002-2006 Sentra causes harsh shifting, speedometer failure, and a P0720 code.
- You must confirm if you need the 'input' or 'output' speed sensor; the output sensor is the most common failure.
- Hitachi is a trusted OEM-level brand for this part, while Dorman and others offer budget-friendly alternatives.
- This is a simple DIY repair that can be completed in under an hour with basic tools.
Is Your Sentra Shifting Hard or Acting Up?
A common failure point on the 2002-2006 Nissan Sentra (B15 platform) that can cause major headaches is the automatic transmission speed sensor. When this small electronic part fails, it can mimic the symptoms of a catastrophic transmission failure, causing harsh shifting, an inaccurate speedometer, and the dreaded check engine light. 🎬 See how a faulty sensor causes stalling and shifting issues. Fortunately, it's often a simple and relatively inexpensive fix.
Input vs. Output Sensor: A Critical Distinction
Your Sentra's transmission has two similar sensors: an input speed sensor and an output speed sensor. They are not interchangeable. The output sensor is the more common failure point and is directly linked to speedometer readings and the P0720 trouble code. 🎬 Watch this step-by-step P0720 output shaft sensor replacement guide. Always confirm which specific sensor you need before purchasing, as replacing the wrong one will not solve the problem.
Choosing the Right Aftermarket Speed Sensor
When shopping for a replacement, you'll find several brands. Quality can vary, so it's important to understand the differences.
- Top Tier (OEM Supplier): Hitachi is a well-regarded brand and is often the original equipment (OE) supplier for Nissan parts. Choosing Hitachi is the closest you can get to buying a part from the dealer without the high price tag. It is considered a top-tier choice for fit and reliability.

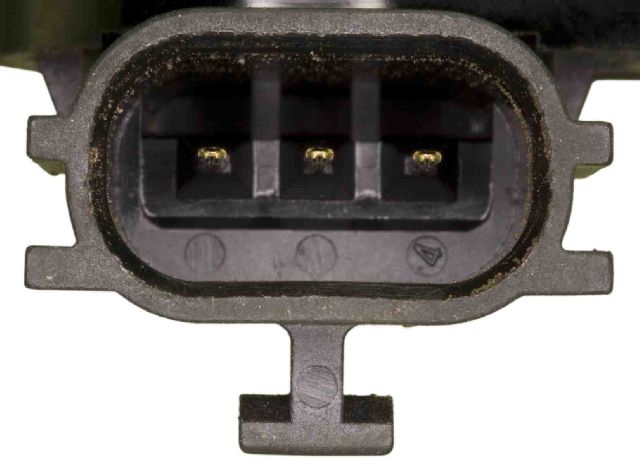

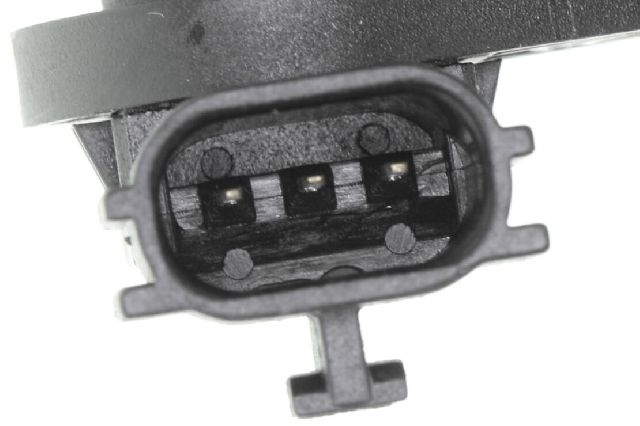

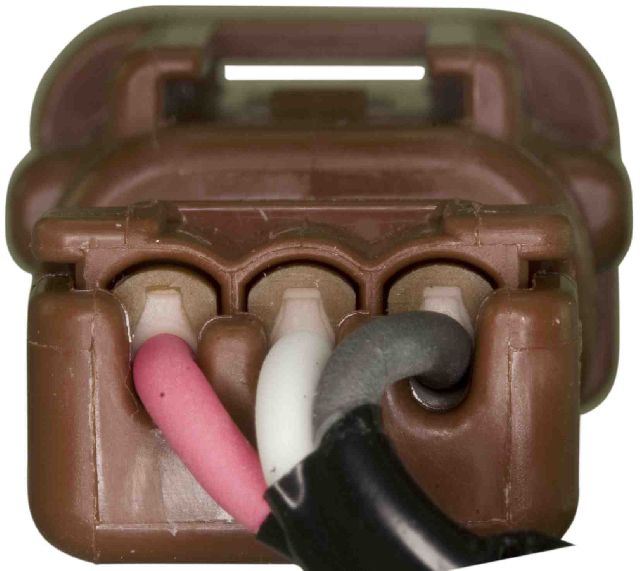

- High-Quality Aftermarket: Brands like NGK (under their NTK sensor line) and Vemo are known for producing quality electronic components that meet or exceed OE specifications. They are a solid choice for a reliable repair.

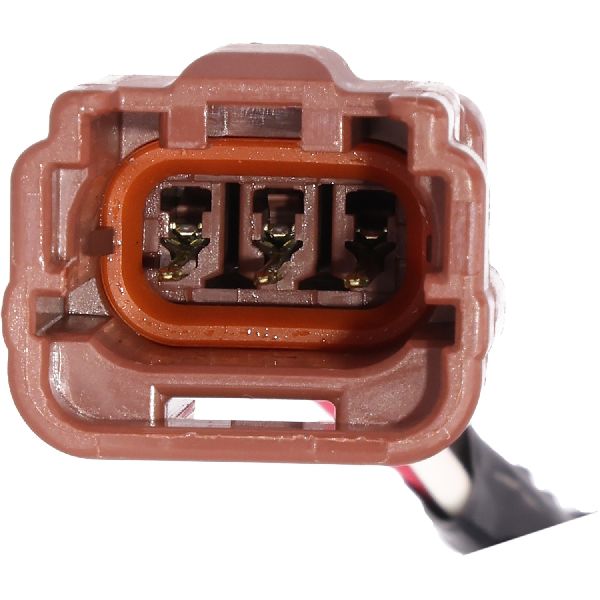

- Standard Aftermarket & Budget-Friendly: Dorman is a widely available brand that offers a direct replacement, often at a lower cost. While generally reliable, some professional mechanics prefer OEM-supplier brands for critical electronic sensors. Global Parts and other private-label brands fall into the budget category, offering a cost-effective solution, but long-term durability might be less consistent than premium brands.
Pro Tip: Given that Hitachi is a known Tier 1 OE supplier for Nissan, spending a little extra on a Hitachi sensor can provide peace of mind and potentially prevent future issues.
Cost of Replacing the Sensor
The cost to replace a transmission speed sensor is reasonable, especially if you do the work yourself. The part itself is the main expense.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Sensor | $150 - $250 |
| New Aftermarket Sensor | $43 - $145 |
| Shop Labor | $80 - $150 |
| Total (Aftermarket DIY) | $43 - $145 |
| Total (Aftermarket Installed) | $123 - $295 |
Frequently Asked Questions
Where is the speed sensor located on a 2002-2006 Sentra?
The output speed sensor is located on the exterior of the automatic transmission housing, typically on the driver's side. You will likely need to raise the vehicle and remove the driver's side front wheel and splash shield to gain clear access. It is held in by a single 10mm bolt.
Can I replace this sensor myself?
Yes, this is a very DIY-friendly repair for those with basic tools. The process involves safely lifting and supporting the vehicle, removing the wheel, locating the sensor on the transmission case, disconnecting the electrical connector, removing one bolt, and swapping the old sensor for the new one. Ensure the O-ring from the old sensor comes out with it. The entire job can usually be done in under an hour.
🎬 Watch a quick walkthrough of the speed sensor installation process.What happens if I don't replace a bad speed sensor?
Continuing to drive with a faulty speed sensor can cause ongoing transmission problems. Your transmission may shift harshly, get stuck in a single gear (limp mode), and you could experience poor fuel economy. While the car may be drivable, it is not safe or good for the transmission's long-term health.
Are there any recalls or TSBs for this issue?
There are no specific recalls for the transmission speed sensor on the 2002-2006 Sentra. However, Nissan has issued Technical Service Bulletins (TSBs) for later models regarding transmission issues like judder and hesitation, which can sometimes be sensor-related. For this generation, the most common issue is simply sensor failure due to age, heat, and electronic wear.
Helpful Videos
Technical Specifications
OEM Part Numbers: 31935-8E006 31935-8E004 31935-8E002 32702-4E814
This sensor is a 2-pin magnetic pickup sensor that generates a signal based on the rotation of a reluctor wheel inside the transmission. It is sealed with an O-ring and secured by a single bolt.
