Spark Plug Wire Set Guide for the 2002-2007 Buick Rendezvous
Get rid of engine misfires and rough idling by choosing the right spark plug wires for your Rendezvous 3.4L V6.
- This job is notoriously difficult due to the lack of access to the three rear spark plug wires; the engine must be tilted forward.
- Always replace the spark plugs at the same time as the wires to avoid paying for the difficult labor twice.
- High-quality aftermarket brands like ACDelco, Delphi, and NGK are excellent, reliable choices for this vehicle.
- This guide only applies to the 3.4L V6 engine found in 2002-2005 models; the 3.6L V6 does not use spark plug wires.
A Critical Note on Engines
This guide applies only to the 2002-2005 Buick Rendezvous equipped with the 3.4L V6 engine. The later 3.6L V6 engine uses a coil-on-plug ignition system and does not have traditional spark plug wires. Always verify your engine size before purchasing parts.
Symptoms of Failing Spark Plug Wires
Old spark plug wires can cause noticeable problems with how your Rendezvous drives. The insulation breaks down over time from heat and exposure to oil, leading to a weak or inconsistent spark. You should consider replacing your wires if you experience any of the following:
- Rough Idle: The engine may shake or vibrate when the vehicle is stopped.
- Engine Misfires: You might feel a stutter or hesitation during acceleration. A flashing Check Engine Light is a serious sign of a misfire.
- Check Engine Light: A steady Check Engine Light can be triggered by failing wires. Common codes include P0300 (Random Misfire) or P0301-P0306 for specific cylinders. 🎬 Watch: Diagnosing common misfire causes on the GM 3.4L engine
- Poor Fuel Economy: When the engine isn't running efficiently, it burns more fuel.
- Loss of Power: The vehicle may feel sluggish and slow to accelerate.
Known Issues: A Difficult Replacement Job
Replacing the spark plug wires (and spark plugs) on the 3.4L V6 in a Rendezvous is known for being a difficult job. The front three wires are easy to access, but the rear three are tucked against the firewall with very little space. To gain access, mechanics often need to remove the upper engine mounts (dog bones) and use a ratchet strap to tilt the engine forward. 🎬 See how to safely roll the engine forward for better access This is a major factor in the high labor cost for this job.
Choosing the Right Aftermarket Wires
For the Buick Rendezvous, you don't need to pay for dealership OEM parts to get great quality. Many aftermarket brands meet or exceed the original specifications. Here’s how they generally stack up:
Tier 1: OEM-Equivalent or Better

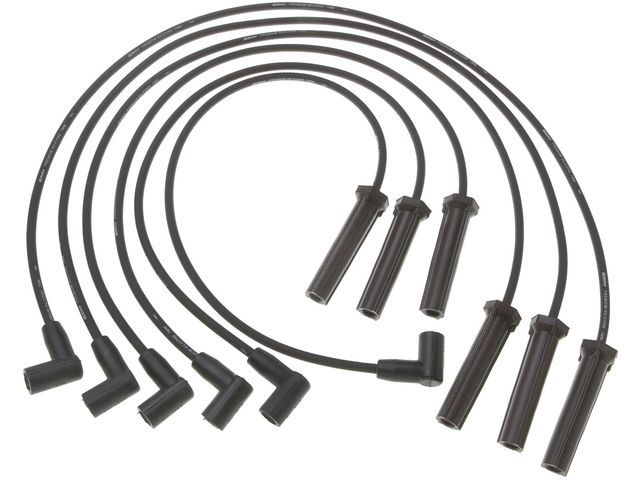

- ACDelco: As the original equipment manufacturer for GM, ACDelco is the benchmark for quality and fit. Their Professional series wires are a reliable choice.
- Delphi: Another major OEM supplier, Delphi wires are considered equal in quality to ACDelco and are often recommended by mechanics.
- NGK: Highly respected in the ignition world, NGK wire sets are known for excellent performance and durability.
Tier 2: Reputable Aftermarket

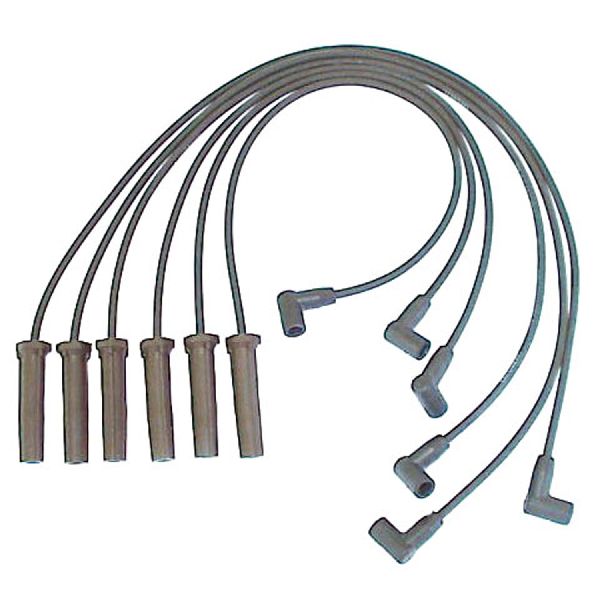

- Denso: A well-regarded brand that produces quality ignition components.

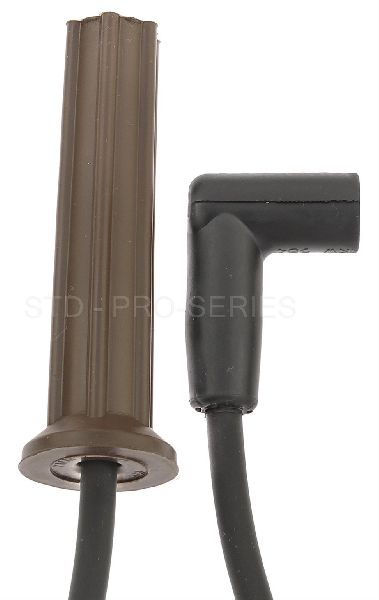

- Standard Motor Products (SMP): A long-standing aftermarket manufacturer that offers reliable wire sets.
Tier 3: Performance & Value
- Taylor Cable, MSD, Granatelli: These brands often focus on high-performance applications, offering thicker wires (e.g., 8mm or more) with features designed for higher heat resistance and conductivity. They are a good choice but may be overkill for a stock engine.

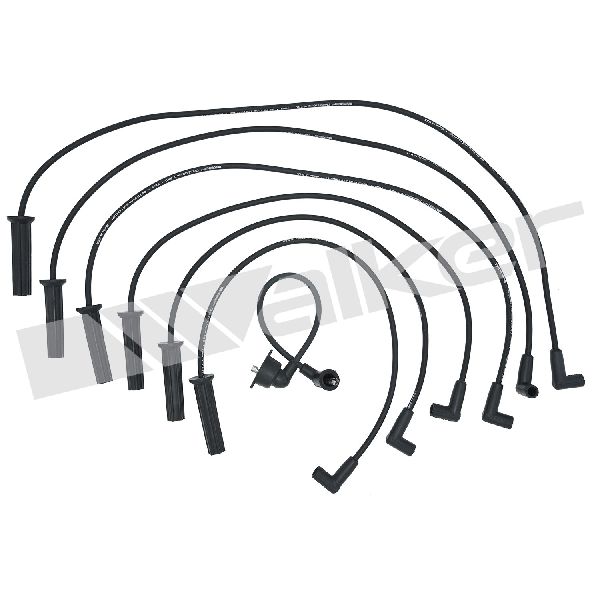

- Walker Products, Prenco: These brands typically offer a more budget-friendly option that still meets basic requirements.
Pro Tip: Since replacing the rear wires is so difficult, it's strongly recommended to replace the spark plugs at the same time. Using a quality wire set from Tier 1 or Tier 2 is a smart investment to avoid having to do the job again anytime soon.
🎬 Watch: A mechanic's trick for changing those difficult rear spark plugsCost Comparison for Spark Plug Wire Set Replacement
| Item | Cost Range |
|---|---|
| New Aftermarket Wire Set | $33.95 - $107.51 |
| Shop Labor | $329 - $483 |
| Total Estimated Cost (Aftermarket) | $363 - $591 |
Note: Labor costs are high due to the difficulty of accessing the rear cylinders. Prices can vary by location.
Frequently Asked Questions
Are there any recalls for the spark plug wires on a Buick Rendezvous?
No, there are no specific recalls for the spark plug wires. However, there was a recall (NHTSA #05V-157 / GM #05014) for the 2004 Rendezvous concerning a faulty ignition relay that could cause the engine to stall. While not directly related to the wires, it highlights the importance of a healthy ignition system.
Should I replace the spark plugs and wires at the same time?
Yes. Given the high labor cost and difficulty of accessing the rear bank of cylinders on the 3.4L engine, it is highly recommended to replace the spark plugs whenever you replace the wires, and vice-versa. This saves you from paying for the same difficult labor twice.
What is the difference between OEM and aftermarket spark plug wires for my Rendezvous?
ACDelco is the Original Equipment Manufacturer (OEM). However, top-tier aftermarket brands like Delphi and NGK are often considered to be of equal or even better quality by many technicians. For this vehicle, a quality aftermarket set is a perfectly reliable and cost-effective choice.
How do I know which wire goes to which cylinder?
The ignition coil pack on the GM 3.4L engine is typically marked with numbers indicating which tower corresponds to which cylinder. The firing order is 1-2-3-4-5-6. The rear cylinders (against the firewall) are 1, 3, and 5 (from passenger to driver side), and the front cylinders are 2, 4, and 6. It is critical to route each wire correctly to avoid misfires.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12192462 89018132 9726UU
Set of 6 wires for the GM 3.4L V6 (VIN E) engine. Wires are of varying lengths to reach each cylinder from the coil pack. The rear bank of cylinders requires longer wires and is difficult to access.
