Dodge Caravan Engine Coolant Bypass Hose and Assembly Guide (2002-2007)
Mysterious coolant leak? This guide explains the complex bypass and heater hose assemblies on your Caravan.
- This part is a complex assembly, not a simple hose; the price reflects its multiple components.
- The most common failure point is often the plastic 'Y' connector, which drips on the exhaust causing steam.
- Aftermarket brands like Continental offer a high-quality, cost-effective alternative to the more expensive OEM part.
- If you smell antifreeze but don't see a puddle, this hose assembly is a likely culprit.
Is Your Caravan's Coolant Bypass Hose Failing?
A failure in the coolant bypass or heater hose assembly is a serious issue. These hoses are made of rubber and metal and are under constant pressure and high temperatures. Over time, they will wear out. Ignoring the symptoms of a leak can lead to engine overheating and severe, expensive damage.
Watch for these common signs of failure:
- Sweet Smell: The most telling sign of a coolant leak on these vans is a distinct, sweet, syrupy smell. This is the smell of antifreeze. You might notice it inside or outside the vehicle.

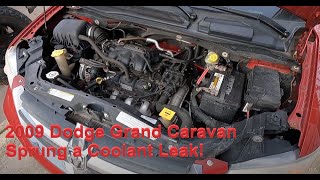

- Steam from Engine Bay: A very common issue is a leak from a plastic Y-connector that drips directly onto the hot exhaust crossover pipe. This causes the coolant to turn into steam before it can 🎬 Watch this video to help identify your caravan's coolant leak. form a puddle on the ground. If you see steam rising from the engine bay when warm, suspect a coolant leak.
- Visible Coolant Leaks: You may find puddles of green, orange, or pink fluid under the front, passenger side of the engine. Check all hose connections, especially around the clamps and plastic T-fittings.
- No Cabin Heat: If the coolant level drops too low due to a leak, there won't be enough hot fluid circulating through the heater core. This will leave you with cold air coming from your vents, even when the engine is warm.
- Engine Overheating: Any coolant leak, if left unchecked, will eventually cause the engine to overheat. If your temperature gauge climbs into the red, pull over immediately to prevent catastrophic engine damage.
Known Issues for 2002-2007 Caravans
While there are no official recalls for this specific hose assembly, these vans are known for two common failure points related to it. First, the original plastic Y-connectors become brittle with age and crack, causing leaks. Many aftermarket replacements, like those from Continental, use more durable materials. Second, on vans with rear heat, the long metal tubes running underneath the vehicle are prone to rusting and developing pinhole leaks from road salt and moisture exposure. 🎬 See how to bypass leaking rear coolant lines yourself. When replacing any part of this system, it's wise to inspect these areas carefully.
Choosing the Right Aftermarket Part
When replacing the engine coolant bypass hose assembly, you have a choice between OEM and aftermarket parts. For a vehicle of this age, a quality aftermarket part often provides the best value.
- OEM (Mopar): The original Mopar part (like part number 5005394AF for models with rear heat) offers a guaranteed perfect fit. However, it is the most expensive option and may still use the plastic connectors that are prone to failure.
- Aftermarket (Continental): Brands like Continental specialize in rubber and cooling system components. Their parts meet or exceed OEM specifications and are made from high-quality EPDM rubber to resist heat and chemical degradation. An aftermarket assembly from a reputable brand like Continental is a reliable and cost-effective choice that often improves on the original design by using more durable materials for connectors.
Pro Tip: Since you will be draining the cooling system for this repair, it is the perfect time to replace the thermostat and radiator cap. These are inexpensive parts that are critical to the cooling system's performance. Also, always use new hose clamps to ensure a tight, leak-free seal.
Cost to Replace a Dodge Caravan Engine Coolant Bypass Hose Assembly
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Assembly (Continental) | $80.54 |
| New OEM Assembly (Mopar) | $150 - $250+ |
| Shop Labor | $125 - $250 |
Frequently Asked Questions
What is a 'molded' hose assembly?
A molded hose assembly is manufactured in a specific, pre-formed shape to fit perfectly in your Caravan's engine bay. It's not a straight piece of hose. Using the correct molded assembly is critical to avoid kinks or contact with other moving parts, which could restrict coolant flow or cause damage.
Is this the same as a radiator hose?
No. Radiator hoses are the large diameter hoses that connect the engine directly to the top and bottom of the radiator. The bypass and heater hose assembly is a separate system of smaller diameter hoses that circulates coolant for the purpose of cabin heating and engine warm-up.
Can I replace just the broken plastic 'Y' connector?
Yes, repair kits and individual connectors are available. However, if the plastic connector has failed due to age, the rubber hoses connected to it are likely just as old and brittle. Replacing the entire assembly is often the more reliable long-term repair and prevents you from having to do the job twice when a hose fails a few months later.
Why is this part so much more expensive than a simple hose?
The $80 price point reflects that this is a complex assembly, not just a single hose. It includes multiple pre-formed rubber hoses, metal tubing, and pre-installed connectors, all engineered to fit your specific vehicle configuration (with or without rear heat). The complexity and number of components justify the higher cost compared to a simple radiator or heater hose.

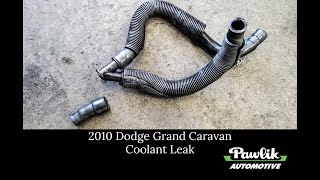

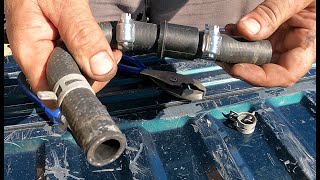

Helpful Videos
Technical Specifications
OEM Part Numbers: 5005394AF 5005394AE 5005394AD
Molded multi-part assembly of EPDM rubber and aluminum tubing. Designed for models with and without auxiliary rear heaters. Includes pre-installed connectors and clamps.
