Guide to the Engine Timing Belt Kit for 2002-2007 Dodge Caravan 2.4L
This guide covers only the 2.4L 4-cylinder engine; the 3.3L and 3.8L V6 engines use a timing chain.
- This part is ONLY for 2002-2007 Dodge Caravan models with the 2.4L 4-cylinder engine.
- The 2.4L is an interference engine; a broken timing belt will cause catastrophic engine damage.

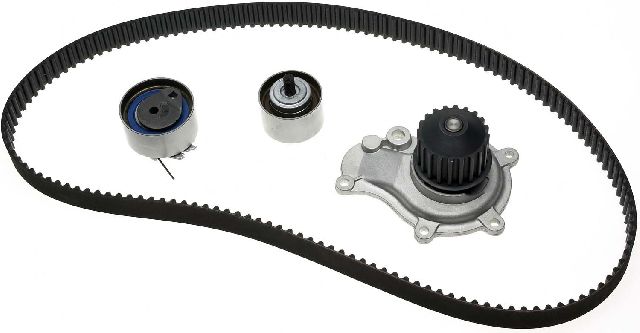

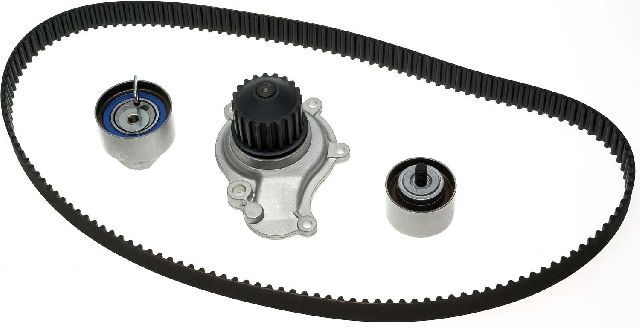

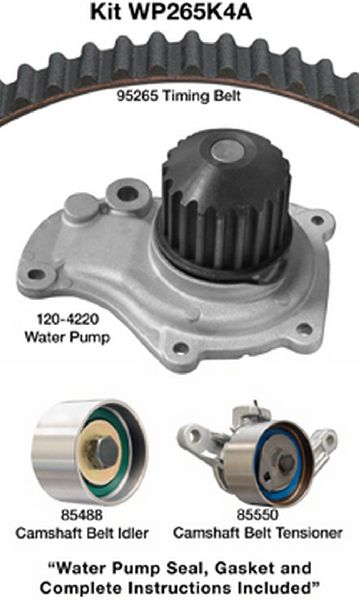

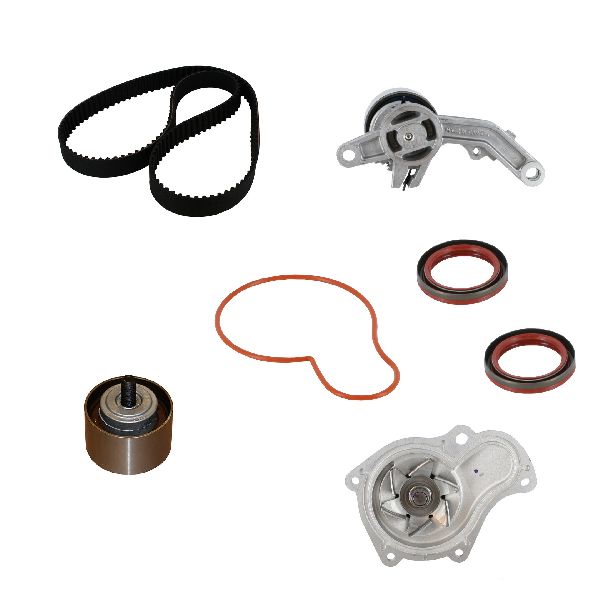

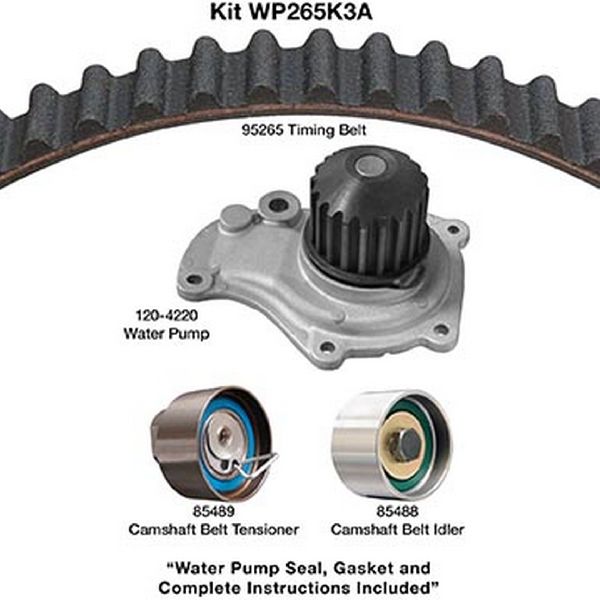

- Always replace the complete kit: belt, water pump, tensioner, and idler pulleys.
- For this critical job, choosing a premium aftermarket brand like Gates, Continental, or Dayco is strongly recommended.
Is This The Right Part For Your Van?
This is the most important question. For the 2002-2007 Dodge Caravan, only models with the 2.4L 4-cylinder DOHC engine use a timing belt. If your van has the more common 3.3L or 3.8L V6 engine, it uses a timing chain, and this guide does not apply to your vehicle. Always verify your engine size before shopping for parts.
Warning: Interference Engine
The 2.4L engine is an interference design. This means if the timing belt breaks while driving, the pistons will collide with the engine valves, causing severe and often irreparable engine damage. Do not delay this maintenance. The recommended replacement interval is typically every 90,000 miles, but you should consult your owner's manual for the specific schedule.
Symptoms of a Failing Timing Belt or Water Pump
A timing belt can fail without warning, but sometimes there are signs of a problem with the system. If you notice any of these, get your vehicle inspected immediately.
- Ticking or Squeaking Noises: A ticking sound from the front of the engine can point to a worn belt, while a squeal or grinding noise often means a failing bearing in the water pump, tensioner, or idler pulley.

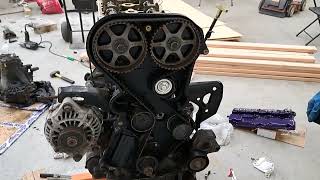

- Engine Misfires or Rough Idle: If the belt has slipped a tooth, it can throw off the engine's timing, causing poor performance and a Check Engine Light. 🎬 See how to properly set the timing on your Dodge engine.
- Coolant Leaks or Overheating: Puddles of coolant under the front of the engine or a rising temperature gauge are classic signs of a failing water pump.
- Engine Won't Start: If the belt has completely broken, the engine will turn over but will not start.
Choosing the Right Aftermarket Kit
For a critical job like this, part quality matters. You are replacing the belt, tensioner, idlers, and water pump all at once to save on labor and ensure all components are fresh. Here’s a breakdown of common aftermarket brands.
| Brand Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| Premium Brands | Gates, Continental, Dayco | These brands are often original equipment (OE) suppliers to automakers. They are known for high-quality belts, bearings, and water pumps that are designed to meet or exceed factory specifications. For a critical part like a timing belt, investing in a premium kit is highly recommended for reliability and peace of mind. |
| Standard/Value Brands | GMB, US Motor Works | These brands offer a more budget-friendly option. GMB is a known manufacturer of bearings and water pumps and supplies some carmakers. US Motor Works also provides complete kits. While often sufficient, some user reviews suggest a higher potential for premature failure of components like tensioners or seals compared to premium brands. Given the catastrophic result of a failure, carefully consider the trade-off between cost and potential risk. |
Pro Tip: Always Replace Everything in the Kit
The majority of the cost for this job is labor. It makes no sense to pay a mechanic to take the engine apart and only replace the belt. A failing water pump bearing or tensioner will destroy your new belt. Always install all the components that come in your new kit—belt, water pump, tensioner, and all idler pulleys.
🎬 Watch this complete step-by-step replacement walkthrough for the 2.4L engine.Frequently Asked Questions (FAQ)
Why do I have to replace the water pump with the timing belt?
The water pump is located behind the timing belt and is driven by it. Accessing the water pump requires the exact same labor-intensive disassembly as replacing the timing belt. Water pumps have a limited lifespan, and if the old one fails after you've installed a new belt, you'll have to pay for the entire job all over again. Replacing them together is a standard, cost-effective preventative measure.
What is the timing belt replacement interval for the 2.4L Caravan?
The recommended replacement interval is typically around 90,000 miles. However, age is also a factor. Rubber degrades over time, so if the vehicle is over 7-10 years old, the belt should be replaced regardless of mileage. Always check your owner's manual for the manufacturer's specific recommendation.
My van has a 3.3L V6. Do I need to change a timing belt?
No. The 3.3L and 3.8L V6 engines used in the 2002-2007 Dodge Caravan have a timing chain, not a belt. Timing chains are designed to last much longer and do not have a scheduled replacement interval. This guide and these parts are only for the 2.4L 4-cylinder engine.
Are there any recalls for the timing belt on the 2.4L Caravan?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or specific Technical Service Bulletins (TSBs) for the timing belt on the 2002-2007 Dodge Caravan with the 2.4L engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4621844 5010371AA 5083726AB
This guide applies to the 2.4L DOHC EDZ engine. There are two different tensioner designs for this engine; a first design and a second design. It is critical to verify which design your vehicle has before ordering parts. The VIN code may also be required to ensure correct fitment.
