Engine Water Pump Guide for the 2002-2007 Dodge Caravan
Keep your Caravan's engine from overheating by understanding the signs of a failing water pump and how to choose a quality replacement.
- A coolant leak from the front passenger side is the most common sign of a failing water pump.
- Do not drive if the engine is overheating, as it can lead to catastrophic engine damage.
- Prepare for the possibility of seized and broken mounting bolts; using new, higher-grade bolts with anti-seize is highly recommended.
- It is cost-effective to replace the serpentine belt, tensioner, and thermostat at the same time as the water pump.
Is Your Caravan's Water Pump Failing?
A bad water pump is a serious issue. If it fails completely, your engine will quickly overheat, which can lead to major damage like a warped cylinder head or a blown head gasket. It's important to recognize the warning signs early to prevent a small problem from becoming a costly engine repair.
Key Symptoms of a Bad Water Pump
Look for these common symptoms to catch a problem before it gets worse:
- Coolant Leaks: This is the most common sign. You might see a puddle of green, orange, or pink fluid under the front, passenger side of the van. The leak often comes from a small 'weep hole' on the pump, which is designed to leak when the internal seals are failing.
- Engine Overheating: If your temperature gauge starts climbing into the red, the pump may not be circulating coolant effectively. An overheating engine is a critical problem that can cause catastrophic damage if you continue to drive.
- Whining or Squealing Noises: A high-pitched whine or a rhythmic chirping sound from the engine bay that changes with engine speed often points to a bad bearing inside the water pump. This means the pulley is no longer spinning smoothly.
- Wobbly Pulley: If you can see the water pump pulley wobbling while the engine is running, the bearing is failing and a complete breakdown is likely. This can cause the serpentine belt to come off, leading to a loss of power steering and the alternator.
A Word of Warning on Installation
A common and frustrating issue when replacing the water pump on these vans is that the mounting bolts can break off in the engine's timing cover. This happens because the steel bolts corrode and seize inside the aluminum housing. It is highly recommended to use anti-seize on the threads of new bolts during installation to prevent this problem in the future. Many mechanics suggest sourcing higher-grade 10.9 bolts for replacement.
Choosing the Right Aftermarket Water Pump
You don't need to pay dealership prices for a quality water pump for your Caravan. Reputable aftermarket brands offer parts that meet or exceed original equipment (OE) specifications. The key is to balance cost with quality.

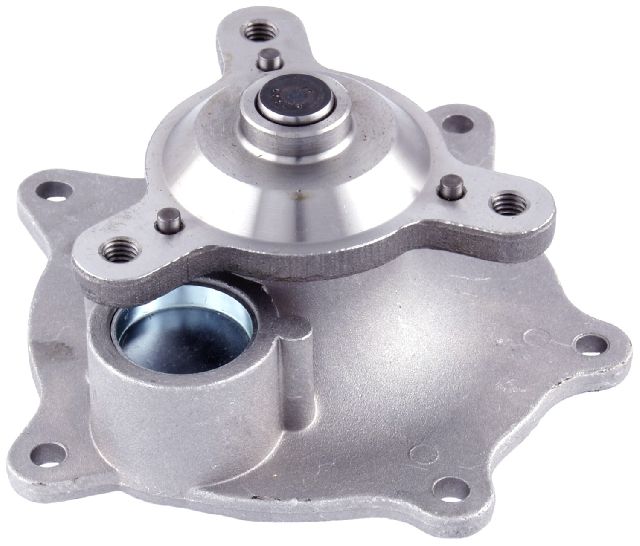

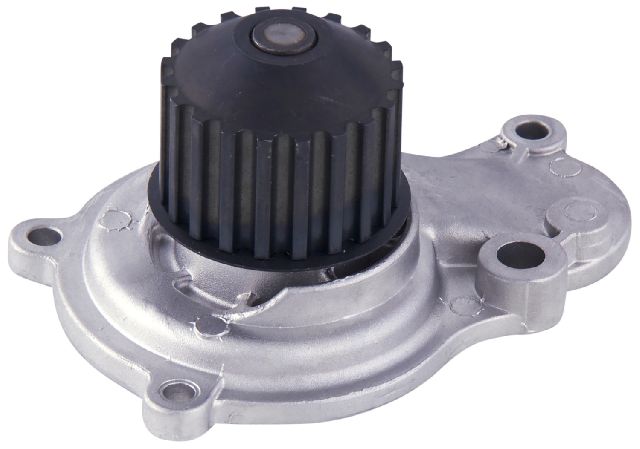

- Premium Brands (Gates, Dayco): Gates and Dayco are highly respected names in cooling and belt systems, often supplying parts directly to automakers. Choosing a pump from these brands is a solid investment in reliability.

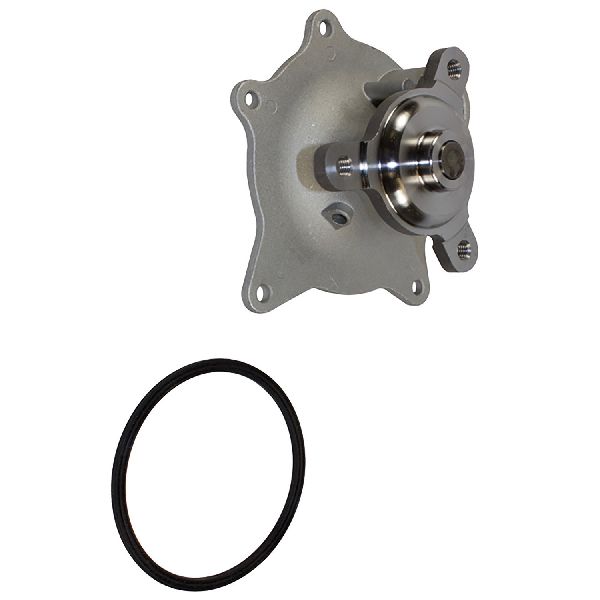

- Quality OEM-Equivalent (GMB): GMB is a large manufacturer known for producing quality water pumps that are often considered equivalent to OEM parts. They provide a good balance of quality and value.

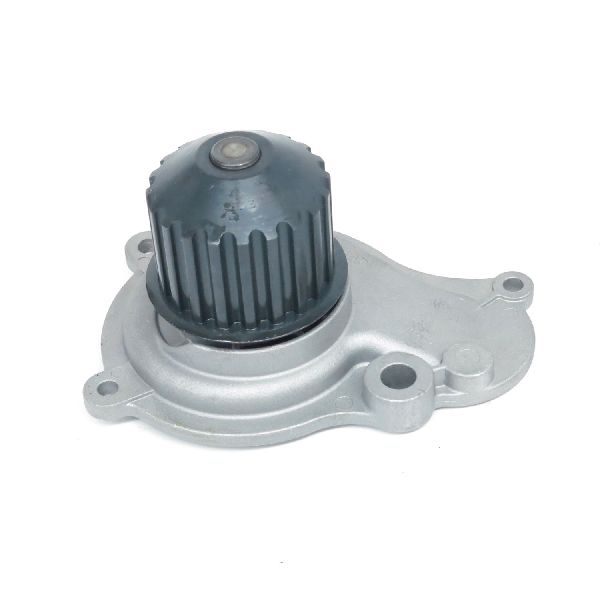

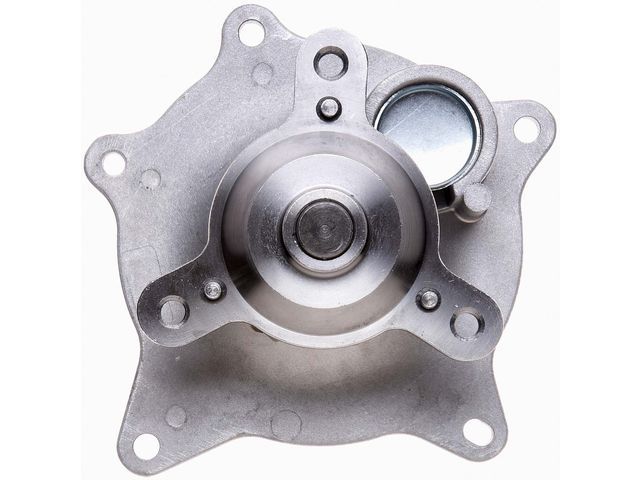

- Standard Aftermarket (ACDelco, US Motor Works): These brands offer reliable replacement parts that provide a cost-effective solution for repairs. While ACDelco is GM's brand, they offer parts for many vehicles.
Refresh the Cooling System
While you're replacing the water pump, it's a smart and cost-effective move to also replace the serpentine belt, belt tensioner, and thermostat. The cooling system will be drained anyway, making this the perfect time to refresh these related components and flush the system.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $47 - $82 |
| Shop Labor | $256 - $376 |
| Total Professional Replacement | $303 - $458 |
Frequently Asked Questions
Are there any recalls for the water pump on this van?
No. A search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls specifically for the water pump on the 2002-2007 Dodge Caravan.
Do I need to lower the engine to replace the water pump?
On some models, yes. To get enough clearance to remove the top water pump bolt, you may need to unbolt the passenger-side engine mount and carefully lower the engine a few inches with a jack. Some vans have an indentation in the frame rail that provides enough clearance without this step.
What is the torque spec for the water pump bolts?
The water pump retaining bolts should be tightened to 105 in-lbs (inch-pounds). It's important to tighten them in a crisscross pattern to ensure the gasket seals evenly. This is a very light torque setting, so be careful not to overtighten and break the bolts.
Should I flush the cooling system when I replace the pump?
Yes, it is highly recommended. Flushing the system before installing the new pump will remove old coolant, rust, and debris that could damage the new pump's seals and bearings. Always refill with the correct type of coolant and a 50/50 mix with distilled water.
Do these engines have a timing belt or a timing chain?
The 3.3L and 3.8L V6 engines in the 2002-2007 Caravan use a timing chain, not a timing belt. The water pump is driven by the external serpentine belt, so you do not need to open the engine's timing cover to replace it.
Helpful Videos
![Dodge Caravan loud squealing from the engine [water pump]](https://img.youtube.com/vi/pISEVUSfTtc/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 4781157AB 4781157AC 4781157AA 68382491AA
Fits 3.3L & 3.8L V6 engines. Driven by the serpentine belt. Includes O-ring or gasket for sealing.
