Engine Water Pump Guide for 2002-2007 Dodge Grand Caravan
Keep your Grand Caravan's 3.3L or 3.8L engine from overheating with the right replacement water pump.
- A failing water pump will cause coolant leaks, overheating, or strange noises from the engine.
- The biggest challenge of this repair is the high likelihood of the mounting bolts breaking off during removal.
- Quality aftermarket brands like Gates, Dayco, and GMB are reliable and more affordable than OEM parts.
- While replacing the pump, it's wise to also replace the thermostat and serpentine belt.
Is Your Grand Caravan's Water Pump Failing?
A bad water pump is a serious issue. If it fails completely, your engine will quickly overheat, which can lead to major damage like a warped cylinder head or a blown head gasket. Look for these common symptoms to catch a problem early.
Key Symptoms of a Bad Water Pump
- Coolant Leaks: This is the most common sign. You might see a puddle of green, orange, or pink fluid under the front passenger side of the van. The leak often comes from a small 'weep hole' on the pump, designed to signal that the internal seals are failing.
- Engine Overheating: If your temperature gauge starts climbing into the red, the pump may not be circulating coolant effectively.
- Whining or Squealing Noises: A high-pitched whine or a rhythmic chirping sound from the engine bay that changes with engine speed often points to a bad bearing inside the water pump.
- Wobbly Pulley: If you can see the water pump pulley wobbling while the engine is running, the bearing is shot and failure is imminent. This can cause the serpentine belt to come off, disabling your power steering and alternator.
A Word of Warning on Installation
A common and frustrating issue when replacing the water pump on these vans is that the mounting bolts can break off in the engine's timing cover. This happens because steel bolts are threaded into an aluminum housing, causing corrosion that seizes them in place. This can turn a two-hour job into a much longer and more expensive repair. It is highly recommended to buy new, higher-grade (10.9) bolts and use anti-seize on the threads during installation to prevent this headache.
🎬 Watch how to fix water pump bolts if they break.Choosing the Right Aftermarket Water Pump
For the 2002-2007 Grand Caravan, you don't need to pay dealership prices for a quality water pump. Reputable aftermarket brands offer parts that meet or exceed original equipment (OE) specifications. All the brands listed below are solid choices, but they fall into different tiers based on reputation and materials.
Aftermarket Brand Tiers
- Top Tier (OE Quality): Gates and Dayco are well-respected brands that are often the original equipment manufacturer for many car companies. Their kits are known for quality and reliability. You can install these with confidence. 🎬 See a professional installation of a new aftermarket water pump.
- Mid-Grade (Reliable & Recommended): GMB and ACDelco are excellent mid-tier options. GMB is a major OE supplier and is often recommended for its balance of quality and price. ACDelco, while a GM brand, offers a wide range of parts for other vehicles and is a dependable choice.
Pro Tip: While you're replacing the water pump, it's a smart and cost-effective move to also replace the serpentine belt, thermostat, and radiator hoses if they are old. The cooling system will be drained anyway, making this the perfect time to refresh these related components.
Cost to Replace a 2002-2007 Grand Caravan Water Pump
The cost can vary based on your location and whether you do it yourself or hire a professional. 🎬 Watch this step-by-step guide to replacing the pump yourself. The job is moderately difficult due to tight access and the risk of broken bolts.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $49 - $82 |
| Shop Labor | $220 - $322 |
| Total Professional Replacement | $504 - $697 |
Frequently Asked Questions
Do I need to lower the engine to replace the water pump?
On some models, yes. To get enough clearance to remove the top water pump bolt, you may need to unbolt the passenger-side engine mount and carefully lower the engine a few inches with a jack. Some vans have an indentation in the frame rail that provides enough clearance without this step.
Are there any recalls for the water pump on this van?
No. A search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls specifically for the water pump on the 2002-2007 Dodge Grand Caravan.
What is the torque spec for the water pump bolts?
The water pump retaining bolts should be tightened to 105 in-lbs (inch-pounds). It's important to tighten them in a crisscross pattern to ensure the gasket seals evenly. Note that this is a very light torque setting, so be careful not to overtighten and break the new bolts.
Should I flush the cooling system when I replace the pump?
Yes, it is highly recommended. Flushing the system before installing the new pump will remove old coolant, rust, and debris that could damage the new pump's seals and bearings. Always refill with a 50/50 mix of new coolant and distilled water.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4694307AB 4694307AC 4694307AD

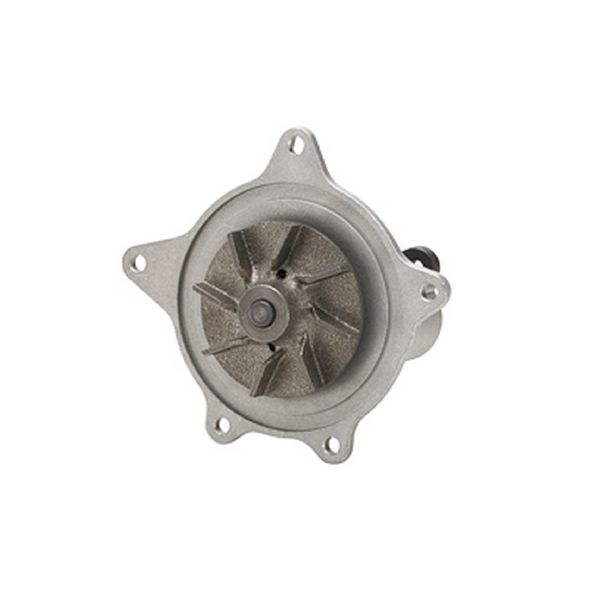

The water pump for the 2002-2007 Dodge Grand Caravan with the 3.3L or 3.8L V6 engine is a belt-driven centrifugal pump. It mounts to the timing chain cover on the passenger side of the engine and is sealed with a rubber O-ring gasket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
