Freightliner Sprinter 2500 Diesel Glow Plug Guide (2002-2007)
Solving hard starts and check engine lights in your T1N Sprinter van.
- Glow plug replacement on the 2002-2007 Sprinter is a high-risk job due to the likelihood of plugs breaking in the cylinder head.
- Use only high-quality OEM brands like Bosch or NGK; the risk of using budget parts is too high for this specific vehicle.
- The proper removal procedure involves days of soaking the plugs with penetrating oil and using a torque wrench to avoid applying excessive force.
- Consider replacing the glow plug module at the same time, especially if multiple plugs have failed or if it's the original fused unit.
Is Your Sprinter Hard to Start? It Could Be the Glow Plugs.
If your 2002-2007 Freightliner Sprinter 2500 is struggling to start, especially on cold mornings, failing diesel glow plugs are a likely cause. You might also see the glow plug indicator light stay on after the engine is running or have a persistent Check Engine Light. These symptoms point to a problem in the glow plug system, which is critical for reliable starting.
A Word of Warning: The "T1N" Sprinter Glow Plug Challenge
Replacing glow plugs on the 2.7L engine in these vans is not a typical repair. The plugs are known to seize in the cylinder head due to carbon buildup. Attempting to force a stuck plug can cause it to break off, turning a simple maintenance job into a very expensive repair that may require specialized tools or even removing the engine's cylinder head. Patience and proper technique are critical. 🎬 Watch this step-by-step guide on how to safely replace your plugs.
Choosing the Right Aftermarket Glow Plug
For this specific vehicle, the brand of glow plug you choose matters. Due to the high risk and labor involved if one breaks, saving a few dollars on a budget part is not recommended by most experienced owners.
Tier 1: OEM Quality (Recommended)
- Bosch: Bosch is widely considered the Original Equipment Manufacturer (OEM) for Mercedes and Freightliner Sprinters of this era. Choosing Bosch ensures you are getting the same quality, fit, and performance as the part your van was built with. They are engineered for proper heat-up times and a long service life.
- NGK: NGK is another top-tier manufacturer of ignition components and a trusted name in the industry. Their glow plugs are a high-quality alternative to Bosch and are known for reliability and performance. Many owners consider them an equal choice if Bosch is unavailable.
Tier 2: Budget Brands (Use With Caution)
- Autolite & Standard Ignition: While these brands offer a lower price point, reviews for their glow plugs in demanding applications can be mixed. Some users have reported issues like premature failure or delicate terminals that break during installation. Given the catastrophic consequences of a glow plug breaking during removal on a Sprinter, most mechanics and owners advise investing in Tier 1 brands for this specific job.
Pro Tip: Replace the Glow Plug Module
If you have multiple glow plug codes, the problem might also be the glow plug module (or relay), located under the battery tray. Early T1N Sprinters used a module with internal fuses that would blow permanently when a glow plug failed. If you replace the plugs without replacing a bad module, the new plugs won't work. It is common practice to replace the module with a modern, self-resetting version when doing a full set of glow plugs.
🎬 See how to replace the module and repair the original controller.Cost to Replace Sprinter Glow Plugs
| Part Type | Typical Price Range (Per Plug) |
|---|---|
| New Aftermarket (Tier 1: Bosch, NGK) | $20 - $37 |
| New Aftermarket (Tier 2: Autolite, etc.) | $16 - $20 |
| Shop Labor (Simple Replacement) | $250 - $450 |
| Shop Labor (With Broken Plug Extraction) | $700 - $2000+ |
Prices are estimates and can vary based on location, brand, and the condition of the vehicle. Labor for broken plug extraction can be very high.
Frequently Asked Questions
Can I replace just one bad glow plug?
Yes, you can replace only the failed plug. However, glow plugs tend to fail around the same time. Since the job requires significant preparation and carries risk, most owners and mechanics recommend replacing all five at once to save future labor and reduce the chance of another failure soon.
What is the secret to removing them without breaking?
There is no secret, only a required process. The engine should be warm (not hot). For several days leading up to the job, repeatedly spray penetrating oil around the base of each glow plug and drive the van to allow heat cycles to help the oil penetrate. Use a torque wrench to apply a slow, steady force, never exceeding the specified breakaway torque (around 20-25 Nm). If it doesn't move, stop, apply more oil, and try again later. Do not use excessive force.
What happens if a glow plug breaks?
If the plug breaks, the tip remains seized in the cylinder head. This requires a specialized extraction tool kit to drill out the remaining piece. It is a precise and difficult job that can cost hundreds of dollars per plug for a professional to perform. If done incorrectly, it can damage the cylinder head, leading to a multi-thousand dollar repair.
🎬 Watch a professional mechanic extract a snapped glow plug from the head.My glow plug light is on, but the van starts fine. Can I ignore it?
You can, but it's not wise. A bad glow plug left in the engine can lead to excessive carbon buildup around its tip, making it even more likely to seize and break when you eventually need to replace it. It's best to address the issue promptly to avoid a more difficult repair later.
Could a weak battery cause glow plug error codes?
Yes. The glow plug system draws a lot of power. A weak or aging battery may not provide enough voltage during the pre-heat cycle, especially in the cold. This can trigger glow plug fault codes even if the plugs and module are good. Always ensure your battery is fully charged and healthy before diagnosing the glow plug system.
Helpful Videos
![How to remove glow plugs on a Sprinter [04-06] & repair glow module](https://img.youtube.com/vi/jc8CVAeSZWs/mqdefault.jpg)
Technical Specifications

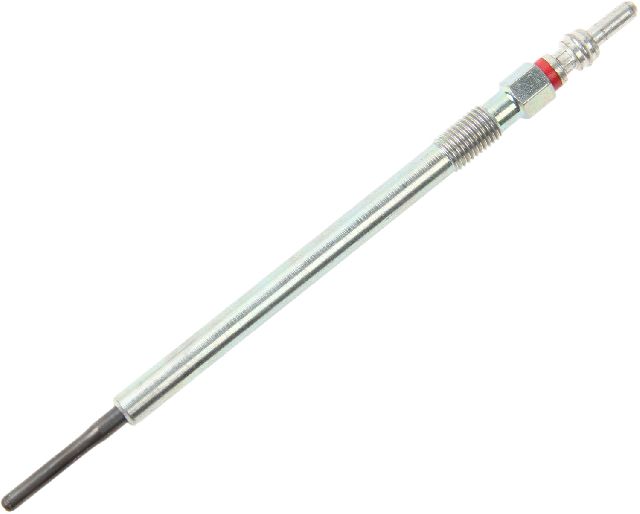

OEM Part Numbers: A0011594901 5117592AA
Engine: 2.7L OM612 or OM647 Inline-5 Diesel. Quantity Required: 5. Voltage: 11.5v.
