Engine Coolant Temperature Sensor: A Guide for the 2002-2007 Freightliner Sprinter 2500
Solve rough starts, poor fuel economy, and incorrect temperature readings by understanding this critical sensor.
- A failing ECT sensor on a T1N Sprinter commonly causes poor fuel economy, black smoke, and hard starting.
- This is a DIY-friendly replacement, typically located on the thermostat housing and held by a simple clip.
- Don't ignore an overheating warning; while it could be the sensor, it could also be a real issue that can damage the engine.
- Aftermarket brands like CRP and Standard Ignition offer a good balance of quality and price, while URO Parts is a viable budget option.
The Role of the Coolant Temp Sensor in Your Sprinter
Think of the Engine Coolant Temperature (ECT) sensor as your engine's thermometer. It constantly tells the main computer (ECU) how hot or cold the engine is. For the diesel engine in your 2002-2007 Sprinter, this information is critical. When the engine is cold, the ECU provides more fuel and keeps the glow plugs on longer to ensure a smooth start. As the engine warms up, the ECU adjusts the fuel mixture for better efficiency and lower emissions. It also uses the sensor's reading to decide when to activate the radiator fan to stop the engine from overheating. If the sensor provides a bad signal, it can cause a wide range of engine performance problems.
Symptoms of a Failing ECT Sensor
A bad coolant sensor can make your Sprinter act up in several ways. Because the ECU thinks the engine is colder or hotter than it really is, it makes poor decisions about fuel and engine timing. You might notice one or more of the following issues:
- Hard Starting: Especially when the engine is cold, a bad sensor can prevent the glow plugs from staying on long enough, making the engine difficult to start.
- Black Smoke from Exhaust: If the sensor wrongly tells the ECU the engine is cold, the computer will inject too much fuel. This unburnt fuel exits the tailpipe as black smoke.
- Poor Fuel Economy: A rich fuel mixture caused by a faulty sensor will cause you to use more fuel than necessary.
- Rough Idle: The engine may idle roughly or at an unusually high RPM as the computer struggles with incorrect temperature data.
- Check Engine Light: The ECU will often detect a problem with the sensor's signal and trigger a Check Engine Light. Common codes include P0115, P0117, and P0118. 🎬 Watch this quick 3-minute guide to fixing the P0115 code.
- Erratic Temperature Gauge or Fan Behavior: The gauge on your dash might swing wildly, read very high, or not move at all. The radiator fan might run constantly or not turn on when it should.
An Important Note on Overheating
If your temperature gauge suddenly goes into the red and the fan kicks on high, it could be a sign of a failed sensor. However, you should always treat an overheating signal as a real emergency until you can prove otherwise. A faulty sensor is a common issue, but actual overheating can destroy your engine.
Choosing the Right Aftermarket Sensor
For the T1N Sprinter, the original sensor is typically a Bosch part. While OEM is always a safe bet, several aftermarket brands offer quality replacements at a lower price. The key is choosing a brand known for reliability.
- OEM-Equivalent Quality (Recommended): Brands like CRP (which often supplies OEM parts) and Standard Ignition are generally well-regarded for their quality and reliability. They focus on meeting or exceeding original specifications.
- Value-Oriented Options: Brands like URO Parts and Four Seasons provide a more budget-friendly alternative. URO Parts, in particular, markets itself as a quality alternative to expensive genuine parts for European vehicles and often comes with a good warranty. While often perfectly suitable for a daily driver, some professional mechanics prefer to stick with higher-tier brands for critical sensors.
- Basic Economy: Brands like True Tech fall into the economy category. They are the most affordable but may have a shorter lifespan or less consistent quality control 🎬 See how to test your sensor using a basic multimeter. compared to premium brands.
Pro Tip: The sensor is held in place by a small clip and sealed by an O-ring. Many replacement sensors come with a new O-ring, but it's wise to confirm this. When replacing, have the new sensor ready to insert quickly to minimize coolant loss. Applying a bit of grease to the new O-ring can help it slide in smoothly.
Cost Comparison for ECT Sensor Replacement
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mercedes/Bosch) | $40 - $75 |
| New Aftermarket | $8.39 - $29.25 |
| Shop Labor | $90 - $150 |
Frequently Asked Questions (FAQ)
Where is the engine coolant temperature sensor located on a 2002-2007 Sprinter?
The sensor is typically located on the thermostat housing, which is at the front of the engine. On the 2.7L OM612 engine, it can be buried behind other components and may require removing the air intake for access.
Can I drive my Sprinter with a bad coolant temperature sensor?
While it is often possible to drive, it is not recommended for long periods. A bad sensor can lead to poor fuel economy, hard starting, and potentially long-term engine issues if the engine runs too rich or the cooling fan doesn't operate correctly. In some cases, the ECU may put the van into a low-power "limp mode."
Is replacing the ECT sensor a DIY job?
Yes, for most home mechanics with basic tools, this is a manageable job. The main challenges are accessing the sensor, which can be tight, and being prepared to lose a small amount of coolant. The sensor is usually held by a clip, making the swap itself quick.
🎬 Watch this step-by-step walkthrough of the sensor replacement process.What happens if I don't replace a failing ECT sensor?
Ignoring a bad sensor can lead to several problems. Continuously running rich can foul your spark plugs and damage the catalytic converter over time. More critically, if the sensor fails to report an overheating condition, the cooling fans may not turn on, leading to severe engine damage.
Is this the same as the coolant level sensor?
No. The coolant *temperature* sensor reads how hot the coolant is. The coolant *level* sensor is located in the coolant reservoir (expansion tank) and triggers a warning light if the coolant level is low. They are two separate parts with different functions.
Helpful Videos
![How to Fix P0115 Engine Code in 3 Minutes [2 DIY Methods / Only $7.32]](https://img.youtube.com/vi/g4kr3rmTxFE/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 0005425118 5080147AA 68068746AA 0009050700

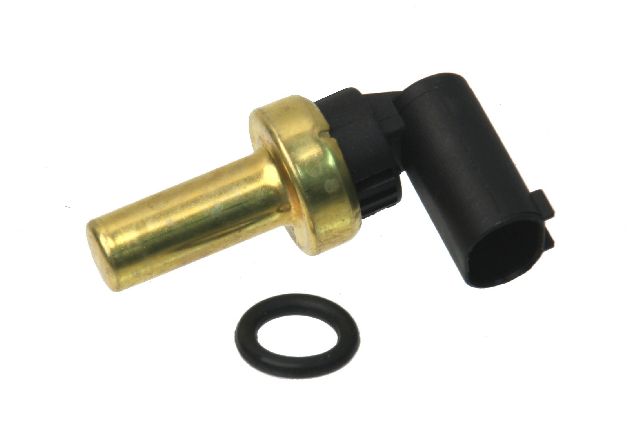

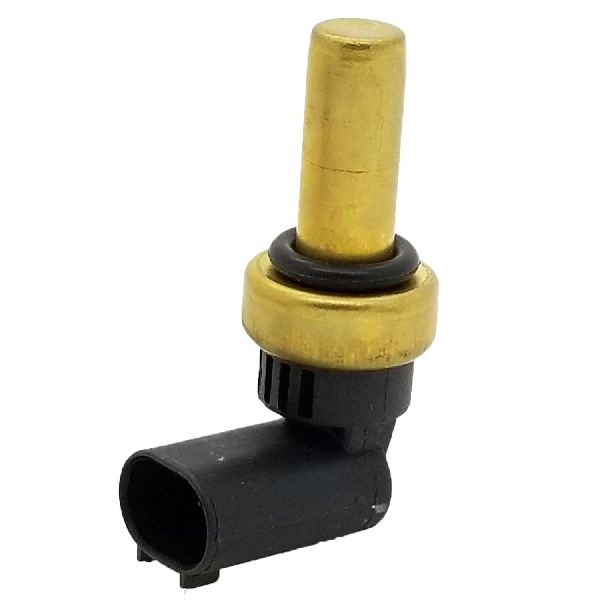

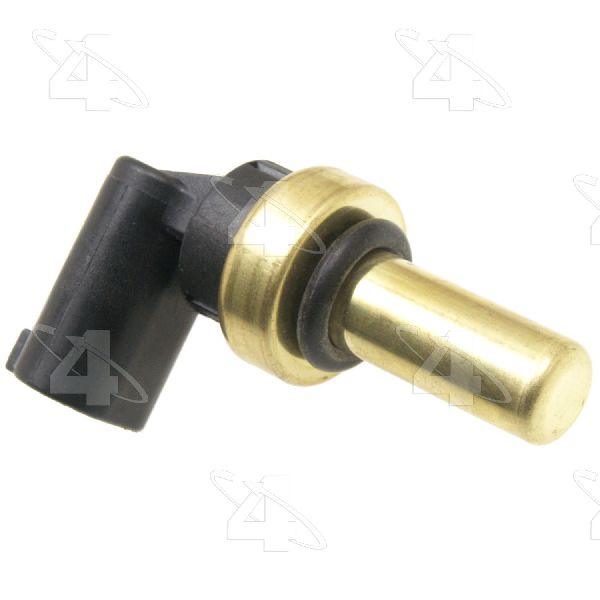

The sensor is a two-pin thermistor, meaning its electrical resistance changes with temperature. It typically has a brass housing and a plastic connector with a 90-degree plug connection. It is sealed with a rubber O-ring and held in place with a retaining clip.
