A Guide to the 2002-2007 Jeep Liberty Hazard Warning Flasher Switch
If your turn signals or emergency flashers are acting up, the problem is likely this simple-to-replace switch on your dashboard.
- The hazard switch on the dash contains the flasher relay for both the hazards and turn signals.
- If both turn signals and hazards fail, this switch is the most likely cause.
- Replacement is an easy DIY task that takes less than 30 minutes.
- The Standard Ignition brand is a reliable and widely available aftermarket option.
Is Your Jeep Liberty's Hazard Switch Failing?
On the 2002-2007 Jeep Liberty (KJ), the hazard warning switch is a common failure point that can cause confusing electrical issues. Unlike in many other vehicles, this switch, located on the center dash, contains the flasher relay that controls both the emergency lights and the turn signals. This means a single bad switch can knock out two critical safety systems. Recognizing the symptoms is the first step to a quick fix.
Common Symptoms of a Bad Hazard Switch

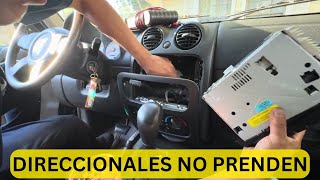

When this switch starts to go bad, you'll notice clear signs. The most obvious is that your hazard lights won't turn on when you press the button. You might also find that neither of your turn signals work, even though the bulbs are good. Sometimes, only one side will flash when you activate the hazards. Because the flasher is integrated, these symptoms point directly to a faulty 🎬 Watch: Diagnostic steps for turn signals and hazard lights hazard switch assembly.
Don't Confuse it with the Multifunction Switch
Many owners mistakenly blame the turn signal lever (multifunction switch) on the steering column for these issues. However, if your hazard lights and your turn signals are failing, the problem is almost always the dash-mounted hazard switch. If your hazards work but your turn signals do not, then the multifunction switch is the more likely culprit.
Choosing the Right Aftermarket Part
When shopping for a replacement, you will find the original Mopar part and aftermarket options. The OEM part number is 56010158AD, but it may be discontinued or hard to find.
- Standard Ignition (HZS149): This is a widely available and reputable aftermarket brand that produces a direct-fit replacement for the Liberty. Standard Motor Products is generally considered a reliable choice for electrical components when an OEM part isn't an option. Their switches are designed to meet original equipment (OE) specifications for fit and function.
- OEM Mopar: If you can find an original Mopar switch, it's a guaranteed fit. However, given the age of the vehicle, an aftermarket part from a quality brand like Standard Ignition is a perfectly acceptable and cost-effective solution.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition) | $60 - $91 |
| New OEM (Mopar) | $45 - $115 |
| Used OEM | $25 - $50 |
| Shop Labor | $75 - $160 |
Pro Tip: Installation is DIY-Friendly
Replacing this switch is a simple job that most owners can do themselves in under 30 minutes with basic tools. The process involves carefully prying off the plastic dash trim around the radio, unplugging the old switch, and plugging in the new one. Doing it yourself can save you over $100 in labor costs.
🎬 See this quick walkthrough for replacing the flasher relayFrequently Asked Questions
Can I still use my turn signals if my hazard switch is broken?
Usually, no. The flasher relay that makes the turn signals blink is located inside the hazard switch assembly on the Jeep Liberty. If the relay fails, your turn signals will likely stop working along with your emergency flashers.
Are there any recalls for the Jeep Liberty hazard switch?
No, there have been no specific recalls or Technical Service Bulletins (TSBs) issued by Jeep or the NHTSA for the hazard warning switch on the 2002-2007 Jeep Liberty.
Why do my lights flash fast (hyper-flash)?
Hyper-flashing is most often caused by a burnt-out turn signal bulb or the use of LED bulbs without a proper resistor. However, a failing flasher relay within the hazard switch can also sometimes cause the lights to flash at the wrong speed. Always check your bulbs first before replacing the switch.
Is it hard to replace the hazard switch myself?

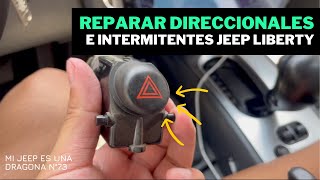

No, it is considered an easy repair. You only need to remove the center dash bezel, which typically pops off with a trim removal tool. 🎬 Watch: How to repair and fix your hazard switch From there, the switch is held in by clips and has a single electrical connector. No special tools are required.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56010158AC 56010158AD
Location: Center Dashboard, 10-Pin Connector
