Guide to the 2002-2007 Mercedes-Benz C280 Brake Light Switch
If your dash is lit up with BAS, ESP, or ABS warnings, the problem could be a simple and inexpensive brake light switch.
- A combination of ABS/BAS/ESP warning lights is the most common sign of a failed brake light switch on a W203 C280.
- This is a simple and inexpensive DIY repair that most owners can complete in under 30 minutes.
- Quality aftermarket brands like Beck Arnley or Standard Ignition are reliable, cost-effective alternatives to OEM parts for this component.
- If your brake lights are not working, the vehicle is unsafe to drive.
Is Your C280 Showing These Symptoms?
A failing brake light switch on the W203 C-Class is a common issue that can cause confusing problems. Because the switch communicates with several computer modules, its failure can trigger multiple warning lights and symptoms at once. Recognizing these signs can save you from more expensive and unnecessary repairs.
Top Failure Symptoms:
- BAS/ESP/ABS Warning Lights: The most common symptom is having the BAS (Brake Assist), ESP, and ABS warning lights illuminate on your dashboard, often all at the same time. 🎬 Watch: How to resolve ABS and BAS warning light errors. This happens because these safety systems need to know when the brakes are being applied, and a bad switch interrupts that signal.

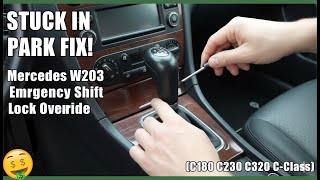

- Stuck in Park: The gear selector may not shift out of Park. 🎬 See how to use the emergency shift lock override. This is a safety feature; the car's computer won't allow you to shift into gear without confirming your foot is on the brake.
- Brake Lights Not Working or Staying On: Your brake lights may not turn on when you press the pedal, which is a serious safety hazard. Alternatively, they might stay on continuously, draining your battery.
- Cruise Control Inoperative: The cruise control system may not engage or may shut off unexpectedly.
Safety and Recalls
While there were significant recalls for brake light switches on other Mercedes-Benz models around this time, specifically for cruise control issues, the 2002-2007 C280 was not included in those specific campaigns. However, a faulty switch that prevents your brake lights from working makes the car unsafe to drive. Always check for the latest recall information with your vehicle's VIN on the NHTSA website.
Choosing the Right Aftermarket Switch
For a part like the brake light switch, a high-quality aftermarket replacement is a perfectly reliable and cost-effective option compared to a more expensive OEM part from the dealer. Brands like Beck Arnley and Standard Ignition are common choices.
- OEM (Original Equipment Manufacturer): This is the same part you would get from a Mercedes-Benz dealer. It guarantees a perfect fit but comes at a higher price.
- Beck Arnley: This brand often sources parts from the same manufacturers that supply automakers, including some OEM suppliers. They are generally considered a good quality option for import vehicles.
- Standard Ignition (Standard Motor Products): A well-known aftermarket manufacturer that produces reliable replacement parts. Their switches are a common and affordable fix for this issue.
For this specific part, both Beck Arnley and Standard Ignition offer a dependable alternative to the OEM switch without a significant difference in everyday performance or longevity. The choice often comes down to price and availability.
| Part Type | Cost Range |
|---|---|
| New Aftermarket (Beck Arnley, Standard Ignition) | $33 - $35 |
| New OEM (Dealer) | $45 - $70 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Can I replace the C280 brake light switch myself?
Yes, this is a very common DIY repair. The switch is located above the brake pedal under the dashboard. It typically requires removing a lower dash panel (held by a few Torx screws) and then twisting the old switch to remove it. The entire process usually takes less than 30 minutes.
Why do my ABS and ESP lights turn on for a brake light switch failure?
The ABS and ESP systems rely on the brake light switch to know when you are braking. If the switch provides an incorrect or no signal, the system's computer flags an error and disables these functions as a precaution, turning on the warning lights.
Do I need to have the computer reset after replacing the switch?
In most cases, no. Once the new, functioning switch is installed correctly, the warning lights on the dashboard should turn off by themselves after starting the car, sometimes after a short drive.
Is there a difference between the available aftermarket switches?
Pay close attention to the number of pins on the connector. Some C-Class models may have variations. Always verify that the part number or pin configuration of the new switch matches your old one before attempting installation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 0015456409 0015453809 0015452009
Located above the brake pedal. Typically features a 4-pin connector and a twist-lock installation mechanism.
