Mitsubishi Lancer Engine Cooling Fan Module Guide (2002-2007)
If your Lancer is overheating in traffic or the cooling fans won't turn off, your fan control module is the likely culprit.
- A bad fan module is a very common failure on 2002-2007 Lancers, with a TSB issued for 2002-2003 models.
- Symptoms are obvious: fans always on, fans never on, overheating in traffic, or poor A/C performance at idle.
- Replacement is easy for a DIYer and can be done in under an hour with basic tools.
- Aftermarket parts from brands like Dorman, Gates, or Standard Ignition are reliable and much cheaper than OEM.
Is Your Lancer's Fan Module Failing?
A bad cooling fan module is a very common issue on the 2002-2007 Lancer. When it fails, it can leave you with an engine that overheats in traffic or a battery that drains overnight. The symptoms are usually clear and point directly to this part.

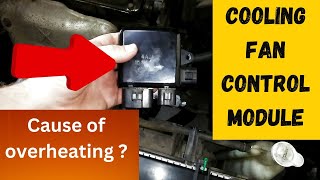

🎬 Watch: See how a faulty module behaves in real-time.Top 4 Signs of a Bad Fan Control Module:
- Fans Run Constantly: The most frequent symptom is a module that fails in the "on" position. The cooling fans will keep running even when the engine is cold or after you've turned the car off, which can kill your battery.
- Engine Overheats at Low Speeds: If the module fails to turn the fans on, your engine won't get enough airflow while idling or in stop-and-go traffic. You'll see the temperature gauge climb, but it might return to normal at highway speeds. 🎬 See this diagnostic walkthrough to confirm your overheating cause.
- A/C Blows Warm Air at Idle: The A/C system needs the fans to pull air over the condenser. If the fans aren't running when you're stopped, your A/C will feel warm but may get cold again once you start driving.
- Fans Don't Turn On (or Only One Does): A visual check can confirm the problem. With the engine warm or the A/C on, the fans should be spinning. A failed module can prevent one or both fans from activating.
Known Issue: Technical Service Bulletin (TSB)
Mitsubishi issued a Technical Service Bulletin (TSB) for 2002-2003 Lancer models produced before July 2003 due to faulty fan control modules. This bulletin acknowledged the problem of fans running constantly or not at all and recommended replacing the original module with an improved part. This means cars from this early period are especially prone to this failure.
Choosing the Right Aftermarket Fan Module
When replacing your Lancer's fan module, you don't need to pay high dealership prices for an OEM part. Aftermarket brands offer reliable alternatives that meet or exceed original quality for a fraction of the cost. Here’s a look at the available options.

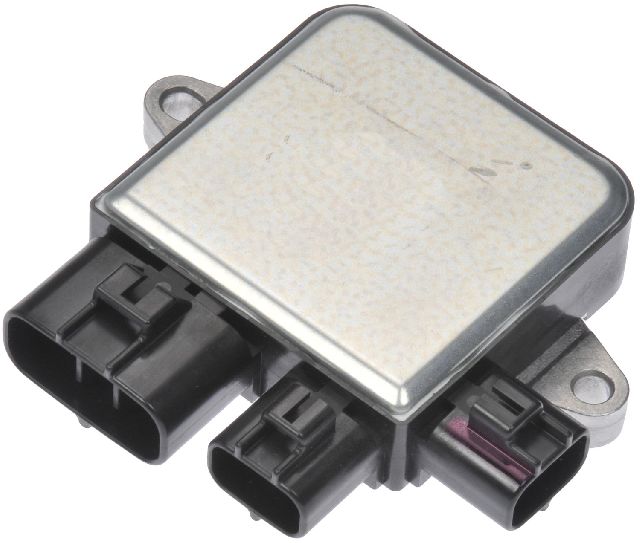

- Good Tier (Dorman): Dorman is a well-known brand that produces a wide range of replacement parts. Their fan modules are a direct-fit, budget-friendly solution that gets the job done. While some mechanics have mixed opinions on the brand's overall quality control, their parts are widely available and often come with a good warranty.
- Better Tier (Gates, Standard Ignition): Brands like Gates and Standard Ignition (SMP) are often considered a step up in quality for electronic components. Forum discussions suggest that Gates modules may use higher-quality internal components, like proper capacitors and inductors, which help them manage heat and electrical signals more effectively than cheaper, unbranded alternatives. This can lead to a longer, more reliable service life.
Pro Tip: Given that a faulty module can leave you stranded with an overheated engine, spending a little more for a part from a reputable brand like Gates or Standard Ignition can be a worthwhile investment in reliability.
Cost of Replacing a Lancer Fan Module
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $94.95 - $147.08 |
| New OEM | $250 - $400+ |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Can I still drive my Lancer with a bad fan module?
It's not recommended. If your fans are stuck on, you risk a dead battery. If they don't turn on, you risk severe engine damage from overheating, especially in traffic. If you must drive, avoid traffic, use the heater to draw some heat from the engine, and watch the temperature gauge like a hawk.
Is the fan module hard to replace myself?
No, this is a great DIY job for beginners. The module is located on the fan shroud right behind the radiator and is held on by just a few bolts. The job requires basic hand tools and can typically be completed in under an hour.

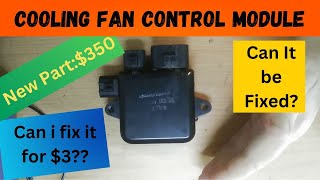

🎬 Watch: A quick guide to replacing the fan controller.Why are my fans running after I turn the car off?
This is the most common sign of a failed fan control module on this generation of Lancer. The internal electronics have likely shorted, causing the module to send power to the fans continuously until the battery is drained. Replacing the module will fix this problem.
Are used OEM parts a good option?
A used part from a junkyard can work, but it's a gamble. Some owners report that used modules fail quickly. Considering the TSB for 2002-2003 models, you might be buying a part that has the same original defect. A new aftermarket part with a warranty is often a safer choice.
Helpful Videos
Technical Specifications
OEM Part Numbers: MR497751 1355A124
Controls operation of both radiator and condenser cooling fans. Mounts to the fan shroud assembly. Operates on a pulse-width modulated (PWM) signal from the ECM.
