A Guide to the 2002-2007 Nissan Altima Engine Oil Pressure Switch
That red oil can light on your dashboard might be a simple fix—here's what Altima owners need to know.
- The oil pressure light on your Altima is more likely a bad switch than a bad engine, especially if the oil level is full.
- Do not ignore the warning light; confirm the oil level and listen for engine noises immediately.
- Replacing the switch is a simple, low-cost DIY job that can be done in under an hour with basic tools.
- Choosing a reputable aftermarket brand like Beck Arnley or Standard Ignition can provide reliability close to OEM for a lower price.
Is Your Altima's Oil Light On?
Seeing the red oil pressure light can be alarming, but it doesn't always mean your engine is in immediate trouble. For the 2002-2007 Nissan Altima, one of the most common causes for this light is the failure of the oil pressure switch itself. These switches can wear out over time, leading to false warnings or oil leaks.
Warning: Bad Switch vs. No Oil Pressure
If your oil light is on, immediately check your oil level using the dipstick. If the level is full and the engine is running quietly, the problem is likely a faulty switch. However, if the oil light is on AND you hear any ticking, knocking, or grinding sounds from the engine, pull over safely and shut the engine off immediately. Driving with actual low oil pressure can destroy your engine in minutes.
Common Failure Symptoms
- Oil Light Stays On: The light is illuminated constantly, even though the engine oil level is full.
- Flickering Oil Light: The light flickers, especially at idle or when the engine is warm. This can be a sign of an intermittent electrical fault within the switch.
- Oil Leaking from the Switch: The switch itself can develop a leak. You may see oil on the sensor, the side of the engine block, or dripping on the ground below the passenger side of the engine. 🎬 See this step-by-step oil pressure sensor replacement walkthrough
Choosing the Right Aftermarket Part
Since the OEM switch can be pricey, many owners choose an aftermarket replacement. For a simple part like this, an aftermarket switch is a perfectly good option, but brand quality matters. A poorly made switch can fail quickly or leak. We can group the available brands into tiers based on reputation.
Premium Aftermarket Brands
These brands have a strong reputation for quality control and often supply parts to vehicle manufacturers. They are a reliable choice for a slightly higher cost.
- Beck Arnley: Known for often sourcing parts from the original OEM suppliers and repackaging them. You may get an OEM-quality part in a Beck Arnley box.
- Standard Ignition (SMP): A major American manufacturer that engineers and tests its own parts in-house, ensuring reliable performance.
Standard & Economy Aftermarket Brands
These brands offer a good balance of cost and quality. They are a significant step up from no-name online parts.

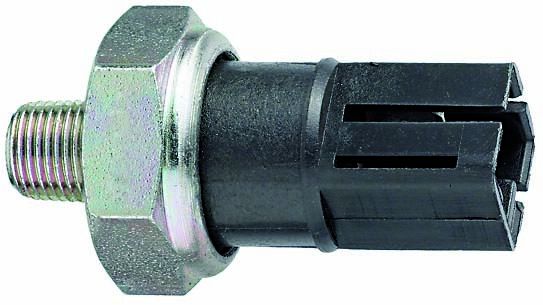

- Facet: An established Italian manufacturer known for producing quality engine management components for the European market.

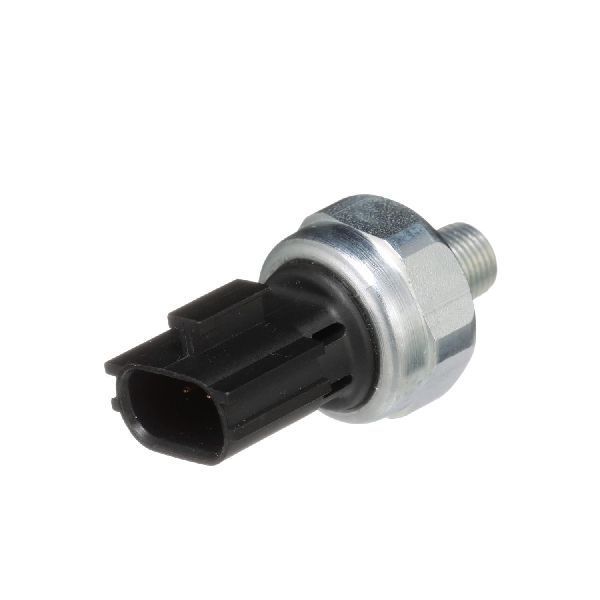

- Vemo, Walker Products, True Tech, etc.: These brands provide functional, budget-friendly options. While they may not have the same long-standing reputation as the premium brands, they can be a viable choice for a cost-conscious repair.
Pro Tip: Location and Installation
The oil pressure switch is located on the passenger side of the engine block, usually near the oil filter. Access is tight, but it can be made easier by removing the passenger-side front wheel and the plastic splash guard. You will need a special deep socket (usually 24mm or 27mm) to remove and install it.
Cost to Replace the Oil Pressure Switch
The cost is very reasonable, especially if you do the work yourself. The part itself is inexpensive, with labor being the main cost at a repair shop.
| Item | Estimated Cost |
|---|---|
| New OEM Part | $25 - $90 |
| New Aftermarket Part | $13 - $101 |
| Shop Labor | $50 - $120 |
| Total (Shop Repair) | $75 - $220 |
Frequently Asked Questions
Is it safe to drive my Altima with the oil light on?
Only for a very short distance, and only after you have verified the oil level is full and the engine is not making any unusual noises. The light indicates a potential for serious engine damage, so you should get it diagnosed immediately. Driving with a ticking or knocking engine is not safe and will lead to catastrophic failure.
Where is the oil pressure switch located on a 2002-2007 Altima?
It is threaded into the engine block on the passenger side of the engine, typically near the oil filter and below the intake manifold. It has a single-wire electrical connector. You may need to look from underneath the car to spot it.
Can I replace the oil pressure switch myself?
Yes, this is a great DIY job for beginners. It requires basic tools and can be completed in about 30-60 minutes. 🎬 Watch: How to replace the switch using basic hand tools The main challenge is accessing the switch.
What tools do I need for the replacement?
You will need a floor jack and jack stands, a lug wrench for the wheel, basic hand tools to remove the splash shield, a deep well socket (usually 24mm or 27mm), a ratchet, an oil drain pan, and some shop rags. An inspection mirror and flashlight are also very helpful for locating the switch.
Why is my oil light on if the dipstick shows the oil is full?
This is the classic symptom of a failed oil pressure switch. The switch is sending a false signal to your dashboard. The light indicates a pressure problem, not an oil level problem. As long as the engine sounds normal, the switch itself is the most likely culprit.
Are there any recalls for this part on my Altima?
No. Searches of the NHTSA database show no recalls specifically for the engine oil pressure switch on the 2002-2007 Nissan Altima. There were recalls for other sensors on this vehicle, but not the oil pressure switch.
Helpful Videos
![Project Altima SE-R [EP:12] Oil Pressure Sensor Replacement](https://img.youtube.com/vi/BHBu3vr2-6M/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 25240-4M400 25240-4M40E 25240-89960 25070-CD000 25070-CD00A
Located on the passenger side of the engine block, near the oil filter. Uses a single-wire connector. Socket size for removal is typically a 24mm or 27mm deep socket.
