Nissan Pathfinder Engine Cooling Fan Clutch Guide (2002-2007)
Is your Pathfinder overheating at idle or making a loud roaring noise? Your fan clutch might be the problem.
- The most common symptom of failure is engine overheating at idle that goes away at highway speeds.
- A loud, constant roaring noise that changes with engine RPM points to a seized fan clutch, which hurts power and fuel economy.
- For this part, OEM is highly recommended by owners to avoid repeat failures, as aftermarket quality can be inconsistent.
- While replacing the clutch, always inspect the plastic fan blade for cracks to prevent future catastrophic failure.
Is Your Pathfinder's Fan Clutch Failing?
A failing fan clutch on the 2002-2007 Nissan Pathfinder typically fails in one of two ways: it either seizes and stays locked, or it fails to engage when needed. Both failures will cause noticeable symptoms. It's a common issue as these trucks get older.
Symptoms of a Bad Fan Clutch
- Engine Overheating at Low Speeds: This is the most common sign. If your temperature gauge climbs when you're stopped in traffic but returns to normal when you start moving at speed, the fan clutch is likely not engaging to pull air through the radiator.
- Loud Roaring Noise: If the fan clutch seizes, it will be permanently engaged. This creates a loud roaring or "jet engine" sound from the front of the engine that rises and falls with engine RPM.
- Reduced Power and Fuel Economy: A seized fan clutch puts a constant drag on the engine. This robs horsepower and makes your engine work harder, which hurts acceleration and fuel mileage.
- Wobbly or Loose Fan: With the engine off and cool, try to wiggle the fan blade. If you feel any side-to-side play or wobble, the bearing in the clutch may be worn out. However, be sure this is not a failing water pump, which can also cause wobble. 🎬 Watch: Differentiating between fan clutch and water pump bracket issues
Known Issues & Recalls
Our search of the National Highway Traffic Safety Administration (NHTSA) database found no specific recalls or technical service bulletins (TSBs) for the engine cooling fan clutch on the 2002-2007 Nissan Pathfinder. There was a significant recall for Takata airbags on 2002-2004 models, which owners should verify is completed.
Choosing the Right Aftermarket Fan Clutch
When it comes to this part on this specific vehicle, there is a noticeable difference in performance and longevity between brands. Many Pathfinder owners report having to replace aftermarket fan clutches multiple times before finally switching to an OEM (Original Equipment Manufacturer) part. If your budget allows, an OEM Nissan part is the most reliable choice to fix the problem once.
If you choose an aftermarket part, be aware that quality varies. Some aftermarket clutches can be overly aggressive, meaning they stay engaged too often, causing excessive noise and hurting fuel economy.
Aftermarket Brand Tiers

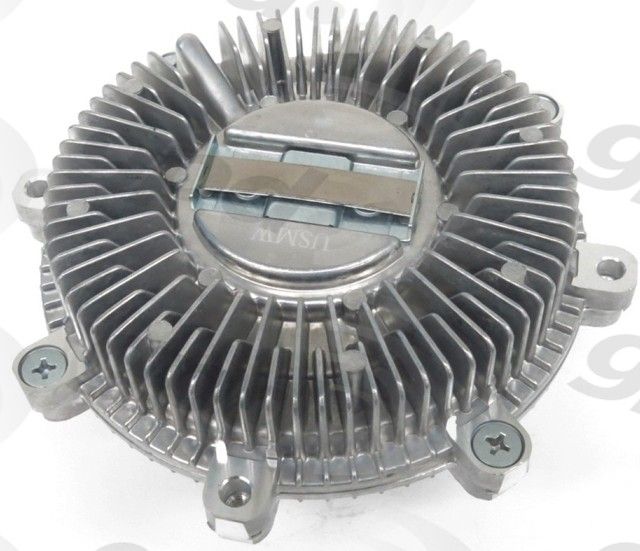

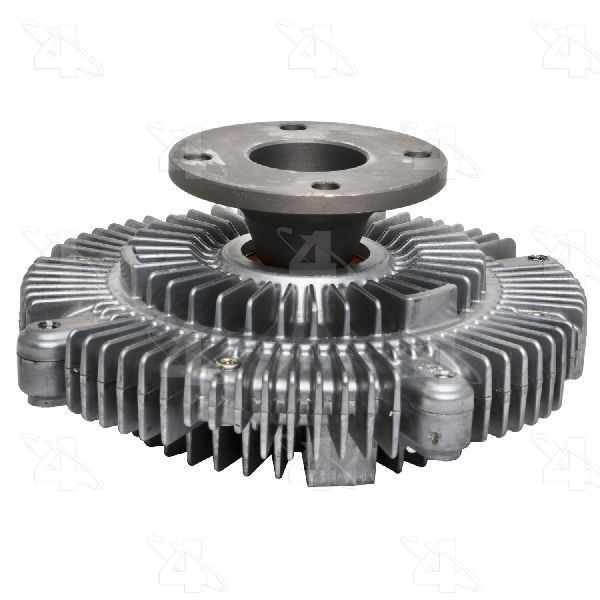

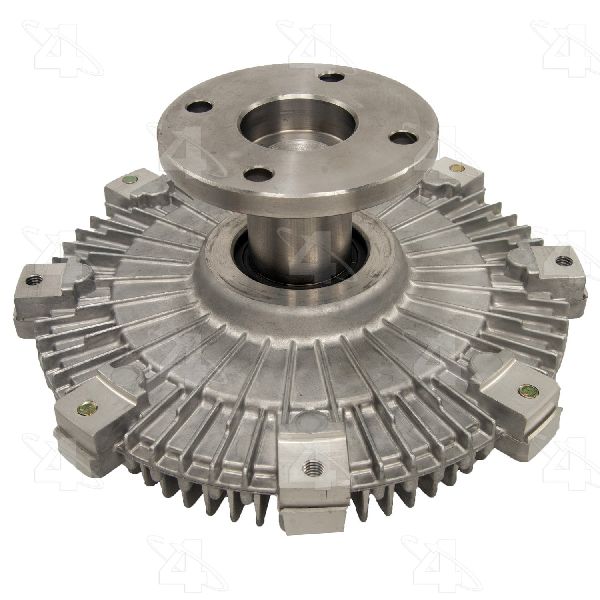

- Tier 1 (Better Quality): US Motor Works (USMW) and Hayden generally have better reputations among aftermarket options. Some users report success with these brands, though some have noted they can be noisy.

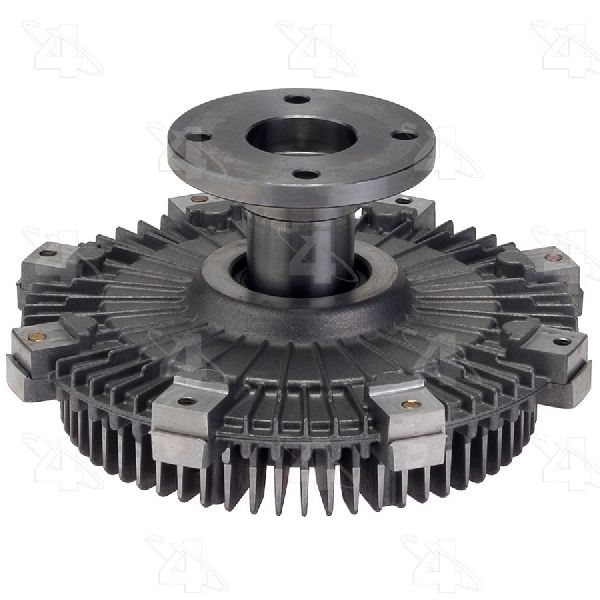

- Tier 2 (Standard Quality): Brands like GMB and Four Seasons are widely available. GMB claims to meet OE specifications. User reviews are less common or mixed for these brands on Nissan trucks.

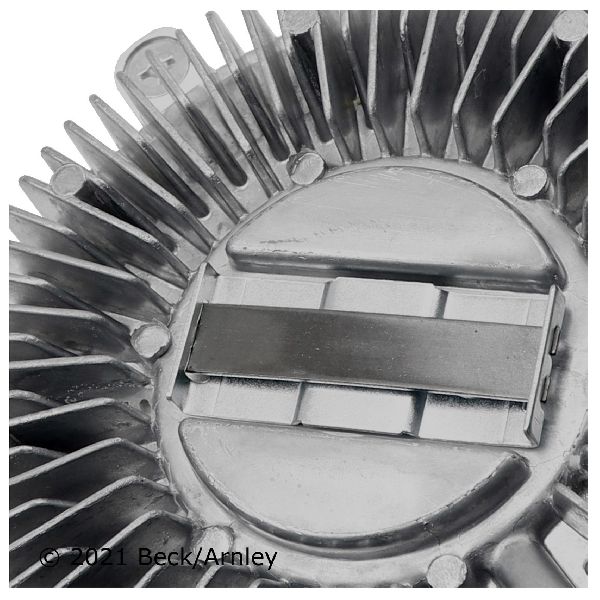

- Tier 3 (Be Cautious): Beck Arnley is a re-boxer, not a manufacturer. This means the part inside the box could be from any supplier, from high-quality to low-quality. It's a gamble.
Pro Tip: Inspect the Fan Blade
While you have the fan assembly out, carefully inspect the plastic fan blade for any cracks, especially around the hub. A worn-out fan clutch that wobbled can stress the blade, and a cracked blade can come apart, causing major damage to your radiator, hoses, and hood. If you see any damage, replace the fan blade at the same time.
Replacement Cost
Replacing the fan clutch is a manageable DIY project for someone with basic mechanic's tools. It typically takes about 1.5 to 2 hours. You will need to remove the fan shroud for access, which can be tricky.
🎬 See this step-by-step guide to removing the fan shroud| Part/Service | Estimated Cost |
|---|---|
| New OEM Fan Clutch | $190 - $280 |
| New Aftermarket Fan Clutch | $79 - $172 |
| Shop Labor | $120 - $200 |
Frequently Asked Questions
Can I still drive my Pathfinder with a bad fan clutch?
It's risky. If the clutch has failed and isn't engaging, you risk severe engine damage from overheating, especially in city driving. If the clutch is seized, you can drive it, but you will have very poor fuel economy and reduced power. It's best to get it replaced as soon as possible.
How do I test my fan clutch?
With the engine completely cool and turned off, try to spin the fan. It should have some resistance and not spin freely more than a couple of times. If it spins with no resistance or feels locked up and won't spin at all, the clutch is likely bad. You can also check for side-to-side wobble, which indicates a bad bearing.
🎬 Watch: How to test and inspect your fan clutchWhy do some aftermarket fan clutches make so much noise?
Some aftermarket clutches are calibrated to be more aggressive or "heavy-duty." This means they engage more readily and stay engaged longer than the original part. While this ensures cooling, it also creates a constant roaring noise and puts extra load on the engine, which can be annoying and reduce fuel efficiency.
Is it hard to replace the fan clutch myself?
It is considered a moderately easy to intermediate job. You will need a basic metric socket set (10mm is common for this job), screwdrivers, and pliers. The main challenge is removing the fan shroud and working in the tight space between the engine and radiator. Several step-by-step videos are available online that show the process on the Pathfinder's 4.0L V6 engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: 21082-EA200

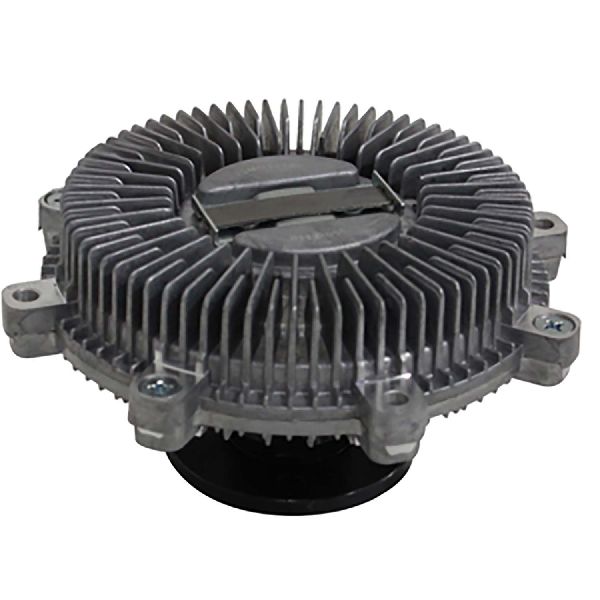

The fan clutch for the 2002-2007 Nissan Pathfinder is a thermal, viscous-type clutch. It bolts onto the water pump pulley with four studs. The fan blade then bolts to the face of the clutch. Rotation is typically clockwise.
