Nissan Sentra Transmission Filter Kit Guide for 2002-2007 Models
Keep your Sentra's 4-speed automatic shifting correctly by understanding its transmission filter.
- BEWARE: A filter bolt may be inaccessible, turning a simple job into a major repair requiring valve body removal.
- Use only Nissan Matic-D, Dexron III, or a compatible ATF; do NOT use CVT fluid.
- Cleaning the pan magnets is a critical step to remove harmful metal particles.
- Due to the risks, a simple fluid drain-and-fill is a safer DIY alternative to a full filter change.
Is a Clogged Transmission Filter a Problem on the 2002-2007 Sentra?
Yes, a clogged filter can cause serious issues. Because the filter for the 4-speed automatic transmission in this Sentra generation is a simple screen, it's designed to catch larger particles. If it becomes restricted, it can starve the transmission of fluid. This can lead to symptoms ranging from poor shifting to catastrophic transmission failure. Signs of a problem include delayed or harsh gear shifts, a whining noise from the transmission area, a burning smell, or the check engine light coming on.
A Word of Warning on Replacement

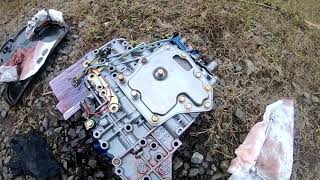

Many Sentra owners have reported a major problem when trying to change this filter. One of the bolts holding the filter to the valve body may have a nut on the top side, where it is impossible to reach without removing the entire valve body. 🎬 See the nightmare process of dropping the valve body for access. Attempting to remove this bolt can cause the nut to fall off, making it impossible to reinstall the filter. This turns a simple job into a very expensive repair. Because of this risk, some mechanics and even Nissan dealerships may recommend not replacing the filter at all, but simply cleaning it during a fluid change.
🎬 Watch: Why some mechanics warn against replacing this specific filter.Choosing the Right Aftermarket Transmission Filter Kit
If you decide to proceed with a replacement, choosing a quality kit is important. The main components are the filter (strainer) and the pan gasket. Aftermarket kits offer significant savings over OEM parts, but quality can vary.

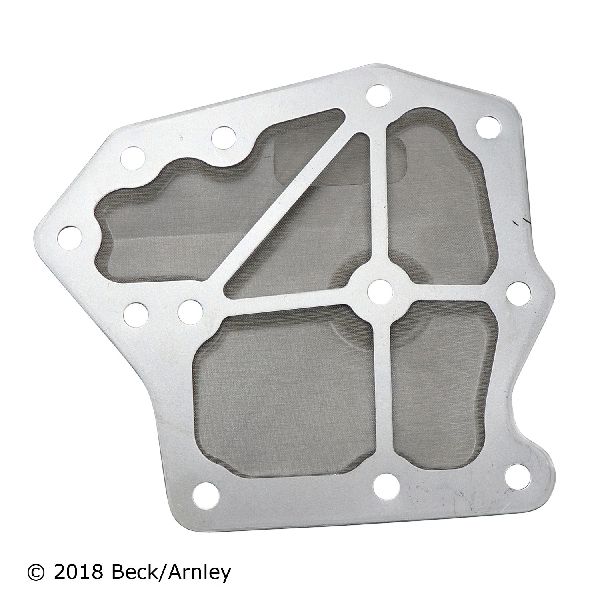

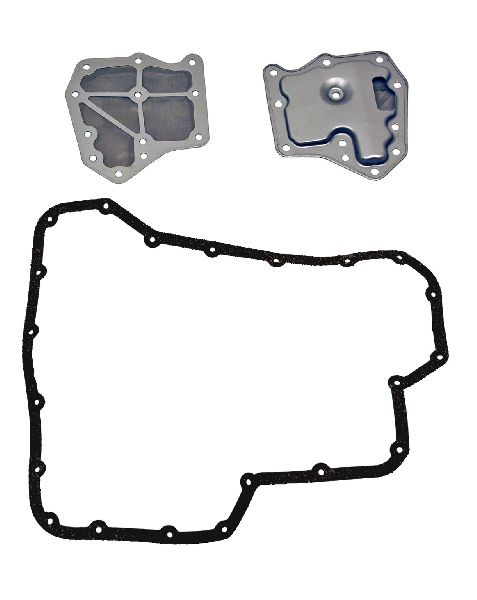

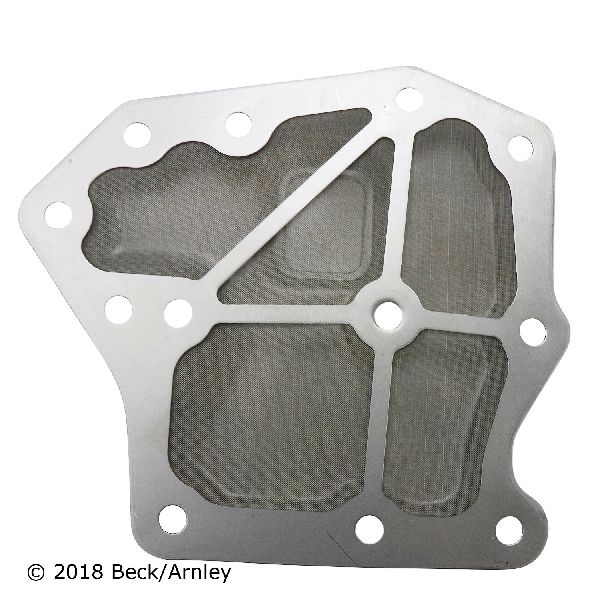

- Premium Brands (Wix, Beck Arnley): These brands generally have a strong reputation for quality and fitment that is close to original equipment. Beck Arnley is known for sourcing parts from OEM suppliers, and Wix is a well-respected filter manufacturer. Given the potential installation issues, a part from a trusted brand is a wise investment.

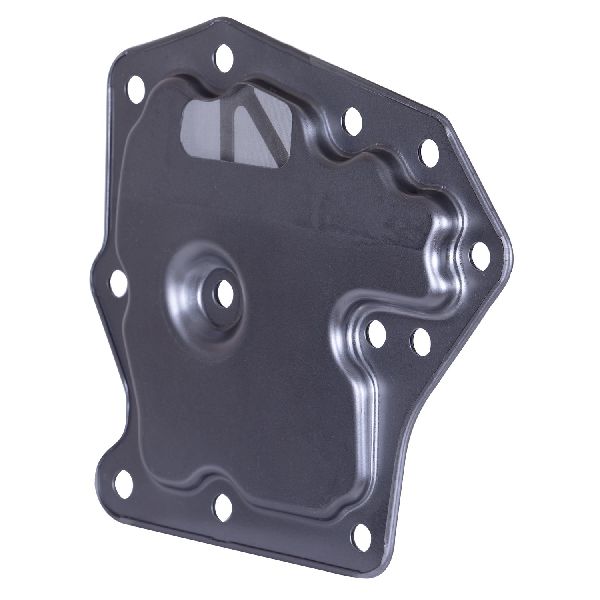

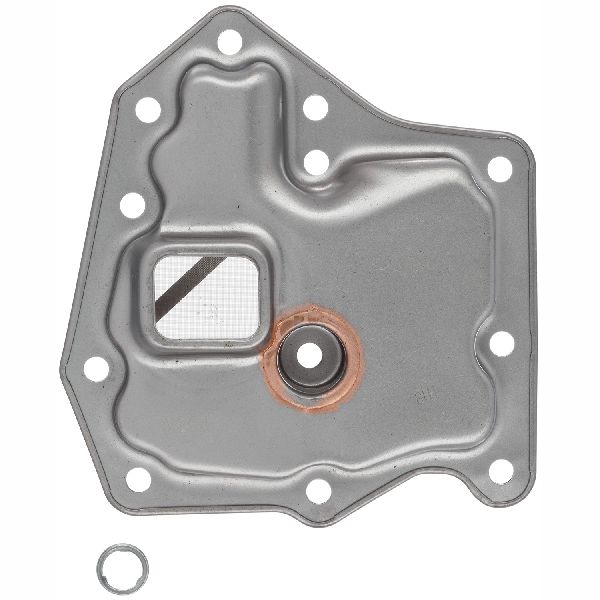

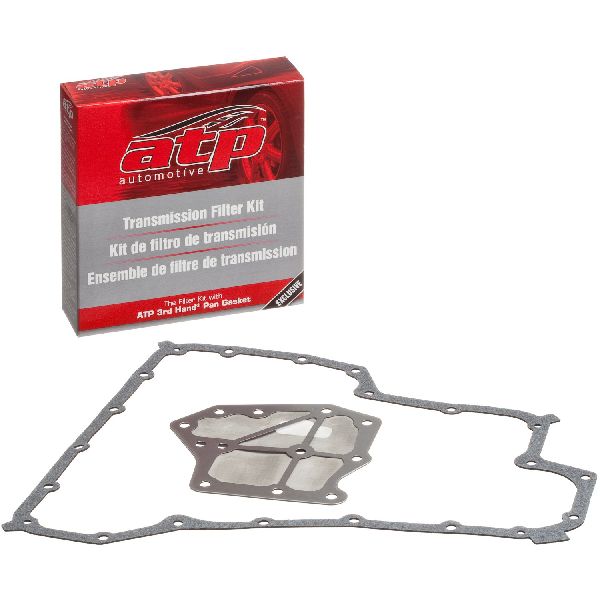

- Standard Brands (ATP, Premium Guard, Vaico): These brands offer a cost-effective solution and are widely available. They are generally considered acceptable for this application, but pay close attention to the included gasket. Some users prefer the fiber or rubber gaskets included in certain kits over basic cork ones.
| Part | Typical Aftermarket Price | Typical OEM Price |
|---|---|---|
| Transmission Filter Kit (Filter & Gasket) | $14.90 - $30.20 | $45 - $70 (Parts sold separately) |
Pro Tip: Clean the Magnets
When the transmission pan is removed, you will see one or two magnets inside. These magnets collect fine metallic dust. It is critical to clean these magnets thoroughly before reinstalling the pan. A light, fuzzy coating is normal, but large metal flakes are a sign of serious internal problems.
Frequently Asked Questions
How often should I change the transmission filter?
Nissan considers this a "maintenance-free" part, but many mechanics recommend a fluid and filter change every 30,000 to 60,000 miles. Due to the difficult bolt issue on this specific vehicle, many owners opt to only perform a fluid drain-and-fill and clean the existing filter screen rather than replacing it.
What type of transmission fluid does my 2004 Sentra need?
Your 2002-2007 Sentra with an automatic transmission requires Nissan Matic-D, Dexron III, or a compatible multi-vehicle automatic transmission fluid (ATF). Do NOT use CVT fluid (like NS-2 or NS-3), as this will damage your transmission.
Can I just change the fluid and not the filter?
Yes, and for this particular vehicle, it might be the safest option for a DIY mechanic. A simple drain and fill of the fluid will replace about 3.5 to 4 quarts of old fluid, which is beneficial. However, it does not allow you to clean the pan magnets or inspect for debris, which are key benefits of dropping the pan.

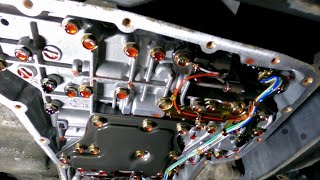

🎬 Watch: A walkthrough of this non-typical transmission filter service.Is the gasket reusable?
No. You should always use the new gasket that comes with your filter kit. Old gaskets can become hard and brittle, and reusing one will almost certainly cause a leak. Ensure both the transmission housing and the pan surfaces are perfectly clean before installing the new gasket.
Helpful Videos
Technical Specifications
OEM Part Numbers: 31728-31X01 31728-80X04 31726-3AX01
Fits the 4-speed RE4F03A and RE4F03B automatic transmissions. Does not fit later models with CVT transmissions.
