Dodge Grand Caravan Radiator Guide: 2002-2008 Models
Everything you need to know before replacing the radiator in your Grand Caravan.
- A failing radiator cap can cause coolant loss; check or replace it first as per a known TSB.
- Overheating is the most critical symptom and requires immediate attention to avoid engine damage.
- Quality aftermarket brands like Denso or CSF offer a reliable, cost-effective alternative to expensive OEM parts.
- Replacing radiator hoses at the same time is a smart and inexpensive way to prevent future leaks.
Is Your Grand Caravan's Radiator Failing?
Radiators don't last forever, especially the plastic and aluminum ones used in the 2002-2008 Grand Caravan. The plastic side tanks can become brittle from years of heating and cooling, leading to cracks and leaks. Here are the most common signs of a bad radiator:
- Engine Overheating: The temperature gauge on your dashboard climbs into the red zone. This is the most serious symptom.
- Coolant Leaks: You may see puddles of bright green, orange, or pink fluid under the front of your van. Sometimes leaks are small and you might only smell a sweet, syrupy odor after driving.
- Visible Cracks or Damage: Look at the top and sides of the radiator. You might see white or colored stains from dried coolant, indicating a small leak from a crack in the plastic tank.
- Low Coolant Level: If you constantly have to add coolant to the overflow tank or the radiator itself, you have a leak somewhere in the system.
Known Issue: Check Your Radiator Cap
Chrysler issued a Technical Service Bulletin (TSB) for these vans because the original radiator cap can fail and cause slow coolant leaks. Before you replace the whole radiator, check if coolant is weeping from the cap. A new cap is inexpensive and might solve your problem.
Choosing the Right Aftermarket Radiator
You don't need to buy an expensive radiator from the dealer. Quality aftermarket brands offer reliable performance for a fraction of the price. Most are built just like the original, with plastic tanks and an aluminum core. Here’s a breakdown of common brand tiers to help you choose.
Tier 1: Premium Aftermarket
These brands are known for high quality and are often trusted by professional mechanics. They are a great choice for a long-lasting repair.
- Denso: A top-tier brand that is an original equipment manufacturer (OEM) for many car companies. They have a strong reputation for quality and fit.
- CSF Radiator: Known for robust construction and rigorous testing. They use high-grade materials for durability.
- Koyorad: Another well-regarded brand that focuses on quality and OE-style performance.
Tier 2: Quality Standard Replacements
These brands offer a good balance of price and performance. They are a solid choice for most owners.
- Spectra: A very popular brand that offers good value. While some users report shorter lifespans compared to Denso, many have had no issues.
- Nissens: A large European manufacturer with a reputation for quality parts.
Tier 3: Economy Options
These brands meet basic requirements and are the most budget-friendly. They are suitable for older vehicles or if you're on a tight budget.
- APDI
- Global Parts
- One Stop Solutions
- Onix
Don't Forget the Hoses!
While you're replacing the radiator, it's a perfect time to replace the upper and lower radiator hoses and the small hose to the overflow tank. Old hoses can get soft or brittle and are a common failure point. Also, make sure you use the correct type of coolant for your van.
Dodge Grand Caravan Radiator Replacement Costs
The cost can vary depending on who does the work and what brand of part you choose. Getting a quote from a local, trusted mechanic is always a good idea.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Radiator | $121 - $247 |
| Shop Labor | $250 - $365 |
| Total (Aftermarket Part) | $371 - $612 |
| New OEM (Dealer) Radiator | $450 - $965 |
| Total (OEM Part at Shop) | $700 - $1,330 |
Frequently Asked Questions
Is it hard to replace the radiator on a 2002-2008 Grand Caravan?
It is a manageable job for a DIYer with some experience, but it takes time. You have to remove the upper radiator support structure to get the radiator out from the top. The A/C condenser stays in the vehicle but must be carefully unclipped from the old radiator. Expect it to take about 2-4 hours.
Do I need to drain the A/C system?
No. The A/C condenser is a separate part that sits in front of the radiator. You do not need to disconnect the A/C lines or drain the refrigerant to replace the radiator.
My van has rear heat/AC. Does that change the radiator?
No, the radiator itself is the same. However, be aware that these vans are known for coolant leaks from the metal pipes running to the rear heater core. Double-check that your leak is actually from the radiator before starting the repair.
After replacing my radiator, the coolant isn't returning from the overflow tank. Why?
This is a common issue. It usually means the small hose from the radiator neck to the overflow tank has a small air leak, or the radiator cap isn't sealing properly. The system can't create a vacuum to suck the coolant back in as it cools. Replace the small hose and ensure the clamps are tight.
Technical Specifications
OEM Part Numbers: 5170742AA 4677523AB 4677523AD 5019932AA

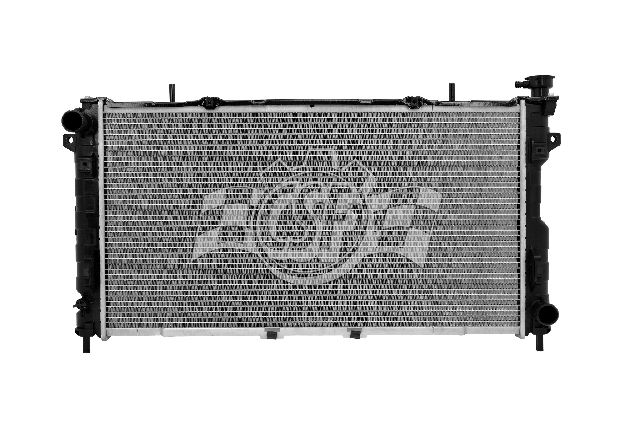

Most radiators for this generation are a single-row, crossflow design with an aluminum core and plastic tanks. They include an integrated transmission oil cooler.
