Ford E-150 A/C Accumulator Replacement Guide (2002-2008)
If your van's A/C is blowing warm, the accumulator is a likely culprit—here's what you need to know before you buy a new one.
- It is mandatory to replace the accumulator and orifice tube any time the A/C system is opened for a major repair to prevent future failures and honor compressor warranties.
- This is not a simple DIY job; it requires specialized equipment to handle refrigerant legally and to properly vacuum and recharge the system.
- Quality aftermarket brands like Spectra or Global Parts are reliable and cost-effective alternatives to OEM for this van.
- If your A/C is only warm at idle but cools while driving, check the fan clutch (per TSB 05-19-3) before replacing A/C parts.
Is Your E-150's A/C Struggling? Check the Accumulator
For owners of a 2002-2008 Ford E-150, a working air conditioner is essential for comfort on the road. When the A/C starts to weaken or fail, a common and critical culprit is the A/C accumulator. This component is not just a simple filter; it's a safeguard for your entire A/C system. Over time, the desiccant material inside becomes saturated with moisture and can no longer protect the system. Because of this, it is standard practice to replace the accumulator any time the A/C system is opened for a major repair.
Common Symptoms of a Failing A/C Accumulator
A bad accumulator shares symptoms with other A/C problems. Look out for these common signs in your E-150:
- Weak or Warm Air: This is the most common symptom. A clogged or saturated accumulator can't manage refrigerant flow properly, so the air from your vents won't be cold.
- Rattling Noises: If you hear rattling from the engine bay when the A/C is on, it could mean the desiccant bag inside the accumulator has broken apart. This is a serious issue, as the loose beads can travel through the system and destroy your new A/C compressor.
- Visible Leaks: You might see a greasy, oily residue on the accumulator canister or the lines connected to it. This indicates a refrigerant leak.
- Compressor Cycles On and Off: A clogged accumulator can cause pressure issues that make the compressor turn on and off frequently.
Check This Before Replacing Parts
Some 2004-2006 E-Series vans suffer from poor A/C cooling at idle or in traffic that gets better when driving at speed. Ford issued a Technical Service Bulletin (TSB #05-19-3) for this issue, which is caused by a faulty fan clutch, not the accumulator. If your van has these specific symptoms, investigate the fan clutch first.
Choosing the Right Aftermarket Accumulator: OEM vs. Aftermarket
For a 2002-2008 Ford E-150, you don't need to pay a premium for an OEM (Motorcraft) part. Quality aftermarket brands offer a reliable and cost-effective solution that meets or exceeds original specifications. Brands like Spectra Premium and Global Parts Distributors (GPD) are common choices that are designed for direct fit and function. Both brands state they use high-quality desiccant material, which is the most critical component of the accumulator. The most important factor is ensuring you replace the accumulator whenever you service the system.
Pro Tip: Always Replace the Orifice Tube
Your E-150 uses an orifice tube system. This small, inexpensive part works with the accumulator to regulate refrigerant flow and has a screen that can get clogged with debris. Always replace the orifice tube when you replace the accumulator to ensure the system works correctly and to validate the warranty on a new compressor.
Estimated Replacement Costs
The part itself is affordable, but the labor for A/C work requires special equipment. The total cost will reflect this specialized service.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Accumulator | $58.83 - $72.76 |
| New OEM (Motorcraft) Accumulator | $80 - $110 |
| Shop Labor (including system evacuation & recharge) | $150 - $250 |
| Total Estimated Cost (Aftermarket) | $209 - $323 |
Frequently Asked Questions (FAQ)
Can I replace the A/C accumulator myself?
While physically swapping the part is possible for a DIYer, the complete job is best left to a professional. The A/C system is under pressure and the refrigerant must be legally recovered with a special machine before you start work. Afterward, the system must be vacuumed to remove all air and moisture before being recharged with a precise amount of refrigerant and oil. Skipping these steps will cause the new parts to fail.
Do I have to replace the accumulator if I'm replacing the compressor?
Yes, absolutely. Most new A/C compressor warranties require you to replace the accumulator and orifice tube at the same time. A failed compressor often sends metal debris through the system, and failing to replace the accumulator will cause this debris to destroy the new compressor.
Do I need to add oil when replacing the accumulator?
Yes. When the old accumulator is removed, the oil inside should be drained and measured. An equivalent amount of new, correct-spec PAG oil should be added to the new accumulator before installation.
Are there any recalls on the A/C accumulator for this van?
No, as of early 2026, there are no specific recalls from Ford or the NHTSA for A/C accumulator failure on the 2002-2008 Ford E-150.
Technical Specifications

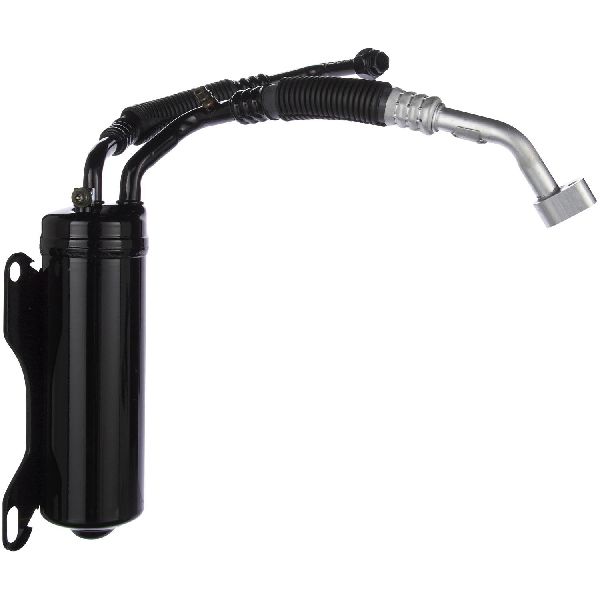

OEM Part Numbers: 5C2Z-19C836-AB 5C2Z-19C836-AA YF-3118
Canister-style accumulator for a cycling clutch orifice tube A/C system. Uses R-134a refrigerant and PAG oil. Connections are typically spring-lock fittings.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
