Choosing the Right Spark Plug Wire Set for Your 2002-2008 Mazda B3000
Get your 3.0L V6 running smoothly by understanding what to look for in a new set of spark plug wires.
- Symptoms of failure include rough idle, misfires (check engine light), and poor fuel economy.
- This is a great DIY task; replace wires one-by-one to maintain the correct firing order.
- Brands like NGK and Denso offer excellent, OE-quality performance and are highly recommended.
- Since the B3000 is a rebadged Ford Ranger, wire sets listed for the Ranger 3.0L V6 will also fit.
Is Your Truck Trying to Tell You Something? Signs of Failing Spark Plug Wires
When the spark plug wires on your B3000 start to fail, the engine can't run at its best. The electrical energy doesn't reach the spark plugs consistently, causing a handful of noticeable problems. You'll likely experience one or more of these symptoms:
- Rough Idle: The engine may shake or vibrate more than usual when the truck is stopped. This is due to uneven combustion in the cylinders.
- Engine Misfires: You might feel a stutter or hesitation from the engine, especially when accelerating. This is a classic sign that a cylinder isn't firing correctly. The check engine light may come on with codes like P0300 for a random misfire, or P0301 through P0306 for a misfire in a specific cylinder.
- Reduced Power & Fuel Economy: If your truck feels sluggish or you're visiting the gas station more often, weak spark is a likely cause. Wasted fuel and less power are direct results of inefficient combustion.
- Visible Damage: If you inspect the wires, you might see cracks, burn marks, or melted spots on the rubber boots or wire insulation.
A Note on the Mazda B3000 & Ford Ranger
Your 2002-2008 Mazda B3000 is mechanically identical to the Ford Ranger from the same years, equipped with the 3.0L Vulcan V6 engine. This means parts, including spark plug wire sets, are often listed for both trucks and are interchangeable. Don't be concerned if you see a part listed for a Ford Ranger; just verify it's for the 3.0L V6 engine.
Choosing the Right Aftermarket Wire Set
You don't need to buy the original Mazda-branded part to get quality performance. Aftermarket brands offer excellent quality, often meeting or exceeding original equipment (OE) specifications. Here’s a breakdown of the available brands:

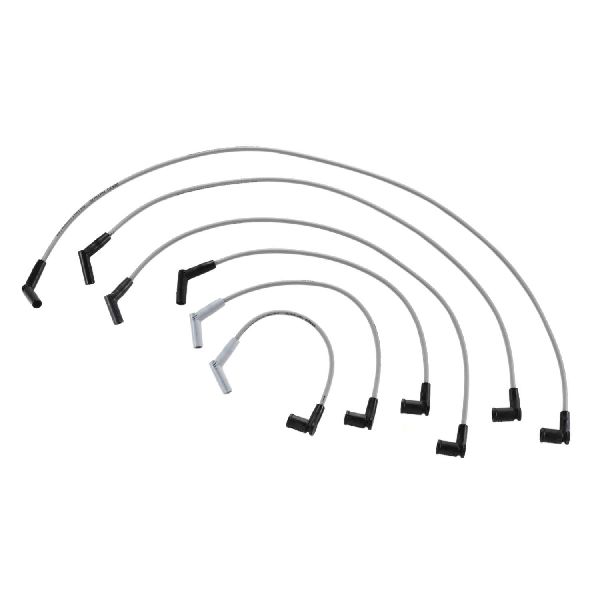

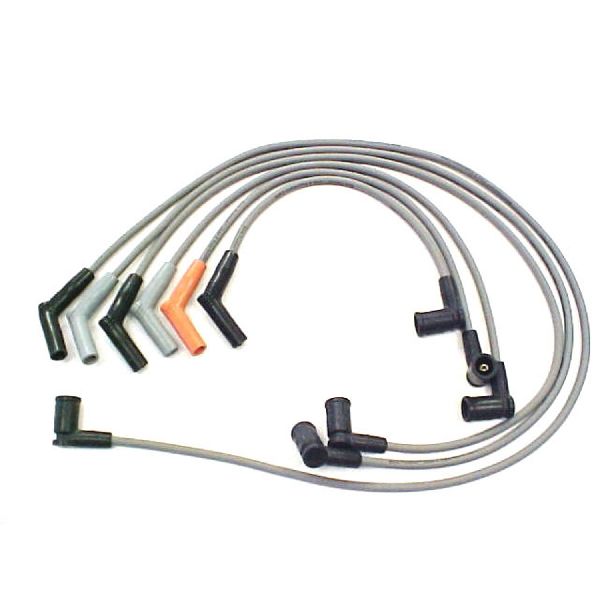

- Premium Aftermarket (NGK, Denso): Both NGK and Denso are highly respected brands, often considered OE-equivalent or even an upgrade. They are known for high-quality materials, excellent insulation to prevent electrical interference, and precise fit. For a reliable, long-lasting replacement that ensures smooth performance, these are top choices.

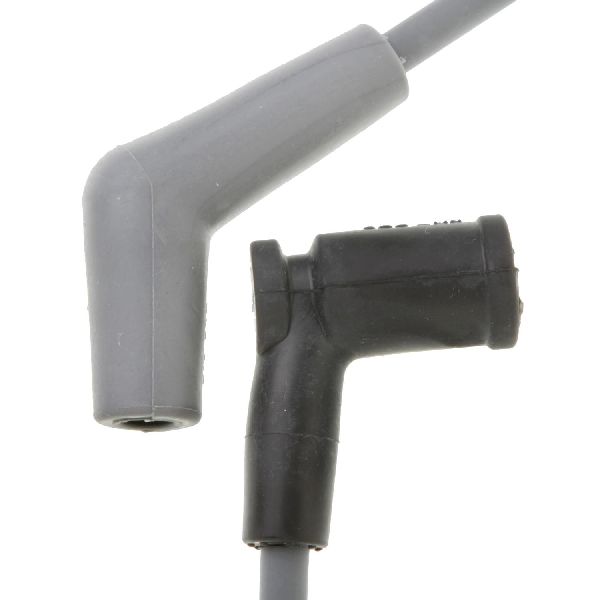

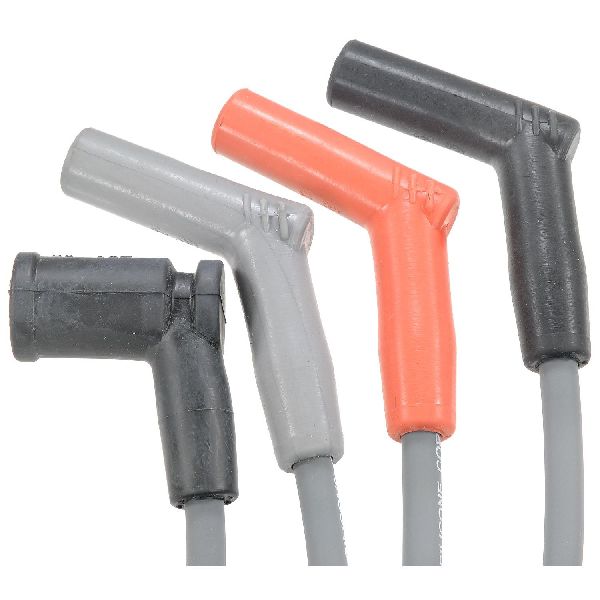

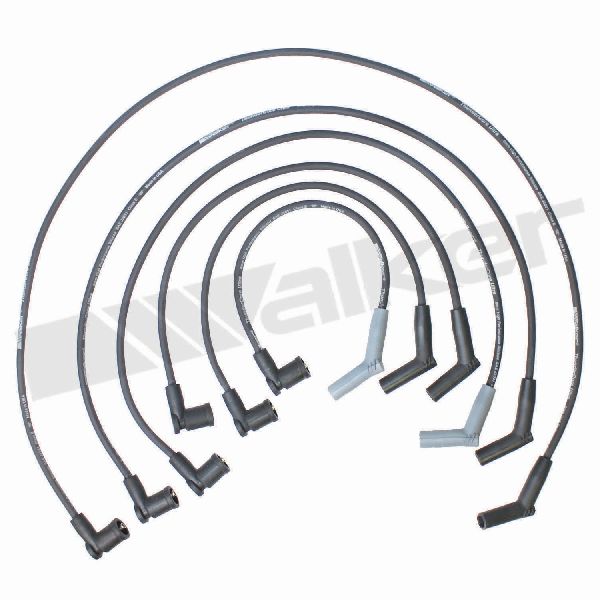

- Standard Replacement (Standard Wires, Walker Products, Prenco): These brands offer a good balance of quality and value. They are solid, dependable replacements that will restore your engine's performance to factory levels. They are a significant step up from generic, no-name parts and provide a reliable solution for daily driving.
- Performance-Focused (Granatelli): Granatelli specializes in performance parts. While their wires will work perfectly fine on a stock B3000, they are designed for high-performance applications and may be overkill for a standard daily-driven truck. However, they are a high-quality option if available.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $41.13 - $73.43 |
| Shop Labor | $140 |
Pro Tip: It is highly recommended to replace your spark plugs at the same time you replace the wires. This completes the ignition system tune-up and ensures all components are fresh. Also, apply a small amount of dielectric grease to the inside of each boot to ensure a good connection and make future removal easier.
Frequently Asked Questions (FAQ)
Can I replace the spark plug wires myself?
Yes, this is a very DIY-friendly job. The main tools needed are a ratchet and possibly a spark plug wire puller. The most important rule is to replace one wire at a time to avoid mixing up the firing order, which can prevent the engine from running correctly. The entire job can typically be done in under an hour.
Are there any recalls for the 2002-2008 Mazda B3000 spark plug wires?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls or specific technical service bulletins (TSBs) related to the spark plug wires for the 2002-2008 Mazda B3000.
Do I need special wires for my engine?
You just need a set that is specifically designed for the 3.0L V6 engine in your 2002-2008 B3000. The wire lengths are specific to reach each cylinder from the coil pack. Buying a set for the wrong engine will result in wires that are too short or too long.
What's the difference between NGK and Denso wires?
Both are excellent, top-tier brands. NGK is well-known for its ignition components and is a popular choice for many Japanese vehicles and domestic applications alike. Denso is also a major OEM supplier with a reputation for quality and durability. You cannot go wrong with either brand; choose the one that offers the better price or is more readily available.
Technical Specifications
OEM Part Numbers: ZZM4-18-140
Set of 6 wires designed for the 3.0L OHV Vulcan V6 engine with a coil pack ignition system.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
