Your 2002-2008 Mercedes-Benz ML500 Engine Camshaft Position Sensor Guide
Solving common starting problems and rough idling in your ML500 starts with this critical sensor.
- A failing sensor will cause stalling, no-start conditions, and a Check Engine Light (P0341).
- CRITICAL: Inspect the connector for oil. Oil can travel up the harness and damage the expensive engine computer.
- For reliability, choose an OEM-equivalent brand like Bosch. Avoid the cheapest options as they are prone to early failure.
- This is an easy, 30-minute DIY replacement for most owners with basic tools.
Understanding the Camshaft Position Sensor on Your ML500
If your 2002-2008 Mercedes-Benz ML500 is having trouble starting, stalling, or running poorly, a failing camshaft position sensor is a common culprit. This sensor is 🎬 Watch: Common symptoms of a bad camshaft position sensor located on the front of the engine's cylinder heads and is essential for smooth operation. Due to its location, it is exposed to significant heat, and over time, the internal electronics can fail. Oil leaks are also a frequent cause of failure for this part.
CRITICAL WARNING: Check for Oil in the Connector

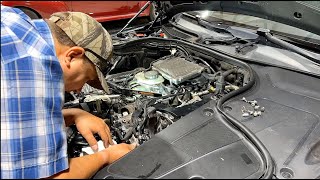

A well-known issue on the M113 engine is the sensor's O-ring failing, allowing engine oil to seep into the sensor's electrical connector. This oil can then travel up the wiring harness—a process called wicking—and potentially reach and destroy the main engine computer (ECU). This can turn a simple sensor replacement into a multi-thousand dollar repair. When 🎬 See how oil wicking can destroy your engine computer replacing your sensor, it is absolutely critical to inspect the old sensor's connector and the vehicle's wiring harness for any signs of oil. If oil is present, the harness may need to be cleaned or replaced.
Choosing the Right Aftermarket Sensor
When it comes to critical electronic sensors on a Mercedes-Benz, quality matters. While budget-friendly options are available, they often come with a higher risk of premature failure. This can mean doing the job twice or being left stranded. For this part, it is highly recommended to use a brand known for quality and reliability.
Brand Quality Tiers
- Tier 1: OEM & OEM-Equivalent Brands (Recommended): Bosch is a known original equipment manufacturer for Mercedes-Benz. Choosing a Bosch sensor is the closest you can get to buying a part from the dealer, ensuring the best fit, performance, and longevity. Other German brands like Hella and Vemo also have a strong reputation for quality in European applications.
- Tier 2: Reputable Aftermarket Brands: Brands like Delphi, Standard Ignition (SMP), and Walker Products are established names in the aftermarket. They offer a balance of quality and value, and are generally more reliable than lesser-known brands.
- Tier 3: Economy Brands: This category includes brands like Dorman, Facet, Global Parts, Motorad, and others. While the low price is tempting, these sensors have a higher reported failure rate. Given the risk of stalling and the critical oil-wicking issue, using a Tier 1 brand is a wise investment for peace of mind.
Pro Tip: Regardless of the brand you choose, apply a small amount of clean engine oil to the new O-ring before installation. This helps it slide into place easily and ensures a proper seal to prevent future leaks.
Frequently Asked Questions (FAQ)
Is it hard to replace the camshaft position sensor on an ML500?
No, this is considered an easy DIY job for most owners. It typically takes less than 30 minutes with basic hand tools. The sensor is located on the front of the engine and is held in by a single bolt, usually an E8 Torx. You will need to remove the plastic engine cover to access it.
What is the difference between a camshaft and crankshaft sensor? 🎬 Watch: How camshaft and crankshaft sensors work together
They work as a team. The camshaft sensor tracks the position of the top part of the engine (valves), while the crankshaft sensor tracks the bottom part (pistons). The computer compares signals from both to get a complete picture of the engine's cycle. A failure in either can cause similar symptoms, but they will generate different trouble codes.
Can I just replace the O-ring instead of the whole sensor?
While a leaking O-ring is a common problem, if the sensor is old, it's wise to replace the entire unit. The internal electronics are also a wear item. Replacing the whole sensor ensures you have a new O-ring and fresh electronics, preventing you from having to do the job again if the sensor itself fails soon after.
Why should I avoid the cheapest sensor available?
Cheap aftermarket sensors for European vehicles are notorious for failing quickly or not working correctly out of the box. Symptoms can include continued performance issues or the Check Engine Light returning. Given that a failed sensor can cause your ML500 to stall in traffic, investing in a quality part from a brand like Bosch is a smart safety and reliability choice.
Helpful Videos
Technical Specifications
The M113 V8 engine in the 2002-2008 ML500 uses one camshaft position sensor. It is a Hall effect sensor that reads the position of the camshaft and sends a signal to the ECU. Always verify the part number with your vehicle's VIN before ordering.
