Chevrolet Trailblazer 2002-2009 Disc Brake Caliper Replacement Guide
Keep your Trailblazer's braking system reliable by understanding when and how to replace your brake calipers.
- A common failure on 2002-2009 Trailblazers is seized caliper slide pins, leading to uneven pad wear.
- The original aluminum rear calipers are known to leak brake fluid after 100,000 miles.
- Always replace calipers in pairs (both front or both rear) to maintain balanced braking.
- New aftermarket calipers are affordable and often a better choice than remanufactured units for this vehicle.
Is it Time to Replace Your Trailblazer's Brake Calipers?
The brake calipers on your 2002-2009 Chevrolet Trailblazer are built to last, but they don't last forever. Corrosion, heat, and age can cause them to fail. A common issue, particularly for the GMT360 platform (which includes the Trailblazer, Envoy, and Rainier), is for caliper slide pins to seize. This is especially common in areas with heavy road salt usage. When a pin seizes, the caliper can't "float" correctly, leading to uneven and rapid brake pad wear. Another known issue is with the original aluminum rear calipers, which can develop leaks around 100,000 miles.
Symptoms of a Failing Brake Caliper:
🎬 Watch this guide to help diagnose a seized brake caliper.- Vehicle Pulling to One Side: A stuck caliper can cause the vehicle to pull to the left or right when you apply the brakes.
- Uneven Brake Pad Wear: If you notice one brake pad is significantly more worn than the other on the same wheel, it's a strong sign of a seized caliper pin or piston.
- Brake Fluid Leaks: Puddles of brake fluid near the wheels or a constantly low master cylinder reservoir point to a leaking caliper seal.
- Spongy or Stiff Brake Pedal: A change in brake pedal feel can indicate a caliper issue. A spongy pedal might mean air is in the lines from a leak, while a stiff pedal could be a seized piston.
- Dragging Sensation or Burning Smell: A caliper that doesn't release properly will cause the brake pad to drag on the rotor, generating excess heat and a noticeable burning odor.
Known Issues: Seized Slide Pins & Leaking Rear Calipers

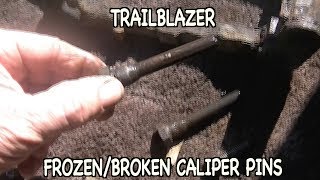

A very common problem on the 2002-2009 Trailblazer is seized or frozen caliper slide pins, 🎬 See how to fix broken or frozen caliper bracket pins. often due to corrosion. This prevents the caliper from applying pressure evenly, causing pads to wear out quickly on one side. The original aluminum rear calipers are also known for leaking brake fluid after about 100,000 miles. When replacing calipers, it's a good practice to replace them in pairs (both front or both rear) to ensure even braking performance.
Choosing the Right Aftermarket Caliper
When you're shopping for a new aftermarket caliper, you'll find several brands and types. For the Trailblazer, you don't necessarily need to buy the most expensive option to get a quality part.
- Pro-Grade (ACDelco, Raybestos, Centric): These brands offer new calipers that often meet or exceed original equipment (OE) quality. ACDelco is GM's own parts brand, offering a direct-fit replacement. Raybestos and Centric are highly respected in the aftermarket and offer new calipers, sometimes with features like protective coatings to resist corrosion, which is a plus for the Trailblazer.
- Performance (Powerstop): If you do a lot of towing or just want more braking power, Powerstop offers kits that include upgraded calipers (often powder-coated for durability), pads, and rotors.
- Standard/Value (Cardone, Dynamic Friction, BBB Industries): These brands provide a cost-effective solution. Cardone is a major supplier of both new and remanufactured calipers. While remanufactured calipers can be a good value, quality can sometimes be inconsistent. For a daily driver, a new caliper from these brands is often a reliable and affordable choice.
New vs. Remanufactured
For the 2002-2009 Trailblazer, new aftermarket calipers are widely available and competitively priced. A new caliper gives you peace of mind with all-new components and seals, and you don't have to worry about a core charge. While quality remanufactured calipers are a viable option, the small price difference often makes a new caliper the better choice for long-term reliability.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Caliper | $53 - $182 |
| Remanufactured Aftermarket Caliper | $45 - $120 |
| New OEM (ACDelco) Caliper | $90 - $250 |
| Professional Labor | $100 - $200 per caliper |
Frequently Asked Questions
Do I need to replace my calipers when I change my brake pads?
Not necessarily. If your calipers are not leaking, the pistons compress smoothly, and the slide pins move freely, you can reuse them. However, given the age of these vehicles and the common issue with seized pins, it's crucial to inspect them thoroughly during any brake job.
Should I replace calipers in pairs?
Yes, it is highly recommended to replace calipers in pairs (both front or both rear). This ensures that braking force is balanced side-to-side, preventing pulling and ensuring predictable, safe stops.
What is a caliper bracket and do I need to replace it?
The caliper bracket holds the caliper and brake pads in place. You typically do not need to replace the bracket unless it is damaged or severely corroded. However, the slide pins are housed in the bracket, and sometimes a frozen pin can damage the bracket itself, requiring replacement. Many new aftermarket calipers come with a new, pre-lubricated bracket included.
What tools are needed to replace a Trailblazer brake caliper? 🎬 Follow this step-by-step walkthrough to replace your front brake calipers.
You will need a jack and jack stands, a lug wrench (19mm socket), a set of metric wrenches (10mm, 11mm, 14mm) and sockets, a ratchet, a torque wrench, a pry bar, brake fluid, and a container for bleeding the brakes. A caliper piston compression tool is also helpful.
Helpful Videos
Technical Specifications
The 2002-2009 Trailblazer uses twin-piston front calipers and single-piston rear calipers. Early models used aluminum calipers, which were later superseded by cast iron versions in 2006 to address complaints of a soft pedal feel due to caliper flex. When replacing, ensure you have the correct caliper for your specific model (e.g., base vs. EXT), as the mounting brackets can differ.
