Chevrolet Trailblazer Ignition Switch Guide: 2002-2009
Your complete guide to diagnosing and replacing the ignition switch in your 2002-2009 Chevrolet Trailblazer.
- A bad ignition switch causes no-start, stalling, and bizarre electrical issues like the radio and A/C failing at the same time.
- The Trailblazer was not part of the main GM ignition switch recall, but it's still a very common failure point.
- Replacement is a simple DIY job that takes about an hour and saves over $200 in labor costs.
- A 30-minute anti-theft relearn procedure is required after you install the new part.
Is Your Trailblazer's Ignition Switch Failing?
A bad ignition switch in the 2002-2009 Trailblazer is a common problem that can mimic other failures, like a dead battery or a bad starter. Because the switch controls power to so many different parts of the truck, its failure symptoms can be widespread and seem unrelated. One of the most telling signs is when multiple, random electrical accessories (like the radio and air conditioning) stop working at the same time the vehicle fails to start or stalls.
Key Symptoms of a Bad Ignition Switch
- No Crank, No Start: You turn the key and nothing happens, or you only hear a single click. This can be intermittent, working sometimes and not others.
- Engine Stalls While Driving: The engine can shut off unexpectedly, often after hitting a bump. This is a critical safety failure, as it also causes a loss of power steering.
- Widespread Electrical Problems: The radio, HVAC controls, blower motor, or dashboard lights may flicker or stop working entirely. A diagnostic scan might show communication error codes like U1041.
- Key Won't Turn or Feels Stuck: While this can also be a lock cylinder issue, binding in the switch can make it difficult to turn the key.
Was the Trailblazer Part of the GM Ignition Switch Recall?
This is a common point of confusion. The 2002-2009 Chevrolet Trailblazer was NOT part of the main, highly-publicized GM ignition switch recall that involved cars like the Chevrolet Cobalt and Saturn Ion. Those vehicles had a specific defect where a heavy keychain could cause the switch to turn off while driving. However, GM did issue a separate recall for service parts (NHTSA Recall 14V-404). This means it was possible for a Trailblazer to have had a defective switch installed during a previous repair. If you have widespread electrical issues, it's a known failure point regardless of the recall history.
Choosing the Right Aftermarket Ignition Switch
For a vehicle of this age, an aftermarket ignition switch offers excellent value. The original ACDelco parts are still available, but quality aftermarket brands meet or exceed the original specifications for a lower price. The replacement is a straightforward job for a DIY mechanic.
Brand Quality Tiers
- Pro-Grade (Standard Ignition, Rostra): Standard Ignition (also known as SMP) is a long-trusted brand among professional technicians for its quality and reliability, often meeting or exceeding OEM specs. Rostra is an OE manufacturer for some brands and is well-regarded for its electronic components, ensuring high quality.
- DIY-Favorite (Dorman): Dorman is one of the most popular aftermarket brands, and their 924-715 switch is a common, widely available fix for the Trailblazer. While general Dorman quality can sometimes be hit-or-miss according to forum discussions, this specific part is a well-established solution.
- Value-Oriented (Replacement): This represents a category of budget-friendly, often un-branded or store-branded parts. They can be a viable option if budget is the primary concern, but may not have the same long-term durability or quality control as the named brands.
Installation Tip: Don't Touch the Gear!
The new ignition switch has a small white or black gear that is 'timed' to the position of the lock cylinder. Do not rotate this gear before installation. The switch is designed to be installed with the key out of the ignition (in the 'LOCK' position). After installation, you will likely need to perform a 'Passlock' or 'Theft Relearn' procedure, which typically involves turning the key to 'ON' for 10 minutes, off, and repeating two more times.
Cost of Replacing a Trailblazer Ignition Switch
The cost is very reasonable, especially if you do the work yourself. The part is inexpensive and the job requires only basic tools and about an hour of your time.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $22 - $41 |
| New OEM (ACDelco) Switch | $35 - $60 |
| Shop Labor | $170 - $250 |
| Total (Shop Repair) | $192 - $310 |
| Total (DIY Repair) | $22 - $41 |
Frequently Asked Questions
Will I need new keys if I replace the ignition switch?
No. You are replacing the electronic switch, not the mechanical lock cylinder that the key fits into. Your original keys will continue to work perfectly.
What's the difference between the ignition switch and the lock cylinder?
The lock cylinder is the mechanical tumbler you put your key into. The ignition switch is the electronic part that sits behind the cylinder and actually sends power to the vehicle's systems. They are separate parts on the Trailblazer.
Is a 'theft relearn' procedure required after replacement?
Yes, most likely. The Trailblazer uses a Passlock anti-theft system. After replacing the switch, you will likely need to perform a 30-minute relearn procedure. This involves turning the key to the 'ON' position for 10 minutes until the security light goes out, turning it 'OFF' for 10 seconds, and repeating this process a total of three times.
How difficult is the replacement? Can I do it myself?
This is a great DIY job for beginners. It involves removing the lower dash and steering column covers. The switch is held in by plastic tabs and is easily accessible. The most common tools needed are Phillips and flathead screwdrivers and a socket set. The difficulty is about a 2 out of 5.

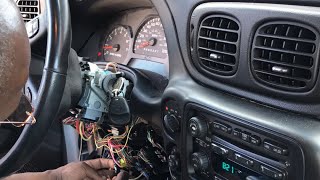

Helpful Videos
Technical Specifications
OEM Part Numbers: 15242754 12458191
Common Aftermarket Part Number: Dorman 924-715. The switch is a 7-terminal electronic component located on the steering column, separate from the lock cylinder.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
