Chevrolet Trailblazer Universal Joint Replacement Guide (2002-2009)
Address clunks and vibrations by understanding and choosing the right U-joint for your Trailblazer.
- A clunking noise when shifting or a vibration at speed are the most common signs of a failing U-joint on your Trailblazer.
- Do not drive on a failing U-joint; complete failure can cause the driveshaft to detach, leading to severe damage.
- For durability, choose premium aftermarket brands like Dana Spicer, Moog, or SKF over cheaper alternatives.
- Decide between non-greasable (stronger, no maintenance) and greasable (requires regular service) U-joints based on your preference.
Is Your Trailblazer Making Noise? It Could Be a Bad U-Joint
A failing universal joint on a 2002-2009 Chevrolet Trailblazer will give you clear warning signs. Ignoring them can lead to a complete failure, where the driveshaft can separate from the vehicle, causing significant damage and leaving you stranded. Listen and feel for these common symptoms:
- Clunking Noise: A loud "clunk" or "bang" when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint with too much play.
- Vibrations: You might feel a vibration throughout the vehicle that gets worse as you speed up. This can often be mistaken for a tire issue, but if balancing your tires doesn't fix it, the U-joint is a likely suspect.
- Squeaking or Chirping: A rhythmic squeaking noise that changes with your speed often points to a U-joint that has lost its internal grease and is now running dry.
Can You Drive with a Bad U-Joint?
It is not recommended. A U-joint can fail completely and without much warning. If it breaks at speed, the driveshaft can fall and cause catastrophic damage to your transmission, exhaust, and the underside of your truck. If you must drive, do so at low speeds with very light acceleration and get it inspected immediately.
Choosing the Right Aftermarket U-Joint

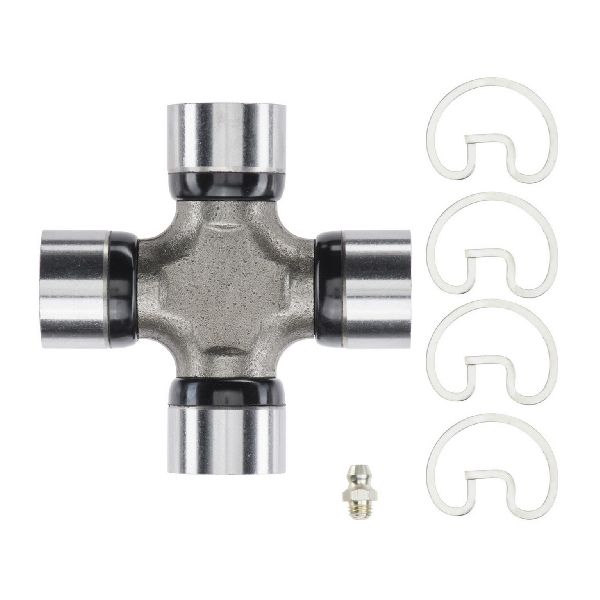

The original U-joints on the Trailblazer were made with a plastic injection to hold the caps in place, which must be melted out during replacement. Aftermarket parts use standard snap rings. When choosing a replacement, you have two main types: greasable and non-greasable (sealed).
- Non-Greasable (Sealed): These are often considered stronger because the cross is solid, without the channels drilled for grease. They are maintenance-free and a good choice if you prefer a "fit it and forget it" part. Many high-quality brands like Dana Spicer focus on sealed joints for their strength and durability.
- Greasable: These have a zerk fitting that allows you to pump in fresh grease, flushing out old grease and contaminants. This can extend the part's life, but only if you perform regular maintenance every 5,000 miles or so. Brands like Moog are well-known for their greasable designs.
Aftermarket Brand Tiers for Your Trailblazer
Not all brands are created equal. Here’s how they generally stack up based on quality and owner experiences:
- Premium (Best Quality): Dana Spicer Chassis is widely regarded as the original equipment (OE) supplier or equivalent, known for tight tolerances and durability. Moog and SKF are also top-tier brands offering strong, reliable joints, often with problem-solving features like improved seals.
- Standard (Good Quality): ACDelco offers Professional and Gold series parts that provide good, reliable performance, often being re-branded parts from other quality manufacturers. GMB is a solid mid-range option that provides a good balance of quality and cost.
- Economy: Brands like Yukon Gear may offer a lower price point, but long-term durability might be less than premium options. For a critical part like a U-joint, investing in a better quality brand is often worth it.
Pro Tip: While you are replacing one U-joint on a driveshaft, it's smart to replace the other at the same time. The labor is nearly the same, and if one has failed from age and mileage, the other is likely not far behind.
Cost to Replace a Trailblazer Universal Joint
The cost can vary depending on your location and whether you do the work yourself or hire a professional. Replacing a U-joint requires some specialized tools, like a press or a ball joint tool kit 🎬 Watch a step-by-step guide on replacing Trailblazer U-joints with Moog parts., to press the old joint out and the new one in without causing damage.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint | $19 - $238 |
| Shop Labor | $122 - $179 |
| Total Professional Replacement | $211 - $268 (per joint) |
Frequently Asked Questions
How many U-joints does my Trailblazer have?
A 2WD Trailblazer has two U-joints on the rear driveshaft. A 4WD model has those same two on the rear driveshaft, plus two more on the front driveshaft, for a total of four.
Are the front and rear U-joints the same?
Not always. Part numbers can differ for the joints at the transmission end versus the axle end, and between the front and rear driveshafts on 4WD models. It is critical to verify the exact part number for each specific location before ordering.
Do I need to get my driveshaft balanced after replacing the U-joints?
It is not always required if the job is done carefully, but it is a good practice. If you experience any vibration after the replacement, the driveshaft should be professionally balanced. Marking the driveshaft's orientation to the yoke before removal can help maintain the balance.
Are there any recalls for Trailblazer U-joints?
As of late 2024, there are no specific NHTSA recalls for universal joints on the 2002-2009 Chevrolet Trailblazer. Always check the latest recall information for your specific vehicle VIN.
Helpful Videos
Technical Specifications
The 2002-2009 Trailblazer uses U-joints with external snap rings for aftermarket replacements. The original factory joints are a plastic-injected design that must be melted out. Sizes can vary between front/rear driveshafts and 2WD/4WD models, so verifying fitment for the specific position is essential.
