Ford E-150 Ignition Coil Guide: 2002-2009
Fix your van's rough idle and misfires by choosing the right replacement ignition coil.
- A flashing check engine light signals a severe misfire; get it checked immediately to prevent catalytic converter damage.
- For best results, use OEM-quality aftermarket brands like Bosch, Delphi, NGK, or Denso.
- On high-mileage vans, it's wise to replace all eight coils and the spark plugs at the same time.
- Access is tight in the E-150 engine bay; the passenger side coils are the most difficult to reach.
Is Your E-150 Ignition Coil Failing?
Ignition coil failure is a common issue on Ford's modular engines, including the 4.6L and 5.4L V8s found in your E-150. The constant heat and vibration in the engine bay eventually take their toll. Symptoms often start small but can worsen, leaving you with a poorly running van. Ignoring a bad coil can lead to more expensive repairs, like a damaged catalytic converter, down the road.
Symptoms of a Bad Ignition Coil
If your E-150 has a bad coil, you'll likely notice one or more of these signs:
- Engine Misfires: The van may shake, shudder, or jerk, especially under acceleration or when idling.
- Rough Idle: The engine may cough or sputter when you're stopped at a light.
- Check Engine Light: A failing coil will almost always trigger the check engine light. You may see codes like P0300 (random misfire) or a cylinder-specific code like P0301, P0302, etc. A code like P0351 points directly to a coil circuit problem.
- Loss of Power: Your work van will feel sluggish and won't accelerate as it should.
- Worse Gas Mileage: An inefficient spark means you'll be visiting the gas station more often.
- Stalling: In severe cases, a complete coil failure can cause the engine to stall.
Known Issues: Moisture and Wiring
Ford E-150 vans can be prone to moisture collecting in the spark plug wells, which can cause the coil to short out and create a misfire. Always check for and clean out any moisture when replacing a coil. Additionally, a rare but documented issue involves the engine wiring harness rubbing against the EGR tube, which can cause a short that melts the ignition coil. If you find a melted coil, inspect the wiring harness near the computer (PCM) for damage.
Choosing the Right Aftermarket Ignition Coil
When it comes to ignition parts for these Ford vans, quality matters. While cheap, unbranded coils are available, forum discussions are filled with stories of them failing within months. Sticking with a reputable brand is your best bet to avoid doing the job twice.
Brand Quality Tiers
- Premium Aftermarket (OEM Quality): Brands like Bosch, Delphi, and NGK are trusted OE suppliers and offer quality that is on par with the original Motorcraft parts. Denso is often the original manufacturer for Motorcraft coils, making them an excellent choice if available. These brands use high-quality materials designed to resist heat and vibration for long-term reliability.

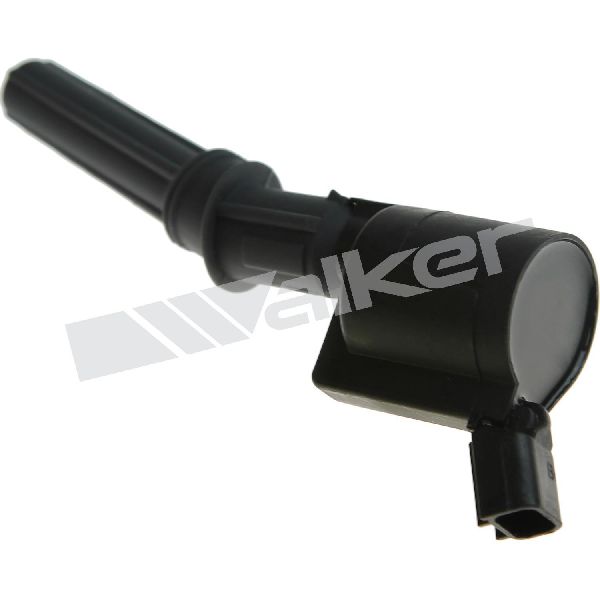

- Mid-Grade Aftermarket: Standard Motor Products (SMP) and Walker Products are established aftermarket brands. SMP has a long history, but some users feel the quality can be inconsistent depending on the product line. If choosing SMP, look for their standard line, not their economy T-Series.
- Economy Aftermarket: Brands like DriveWire and other private labels offer the lowest price point. While tempting, be aware that these are often associated with a higher risk of premature failure. Some owners buy two sets of these cheap coils to have spares on hand.
Pro Tip: Replace Boots and Use Dielectric Grease
Sometimes the rubber boot on the coil is the only part that has failed. You can often buy just the boots and springs for a cheaper repair. Whenever you install a new coil or boot, apply a small amount of dielectric grease to the inside of the boot opening. This seals out moisture and prevents the boot from getting stuck to the spark plug.
Cost of Replacing Ford E-150 Ignition Coils
| Part Type | Estimated Cost (Part Only) |
|---|---|
| New OEM (Motorcraft) | $45 - $70 per coil |
| New Aftermarket (Premium) | $35 - $60 per coil |
| New Aftermarket (Mid-Grade/Economy) | $22 - $40 per coil |
| Shop Labor | $100 - $250 |
Frequently Asked Questions
Should I replace all 8 ignition coils at once?
If your van has over 100,000 miles, it's a good idea to replace all eight coils at the same time. Coils are exposed to the same conditions, so when one fails, others are likely to fail soon. This saves you from having to repeat the repair in the near future.
How do I find out which coil is bad? 🎬 See how to diagnose a misfire even without a trouble code.
The easiest way is to use an OBD-II scanner. It will give you a trouble code (e.g., P0304 for cylinder #4) that points to the misfiring cylinder. If you don't have a scanner, you can try unplugging the electrical connector from each coil one by one while the engine is idling. If you unplug a coil and the engine's idle doesn't change, you've found the dead cylinder.
Is it hard to replace the coils on an E-150? 🎬 Watch this step-by-step guide to replacing coils on your Ford van.
No, it's a job most DIYers can handle. The coils are held on by a single 7mm or 8mm bolt. The main challenge in a van is access, especially for the coils on the passenger side and near the back of the engine. Taking your time and having a few different socket extensions will make the job much easier.
🎬 Check out these expert tips for accessing hard-to-reach coils and plugs.What is a coil boot?
The coil boot is the long rubber tube that connects the ignition coil to the spark plug. It insulates the high-voltage spark and keeps moisture out. These can crack and fail over time, and can often be replaced separately from the coil itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3W7Z-12029-AA DG508

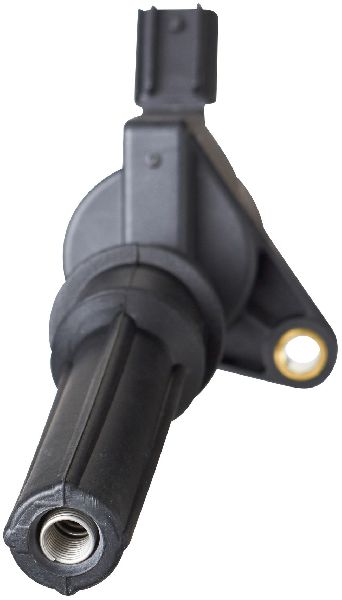

Coil-on-Plug (COP) design. Each coil is secured by one 7mm or 8mm bolt. Uses a 2-pin electrical connector.
