A Guide to Replacing the Engine Intake Manifold Gasket on a 2002-2009 Ford Explorer
Experiencing a rough idle, coolant leaks, or mysterious check engine lights? Your intake manifold gaskets could be the culprit.
- Crucially inspect the plastic intake manifold for cracks when replacing the gaskets; it's a very common failure point on both V6 and V8 engines.
- Common symptoms are coolant leaks near the front of the engine, a rough idle, and check engine light codes P0171/P0174 for a lean condition.
- Quality aftermarket brands like Victor Reinz and Dorman offer reliable replacements that are often more affordable than OEM parts.
- This is a moderately difficult DIY job that requires 2-6 hours, draining the coolant, and careful work around the fuel system.
Signs of a Failing Intake Manifold Gasket
A bad intake manifold gasket on a 2002-2009 Explorer can cause several noticeable problems. One of the most common is a coolant leak, especially on the 4.6L V8, where the plastic intake manifold can crack near the thermostat housing, often mistaken for just a gasket issue. On the 4.0L V6, you might hear a hissing sound from a vacuum leak. Keep an eye out for these specific symptoms:
- Coolant Leaks: Puddles of coolant under the front of the engine or a constantly low coolant level. You might also smell antifreeze after the engine has been running.
- Engine Overheating: A significant coolant leak caused by the gasket can lead to the engine overheating.
- Rough Idle & Misfires: A vacuum leak from a failed gasket lets extra air into the engine, disrupting the air-fuel mixture. This can cause a rough, unstable idle and engine misfires, which may trigger the check engine light.
- Check Engine Light: Codes like P0171 and P0174 (System Too Lean) are very common 🎬 See how to replace upper and lower gaskets on the V6. with intake gasket vacuum leaks. Misfire codes (P0300-P0308) can also appear.
A Critical Known Issue: Cracked Intake Manifolds

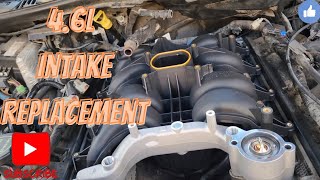

Both the 4.0L V6 and 4.6L V8 engines in this generation of Explorer can suffer from cracked plastic intake manifolds. This is especially common on the 4.6L V8 around the front coolant crossover passage by the thermostat. The plastic becomes brittle over time and can split, causing a major coolant leak. Often, the gasket is blamed when the manifold itself is the real problem. It is essential to carefully inspect the entire intake manifold for cracks when you replace the gaskets. If you find any, the manifold must be replaced. Aftermarket brands like Dorman offer replacement manifolds, some with design improvements like a metal coolant crossover to prevent future cracks.

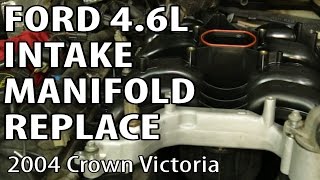

🎬 Watch this step-by-step guide to replacing a cracked V8 manifold.Choosing the Right Aftermarket Gasket Set
When shopping for a new aftermarket gasket set, you have several quality options. OEM gaskets from Ford are a reliable choice, but quality aftermarket brands often provide equal or better performance, sometimes with design improvements.
- Victor Reinz: A well-respected brand that is an original equipment (OE) supplier for many automakers. They are known for high-quality materials that hold up well against modern coolants and heat. Many technicians consider their quality to be on par with or better than OEM.
- Dorman: A popular aftermarket brand known for creating "OE FIX" parts that address common failure points of the original design. While some of their complete intake manifold kits have mixed reviews regarding hardware, their gasket sets are generally considered a reliable, direct-fit replacement.
- Cometic Gasket: Often considered a premium, high-performance brand. While potentially overkill for a stock daily-driven Explorer, their gaskets are known for excellent durability and sealing, making them a top-tier choice if you want the best available.
- Apex: Generally positioned as a budget-friendly option. They provide a direct replacement part that meets basic requirements and can be a good choice if cost is the primary concern.
Pro Tip: Some experienced mechanics recommend using a thin layer of RTV silicone sealant around the coolant ports and discarding the rubber end seals in favor of a solid bead of RTV for a more durable seal, especially on V8 models.
Cost to Replace Ford Explorer Intake Manifold Gaskets
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $21 - $87 |
| New OEM Gasket Set | $100 - $150 |
| Shop Labor | $218 - $320 |
| Total Professional Replacement | $240 - $407 (parts + labor) |
Frequently Asked Questions
Should I replace my intake manifold at the same time as the gaskets?
You should always inspect the plastic intake manifold for cracks, especially around the thermostat housing and coolant passages. Given the high failure rate of the original plastic manifolds on the 4.6L V8 and 4.0L SOHC engines, if your vehicle has high mileage and the original manifold, replacing it as a preventive measure is highly recommended.
Is this a difficult job to do at home?
This is a moderately difficult job. It requires draining the cooling system, disconnecting fuel lines, and removing numerous components to access the manifold. It is feasible for an experienced DIY mechanic, but a beginner may find it challenging. The job can take between 2 to 6 hours depending on the engine and your experience level.
Are there any recalls for this issue?
Searches of the NHTSA database did not show any specific recalls for the intake manifold gaskets or cracking plastic intake manifolds on the 2002-2009 Ford Explorer. There was a class-action lawsuit for this issue on the 4.6L V8 engine, but it is no longer active.

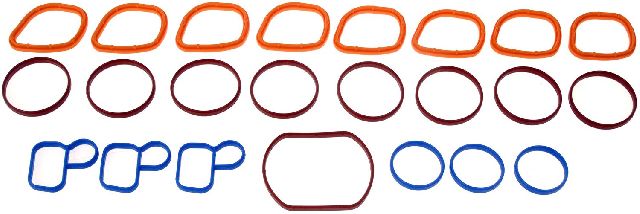

Do the gasket kits come with everything I need?
Most gasket sets include the main gaskets for sealing the manifold to the heads. However, you should check if the kit includes upper plenum gaskets (if applicable), a new thermostat gasket, and any required O-rings. You will likely need to purchase RTV sealant separately.
Helpful Videos
Technical Specifications
Gasket material varies by brand, including composite paper, rubber molded on a plastic carrier, and rubber molded on a steel carrier. Some aftermarket gaskets feature steel cores for improved durability over the original plastic designs.
