GMC Envoy 2002-2009 Disc Brake Caliper Replacement Guide
Everything Envoy owners need to know about replacing failing brake calipers.
- Seized calipers are a common problem on the 2002-2009 GMC Envoy, often causing pulling, burning smells, and uneven pad wear.
- When replacing a caliper, it's critical to also replace the pads and rotor on that wheel and to bleed the brake system thoroughly.
- New aftermarket calipers from brands like Raybestos or ACDelco offer OEM-like quality without the hassle of a core charge.
- The front calipers on some models used phenolic (plastic) pistons which can swell and stick over time; replacing with new units is the best fix.
Is Your Envoy's Brake Caliper Failing?
A common issue on the 2002-2009 GMC Envoy is a seized or sticking brake caliper. This happens when the caliper's pistons or slide pins get stuck due to rust, debris, or age. When a caliper sticks, it might not release the brake pad from the rotor after you let go of the pedal. This causes constant friction, leading to other problems.
Symptoms of a Bad Caliper:
- Pulling to One Side: Your Envoy might pull to the left or right when you brake, or even while driving straight. This happens because one brake is dragging while the others are not.
- Burning Smell: A strong, acrid burning smell from one of the wheels is a classic sign of a dragging brake. This is the brake pad overheating from constant contact with the rotor. You might even see smoke.
- Sluggish Feeling: The truck may feel slow or 'doggy' and require more gas to get moving, as if the parking brake is slightly on.
- Grinding Noises: A grinding or squealing sound can occur as the stuck pad wears down unevenly and metal parts start scraping together.
- Uneven Pad Wear: When you inspect your brakes, you might find the inner brake pad is worn down 🎬 Watch: How to diagnose a bad brake caliper to the metal while the outer pad looks almost new. This is a tell-tale sign of a caliper problem.
Can I Drive with a Seized Caliper?
It is not recommended. Continuing to drive can cause the brake to overheat, potentially damaging the rotor, wheel bearing, and even starting a fire in extreme cases. It also significantly reduces your ability to stop safely.
Known Issues, Recalls, and TSBs
While there are no widespread recalls specifically for the brake calipers on the 2002-2009 GMC Envoy, the platform (shared with the Chevy Trailblazer) is known for caliper issues. The most common problems are seized pistons and stuck slide pins, often due to corrosion and debris. Some forum members have noted that the original phenolic (plastic) pistons in the front calipers can swell over time, causing them to stick in the caliper bore, especially after pushing them back to install new pads. There was a recall for a potentially faulty left-front brake *pipe* on some models, but not the caliper itself. No specific Technical Service Bulletins (TSBs) for caliper failure were found, though some TSBs for other GM trucks mention issues like uneven pad wear caused by caliper problems.
Choosing a New Aftermarket Caliper
When replacing a caliper on your Envoy, you have several choices. Since new OEM calipers can be expensive, most owners opt for new or remanufactured aftermarket parts.
| Brand Tier | Brands | Description |
|---|---|---|
| Premium / OEM-Equivalent | ACDelco (New), Raybestos (Element3 New) | ACDelco is the original parts supplier for GM, and their new calipers provide a direct fit and function. Interestingly, some research shows that Raybestos Element3 new calipers are identical to ACDelco Professional new calipers, sometimes at a lower price. These are excellent choices for a factory-quality repair. |
| Performance Upgrade | PowerStop | PowerStop calipers often come powder-coated for better corrosion resistance and are sold in kits with upgraded pads and rotors. They are a good option if you want improved braking performance and appearance. All their calipers are pressure tested. |
| Quality Mid-Range | Centric, Dynamic Friction | These brands offer a good balance of quality and price. They are a reliable choice for daily driving and are widely available. |
| Budget / Remanufactured | Cardone, BBB Industries | These are often remanufactured units, meaning an original caliper has been rebuilt with new seals and components. Quality can sometimes be inconsistent, but they are a very cost-effective solution. It's a good idea to buy them from a local store for easier returns if you get a defective part. |
New vs. Remanufactured
For the GMC Envoy, Raybestos and ACDelco offer completely new calipers that require no core charge. This saves you the hassle of returning your old part. Remanufactured calipers from brands like Cardone are cheaper but require you to return the old caliper (the 'core'). While remanufactured parts are generally reliable, a new caliper eliminates any risk of issues from a worn-out original casting.
Estimated Replacement Costs
The cost to replace a brake caliper can vary based on your location and whether you do the work yourself.
| Item | Cost Range |
|---|---|
| New Aftermarket Caliper (Part Only) | $51 - $182 |
| Shop Labor Cost | $252 per caliper (estimate) |
| Total Professional Replacement | ~$355 per caliper |
Frequently Asked Questions
Should I replace calipers in pairs?
Yes, it is highly recommended. If one caliper has failed due to age and corrosion, the one on the other side is likely not far behind. Replacing them in pairs ensures even braking performance and prevents you from having to do the same job twice in the near future.
Do I need to replace my rotors and pads with the caliper?

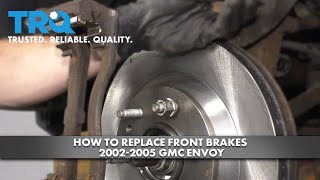

Almost always, yes. A seized caliper generates extreme heat, which can warp the brake rotor and will cause severe, uneven wear on the brake pads. Installing a new caliper with a damaged rotor and pads will lead to poor performance and noise. It's best to replace the caliper, rotor, and pads 🎬 See this front brake and caliper replacement walkthrough all at the same time for that wheel.
What tools do I need to replace my Envoy's caliper?
You will need a good socket set (including 17mm or 18mm sockets), a C-clamp or piston compressor tool, a wrench for the brake line fitting (banjo bolt), a torque wrench, jack and jack stands, and brake fluid. It's also wise to have brake cleaner and high-temperature grease for the slide pins.
Do I need to bleed the brakes after replacing a caliper?

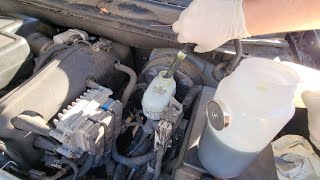

Yes, absolutely. When you disconnect the brake line from the old caliper, air enters the system. You must bleed the brakes to remove all the air and ensure a firm pedal and proper braking function. Start with the caliper furthest from the master cylinder 🎬 Watch: How to bleed and flush Envoy brakes and work your way closer.

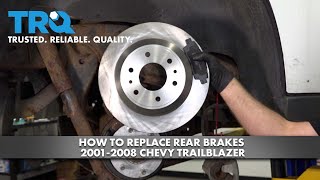

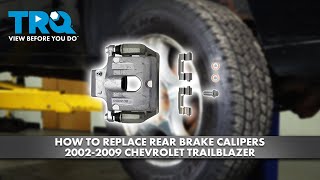

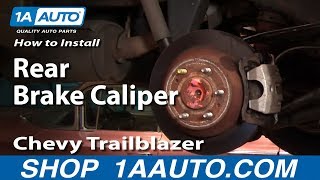

Helpful Videos
Technical Specifications
The GMC Envoy uses floating calipers with dual pistons on the front and single pistons on the rear. The front calipers on some models originally came with phenolic pistons, which are prone to swelling. Replacement calipers often feature steel or aluminum pistons for better durability.
