GMC Envoy Engine Intake Manifold Gasket Set Guide (2002-2009)
Fixing a rough idle, coolant loss, or check engine light on your Envoy? Your intake manifold gasket is a likely culprit.
- Symptoms often include a rough idle and a 'System Too Lean' (P0171) check engine light code.
- For 5.3L V8s, choose an aftermarket gasket set from a brand like Fel-Pro with a metal carrier, as it's a significant upgrade over the failure-prone OEM plastic design.
- The 4.2L I6 replacement is challenging due to bolt access; consider replacing the valve cover gasket at the same time.
- This is an advanced DIY job; a professional mechanic is recommended if you are not experienced.
Is Your Envoy's Intake Manifold Gasket Failing?
A leaking intake manifold gasket is a common issue on many vehicles, including the 2002-2009 GMC Envoy. The constant expansion and contraction from engine heat can cause the original gaskets to become brittle and fail over time. For the 5.3L V8, the original plastic-carrier gaskets are known to degrade from heat and exposure to modern ethanol-blended fuels. This can lead to vacuum leaks, coolant leaks, or both.
Symptoms of a Bad Intake Manifold Gasket
A failing gasket can show several signs. Some are minor annoyances, while others can point to a serious problem that needs immediate attention.
- Rough Idle & Misfires: This is the most common symptom. A vacuum leak lets extra, unmeasured air into the engine, throwing off the air-fuel mixture. This can cause a shaky idle, hesitation, and may trigger 🎬 Watch this video to see how a bad gasket causes rough idling. a Check Engine Light with codes like P0171 (System Too Lean), P0174 (System Too Lean Bank 2, V8 only), and P0300 (Random/Multiple Cylinder Misfire).
- Coolant Loss or Overheating: If you notice a sweet smell of antifreeze around your engine or have to top off your coolant frequently, the gasket may be leaking coolant. In some cases, this can lead to engine overheating.
- Visible Leaks: You might see coolant pooling on top of the engine, near the intake manifold.
- Reduced Engine Performance & Fuel Economy: A vacuum leak forces the engine's computer to try and compensate, often leading to worse performance and more trips to the gas station.
Engine-Specific Notes

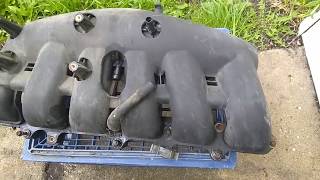

For the 4.2L I6 (LL8): Gasket failure is a known issue. The job is more involved because the intake manifold is on the driver's side, and accessing all the bolts can be difficult, with one hidden behind the alternator. 🎬 See these helpful tips for removing the 4.2L intake manifold. Many owners replace the valve cover gasket at the same time, as it also requires removing the intake manifold.
For the 5.3L V8 (Vortec): Intake gasket leaks are a common problem, especially on the earlier Gen III engines (pre-2007). The original plastic gaskets are a known weak point.
Choosing the Right Aftermarket Gasket Set
When replacing your intake manifold gasket, you have a choice between OEM and aftermarket brands. For this specific repair, many aftermarket brands offer superior designs compared to the original factory parts.
Brand Quality Tiers

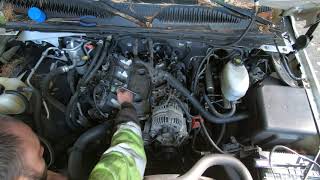

- Best Tier (Recommended Upgrade): Fel-Pro. Fel-Pro is widely regarded by mechanics and DIYers as the top choice for this repair. For the 5.3L V8, their PermaDryPlus gaskets (like set MS98016T) use a steel carrier instead of the failure-prone plastic original, 🎬 Watch a mechanic perform this 5.3L intake gasket and sensor upgrade. offering much better resistance to heat and corrosion. They also often include improved seals and any necessary RTV sealant.
- Good Tier (OEM Equivalent): ACDelco, Victor Reinz, Mahle. ACDelco is the original GM parts supplier, and their updated designs are a reliable choice. Victor Reinz and Mahle are also trusted OEM suppliers that provide quality gaskets that meet or exceed factory specifications. If you prefer to stick with an OEM-style part, these brands are a safe bet.
- Standard Tier: Apex, Beck Arnley. These brands offer a cost-effective solution for a budget-conscious repair. They meet basic requirements and are a viable option, though they may not feature the advanced materials or designs of the higher-tier brands.
Cost to Replace GMC Envoy Intake Manifold Gaskets
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $12 - $145 |
| New OEM Gasket Set | $80 - $200 |
| Shop Labor Cost | $280 - $750+ |
| Total Professional Replacement | $350 - $950+ |
Costs are estimates and can vary significantly based on your location, engine type (V8 is typically more expensive), and the specific repair shop.
Frequently Asked Questions
Is an aftermarket gasket better than the OEM one for my Envoy?
In many cases, yes. Brands like Fel-Pro have specifically engineered their gaskets with improved materials, such as steel carriers for the V8, to fix the weak points of the original plastic design. This makes them a more durable, long-term solution.
Can I replace the intake manifold gasket myself?
This is considered an advanced DIY job. It requires a good set of tools, including a torque wrench, and careful attention to detail. For the 4.2L engine, accessing all the bolts can be particularly challenging. If you are not comfortable with draining fluids, disconnecting fuel lines, and following specific torque sequences, it's best to leave this job to a professional mechanic.
Are there any recalls for the intake manifold gasket?
No, there have been no specific recalls issued by the NHTSA for the intake manifold gaskets on the 2002-2009 GMC Envoy. This is considered a maintenance and repair item that fails due to age and wear.
Do I need to use sealant on the new gaskets?
Most modern intake manifold gaskets are designed to be installed dry. However, a small amount of RTV sealant is typically required at the corners where the engine block meets the cylinder heads on V8 engines. Always follow the instructions included with your specific gasket set.
Helpful Videos
Technical Specifications

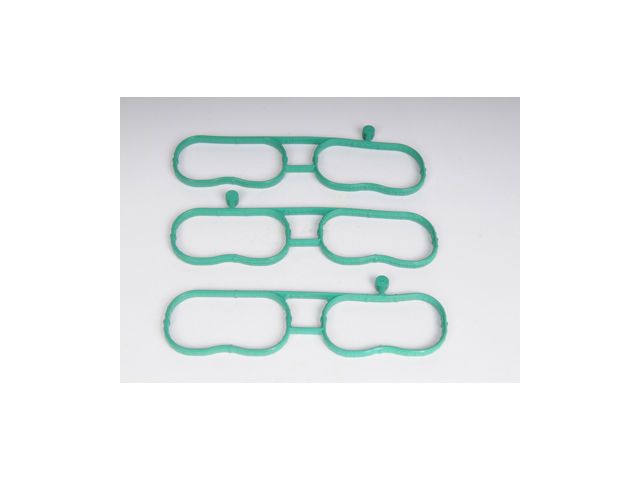

OEM Part Numbers: 89017871 89060413
Gasket sets vary by engine (4.2L I6 vs 5.3L V8). V8 kits often include two manifold gaskets and may include RTV sealant. Aftermarket kits for the V8 may feature an upgraded steel carrier design.
