A Guide to Replacing Fuel Injectors on the 2002-2009 GMC Envoy
If your Envoy's engine is running rough, misfiring, or losing power, a bad fuel injector could be the problem.
- For the common 4.2L I6 engine, the intake manifold must be removed, making this a difficult and labor-intensive job.
- It is strongly recommended to replace all six (or eight for V8) injectors as a complete set to ensure balanced engine performance.
- ACDelco and Delphi are OEM-quality brands that guarantee proper fit and function; Standard Ignition is a reliable aftermarket alternative.
- If you have a 2002-2004 model and smell fuel, investigate the fuel tank inlet check valve special coverage program before assuming it's the injectors.
Is Your Envoy's Engine Running Rough? It Could Be the Fuel Injectors
Fuel injectors are built to last a long time, but they can fail from getting clogged with fuel deposits, carbon buildup, or from simple electronic failure. When one or more injectors go bad, your engine can't run properly. The most common signs are a rough, shaky idle, engine misfires that feel like a stutter or vibration, and a noticeable loss of power when you accelerate. 🎬 Watch this diagnostic guide to identify a misfiring engine. You will almost certainly get a Check Engine Light, which may be solid or flashing. A flashing light indicates a severe misfire that can quickly damage other expensive parts, like the catalytic converter.
Warning: Fuel Smell or Flashing Check Engine Light?
If you smell raw gasoline or if your Check Engine Light is flashing, you should stop driving the vehicle as soon as it is safe to do so. A fuel leak is a serious fire hazard, and a flashing light means your engine is misfiring badly enough to cause permanent damage.
Known Issues for 2002-2009 GMC Envoy
While there are no direct recalls for faulty fuel injectors on this generation of Envoy, there is an important Special Coverage bulletin for 2002-2004 models. Some of these vehicles have a fuel tank inlet check valve that can crack. This can cause a fuel odor and a Check Engine light, symptoms that are easily mistaken for a bad fuel injector. Before replacing your injectors, it's worth checking if your vehicle is covered under this program (GM Special Coverage 15795) if you have a fuel smell, as the repair would be done at no charge.
Choosing the Right Aftermarket Fuel Injector
When shopping for new fuel injectors, it's highly recommended to replace all of them at once. Replacing only one can create an imbalance, as the new injector will flow differently than the old, worn ones. This can lead to continued rough running. Here’s a breakdown of the available brands:
- Tier 1: OEM Quality (ACDelco, Delphi)
For your Envoy, Delphi was the original equipment manufacturer for many parts, and ACDelco is GM's official parts brand. Often, the part inside an ACDelco box is the same Delphi part the truck was built with. Choosing either of these brands guarantees a perfect fit and performance identical to the original parts. They are the safest and most reliable choice. - Tier 2: Quality Aftermarket (Standard Ignition)
Standard Ignition, also known as Standard Motor Products (SMP), is a respected aftermarket manufacturer. Their injectors are 100% new, not remanufactured, and are rigorously tested. They often use quality materials like stainless steel internal components for durability. Owners report they are a solid, reliable alternative to OEM parts. - Tier 3: Budget-Friendly (GBR Fuel Injection)

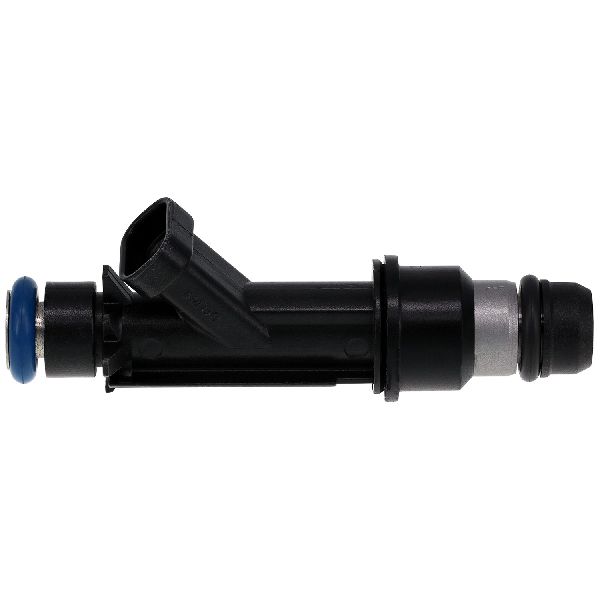

GBR, or GB Remanufacturing, specializes in professionally cleaning, testing, and rebuilding original OEM injector cores. They replace wearable parts like filters and O-rings. This is the most cost-effective option, but because they are remanufactured, there is a slightly higher chance of an issue compared to a brand-new part.
Cost of Replacing Fuel Injectors on a 2002-2009 GMC Envoy
The cost can vary significantly based on your engine. The 4.2L inline-6 is a much more difficult job than the 5.3L V8 because the intake manifold must be removed to access the fuel rail. 🎬 See this step-by-step fuel injector replacement for the 4.2L engine. This adds several hours to the labor time.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Injectors (Set of 6 or 8) | $56.80 - $154.23 (per part) |
| New OEM Injectors (Set of 6 or 8) | $200 - $450+ (for the set) |
| Shop Labor (4.2L Engine) | $480 - $720 |
| Total Professional Replacement (Aftermarket Parts) | $820 - $1650+ |
Pro Tip: Replacing the Intake Manifold Gaskets
If you have the 4.2L engine, the intake manifold must be removed. This is the perfect time to replace the intake manifold gaskets. These gaskets can become hard and brittle over time, causing vacuum leaks that also lead to rough idling 🎬 Watch how to replace intake gaskets to fix a rough idle. and performance problems.
Frequently Asked Questions (FAQ)
Is replacing the fuel injectors a DIY job?
For the 5.3L V8, an experienced DIYer can often do the job in a few hours. For the more common 4.2L I6, it is a difficult job (4 out of 5 difficulty) because the intake manifold has to be removed. This requires more time, tools, and mechanical skill. If you are not comfortable with a complex job, it's best to leave this to a professional.
Do I need to program new fuel injectors?
No, the fuel injectors on the 2002-2009 GMC Envoy do not require any special programming. They are a direct plug-and-play replacement. The vehicle's computer will adapt to the new injectors after you reconnect the battery and run the engine.
Should I clean my old injectors instead of replacing them?
While professional off-the-car ultrasonic cleaning can sometimes restore a clogged injector, it cannot fix an injector that has failed electronically or has an internal mechanical problem. Given the high labor cost to access the injectors on the 4.2L engine, it is much safer and more cost-effective in the long run to install a new set rather than risk having to do the job twice.
What are the most common ordering mistakes?
The biggest mistake is ordering parts without confirming your engine size. The 4.2L I6 engine requires a set of six injectors, while the 5.3L V8 requires eight. The injectors themselves are different and are not interchangeable. Always verify your engine before purchasing parts.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25313185 12580681
This vehicle uses a multi-port fuel injection (MFI) system. The 4.2L I6 engine requires 6 injectors and the 5.3L V8 requires 8. Part numbers can vary by model year, so always verify fitment.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
